DS-1618ZJ
DS-1618ZJ Short Arm Wall Mount Bracket Features: Aluminum alloy material with surface spray treatment Exquisite and small design Design of safety rope for more convenient installation Dimension: Order Model: DS-1618ZJ Parameter: Model Parameter DS-1618ZJ Short Arm Wall Mount Bracket Appearance Hik White Range of Application For speed dome wall mount Material Aluminum Alloy Dimension 110x145x189mm Weight 550g Notice: The bracket should be installed on plat wall Load capacity of pole should be more than 3 times the weight of camera and bracket Load capacity of clamp is 30KG Installation Step: ① Choose appropriate wall for bracket installation ② Thread the cable ③ Tie the safety rope to hook and thread the cable A: Safety rope B: Hook ④ Install the speed dome and screw up the set screw; installation complete C: Set screw Note: The actual ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-DM4255W
©2006 – 2017 by HIKVISION. All rights reserved. 1 DS-DM4255W 42’’/43’’/49’/55’’’ Monitor Display Wall-mounted Bracket Key Features Wall-mounted Bracket for 42’’/43’’/49’/55’’’ Monitor(Suitable model shown in the end) Solid Steel structure, Prevent screen bend or twist Cold-rolled Steel Plate(SPCC) Specification Name DS-DM4255W Appearance Hikvision Black Material Cold-rolled Steel Plate(SPCC) Dimension(WxH) 450mmx420mm Weight 4.5 kg Order Model and Code: DS-DM4255W | 190115893 ©2006 – 2017 by HIKVISION. All rights reserved. 2 Dimensions Suitable Monitor Model DS-D5042FL DS-D5043FC DS-D5049FL DS-D5055FL DS-D5055UL...
Warranty: 36 mon.
Datasheet
Availability: 0

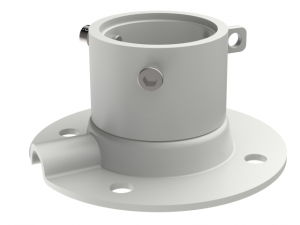

DS-1668ZJ
DS-1668ZJ(20) Pendant Mounting Bracket for PanoVu Feature Zinc-coated steel with surface spray treatment The hook for safety rope facilitates camera’s installation Dimension 2 0 0 m m ( 7 . 8 7 " ) 4 0 m m ( 1 . 5 7 " ) 1 8 m m ( 0 . 7 1 " ) Φ 4 7 . 4 m m ( 1 . 8 7 " ) 4 - Φ 1 0 m m ( 0 . 3 9 " ) Φ 1 1 5 m m ( 4 . 5 3 " ) Φ 8 9 . 5 m m ( 3 . 5 2 " ) Φ 7 m m ( 0 . 2 8 " ) 1 0 m m ( 0 . 3 9 " ) Available Model DS-1668ZJ(20) Parameter Model Parameters DS-1668ZJ(20) Pendant Mounting Bracket for PanoVu Appearance Hikvision White Material Steel Dimension Φ 115 mm x 200 mm (4.53" x 7. 8...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 6-10
DS-2FA1205-D8(UK)
DS -2FA1205-D8 Switching Mode Power Supply Feature 12 VDC/1 A per channel Over current/short circuit/over voltage protection Complies with certification standards of information technology products; good EMC performance Compact size; applicable to cameras Dimension Available Model DS -2FA1205-D8 Parameter Model Parameters DS -2FA1205 -D8 Switching Mode Power Supply Appearance Gray Input 185 to 240 VAC, 50 Hz to 60 Hz Output 12 VDC/1 A per channel Cable Length Compensation Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC Ripple & Noise 0.15 Vp -p (15 0 mV) AC Input Connector C8 DC Output Connector DC Plug: grid terminal LED Indicator Green Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing) Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing) Dimension 130 mm x 94 mm x 34 mm (5.11" x 3.70" x 1.34")...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-DM4303B
DS-DM4303B LCD Monitor Base Bracket Solid steel structure, preventing screen bending or twisting Cold-rolled steel plate (SPCC) Quick and easy installation Specification Model DS-DM4303B Color Black Material Cold-rolled steel plate (SPCC) Dimension (W x H x D) 567.41 mm x 563.1 mm x 194.19mm (22.34'' x 22.17'' x 7.65'') VESA 400 (H) mm x 300 (V) mm Net Weight 3.6 ± 0.5 Kg (7.94 ± 1.1 lb) Gross Weight 4 ± 0.5 Kg (8.82 ± 1.1 lb) Dimension Available Model DS-DM4303B...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-3E0505-E
DS-3E0505-E 5-Port Gigabit Unmanaged Ethernet Switch DS-3E0505-E switch is a layer 2 Gigabit Ethernet switch, providing 5 x Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices. Feature and Function • 5 x Gigabit Ethernet ports. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 1000 Mbps network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. Specification Model DS-3E0505-E Network parameters Port number 5 x Gigabit Ethernet ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching MAC address table 2 K Switching capacity 10 Gbps Packet forwarding rate 7.44 Mpps Internal cach...
Warranty: 36 mon.
Datasheet
Availability: 6-10
HK-SFP-1.25G-1310-DF-MM
Single Power Supply 3.3V Small Form Factor Pluggable (SFP) MSA Compatible Duplex LC Connector Hot Pluggable Capability Compliant With ROHS Standard Cost effective SFP solution, enables higher port densities and greater bandwidth Support 1.25G Ethernet Features and Functions HK-SFP-1.25G Series SFP Module Item HK-SFP-1.25G-1310-DF-MM Fiber type MMF, duplex fiber, 62.5/125um Connector LC Date Rate 1250 Mbps Connector quantity 2 Distance 0~1km Wavelength Tx1310nm/Rx1310nm TX Power -9~-3dBm RX Sens(Max.) -20dBm Operating temperature 0~70˚C Storage temperature -40～85˚C Relative humidity 30～80% Power supply voltage DC 3.3V Specifications Typical applications Mechanical (mm)...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-UTF16GI-L2
© 2015 by HIKVISION. All rights reserved. Hikvision L Series Micro SD (TF) Card for Surveillance Introduction Hikvision L Series Micro SD (TF) Card for Surveillance is specially designed for video surveillance recording with a Class 10 read-write speed. It adopts TLC NAND with high compatibility and low price, widely applicable to low video recording intensity scenes with lite storage, standby storage, etc. or scenes with simple operating environment. Available Models DS-UTF16GI-L1 DS-UTF32GI-L1 DS-UTF64GI-L1 DS-UTF128GI-L1 Main Features High cost performance Lower price when compared to the card with the same TLC NAND, fully satisfying requirement for lite storage, which is the storage used for low intensity video recording and simple scenes; High compatibility Better compatibility with more products. It can be optimized according to Hikvision storage system. Better effect when used with Hikvision cameras; Ultrastrong adaptability Waterproof, shock proof, X-ray proof, and temperature proof to perform normally in various harsh environments. ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0

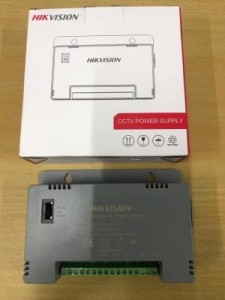

DS-2FA1205-D8(EUR)
DS -2FA1205-D8 Switching Mode Power Supply Feature 12 VDC/1 A per channel Over current/short circuit/over voltage protection Complies with certification standards of information technology products; good EMC performance Compact size; applicable to cameras Dimension Available Model DS -2FA1205-D8 Parameter Model Parameters DS -2FA1205 -D8 Switching Mode Power Supply Appearance Gray Input 185 to 240 VAC, 50 Hz to 60 Hz Output 12 VDC/1 A per channel Cable Length Compensation Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC Ripple & Noise 0.15 Vp -p (15 0 mV) AC Input Connector C8 DC Output Connector DC Plug: grid terminal LED Indicator Green Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing) Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing) Dimension 130 mm x 94 mm x 34 mm (5.11" x 3.70" x 1.34")...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1227ZJ-PT6
Datasheet 1 DS-1227ZJ Model DS-1227ZJ Indoor dome flush mount Appearance Feature Suitable for DS-2CD783F-E(I), DS-2CD754F-E(I), DS-2CD763NF-E, DS-2CD764FWD-E(I), DS-2CD793NFWD-E(I) and DS-2CD733F-E, etc., dome camera with the same structure Construction Sheet metal and ABS plastic Weight 540g(1.19lbs) Dimensions Φ210.0x84.5mm (Φ8.27"x3.33") Bore Size Unit: mm...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1240ZJ
DS-1240ZJ Inclined Ceiling Mounting Bracket for Dome Camera Feature Aluminum alloy material with surface spray treatment Waterproof design Dimension 63 mm (2.48") Φ 145 mm (5.71 ") 46 mm (1.81") 85 .3 mm (3 .36 ") 83.5 mm (3.29") 46 mm (1.81 ") Available Model DS-1240ZJ Parameter Model Parameters DS-1240ZJ Inclined Ceiling Mounting Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension 145 mm x 144.5 mm x 63 mm (5.71" x 5.69" x 2.48") Weight 440 g (0.97 lb.) Note The bracket should be installed on the flat surface. Waterproof rubber is necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the dome camera and the bracket. The bracket’s maximum load capacity is 3 KG (6.6 lb.)....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1241ZJ
DS-1241ZJ In-ceiling Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Design of cap is for convenient wiring Dimension: Order Model: DS-1241ZJ Parameter: Model Parameters DS-1241ZJ In-ceiling Mounting Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ210x26.8mm Weight 260g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CC51xxP(N)-VP series DS-2CC51xxP(N)-VPIR series DS-2CC51xxP(N)-VPIRH series DS-2CE555F5P(N)-(A)VPIR3 DS-2CE56D5T-(A)VPIR3 DS-2CE56C5T-(A)VPIR3 Note: The actual dome camera may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1260ZJ(Black)
DS-1260ZJ Junction Box for Bullet Camera Features: Aluminum alloy material with surface spray treatment Dimension: Order Model: DS-1260ZJ Parameter: DS-1260ZJ Model Parameters Junction Box for Bullet Camera AppearanceHikvision White MaterialAluminum Alloy DimensionΦ88.5 mm Weight251g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1280ZJ-DM46
DS-1280ZJ-DM46 Junction Box Feature Aluminum alloy material with surface spray treatment Supports bottom outlet, and side outlet Applies to both indoor conditions, and outdoor conditions Dimension 37.22 mm (1.47") 150 .74 mm (5 .93 " ) 120 °Ø 83.5 mm (Ø 3.29") Available Model DS-1280ZJ-DM46 Parameter Model Parameters DS-1280ZJ-DM46 Junction Box Appearance Hikvision White Material Aluminum Alloy Dimension Ø 120 mm x 37.2 mm (Ø 4.72" x 1.46") Weight 250 g (0.55 lb.) Note The junction box should be installed on the flat surface. Waterproof rubber is necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the junction box. The junction box’s maximum load capacity is 4.5 kg (9.92 lb.)....
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-1280ZJ-DM46(BLACK)
DS-1280ZJ-DM46 Junction Box Feature Aluminum alloy material with surface spray treatment Supports bottom outlet, and side outlet Applies to both indoor conditions, and outdoor conditions Dimension 37.22 mm (1.47") 150 .74 mm (5 .93 " ) 120 °Ø 83.5 mm (Ø 3.29") Available Model DS-1280ZJ-DM46 Parameter Model Parameters DS-1280ZJ-DM46 Junction Box Appearance Hikvision White Material Aluminum Alloy Dimension Ø 120 mm x 37.2 mm (Ø 4.72" x 1.46") Weight 250 g (0.55 lb.) Note The junction box should be installed on the flat surface. Waterproof rubber is necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the junction box. The junction box’s maximum load capacity is 4.5 kg (9.92 lb.)....
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-1280ZJ-SD11
DS-1280ZJ-SD11 Junction Box for 4-inch PTZ Camera Feature Aluminum alloy material with surface spray treatment Side outlet and bottom outlet Waterproof design Dimension 8 3 . 5 m m ( 3 . 3 " ) 1 8 5 . 2 m m ( 7 . 2 9 " ) 4 6 m m ( 1 . 8 " ) Φ 157.7 mm (6.2") 3 9 . 7 m m ( 1 . 6 " ) Φ 88.5 mm (3.5") 4-Φ 4.5 mm (0.18") 3 0 ° Available Model DS-1280ZJ-SD11 Parameter Model Parameters DS-1280ZJ-SD11 Junction Box for 4-inch PTZ Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ157.7 mm x 39.7 mm (6.2" x 1.6") Weight 450 g (0.99 lb.) Note The junction box should be installed on the flat surface. The waterproof rubber is necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket. The maximum load capacity of the junction box is 5 Kg (11 lb....
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-1663ZJ
DS-1663ZJ Ceiling Mounting Bracket Indoor/Outdoor Features: Aluminum alloy material with surface spray treatment General design for indoor/outdoor Design of cable entrance hole Complementary rubber blanket pad for waterproofness Dimension: Order model: DS-1663ZJ Parameters: Model Parameter DS-1663ZJ Pendent Mounting Bracket In/Outdoor Color Hik white Feature Suitable for speed dome ceiling mount (not suitable for DS-2AE-714） Material Aluminum alloy Dimension 116.5x57mm Weight 380g Notice: The bracket should be installed on the flat surface of a wall The wall must be capable of supporting more than 3 times the total load of the camera and the mount. The maximum load capacity of the mount is 30KG Installation steps: ① Choose the appropriate wall to mount the ceiling plate, ② Fix adaptor to ceiling plate and rubber blanket should be used when assembling outdoors A: Waterproof rubber pad ...
Warranty: 36 mon.
Datasheet
Availability: 501-1000

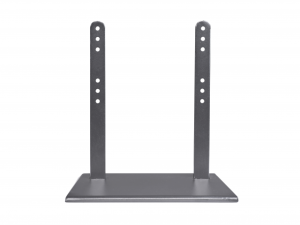

DS-DM5502B
DS-DM5502B LCD Monitor Base Bracket Solid steel structure, preventing screen bending or twisting Cold-rolled steel plate (SPCC) Quick and easy installation Specification Model DS-DM5502B Color Black Material Cold-rolled steel plate (SPCC) Dimension (W x H x D) 693.41 mm x 555.8 mm x 194.19mm (27.3'' x 21.88'' x 7.65'') VESA 300 (H) mm x 200 (V) mm Net Weight 4.8 ± 0.5 Kg (10.58 ± 1.1 lb) Gross Weight 5.2 ± 0.5 Kg (11.46 ± 1.1 lb) Dimension Available Model DS-DM5502B...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
