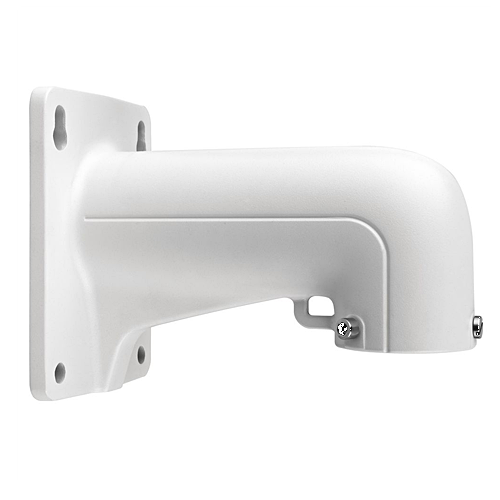

DS-1618ZJ

DS-1618ZJ  Short Arm Wall Mount Bracket    Features:   Aluminum alloy material with surface spray treatment   Exquisite and small design   Design of safety rope for more convenient installation  Dimension:              Order Model:  DS-1618ZJ  Parameter:  Model  Parameter  DS-1618ZJ  Short Arm Wall Mount Bracket  Appearance Hik White  Range of  Application  For speed dome wall mount  Material Aluminum Alloy  Dimension 110x145x189mm  Weight 550g  Notice:   The bracket should be installed on plat wall   Load capacity of pole should be more than 3 times the  weight of camera and bracket   Load capacity of clamp is 30KG    Installation Step:  ① Choose appropriate wall for bracket installation    ② Thread the cable    ③ Tie the safety rope to hook and thread the cable              A: Safety rope B: Hook  ④ Install the speed dome and screw up the set screw;  installation complete            C: Set screw  Note: The actual ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1618ZJ
Short Arm Wall Mount Bracket

Features:
 Aluminum alloy material with surface spray treatment
 Exquisite and small design
 Design of safety rope for more convenient installation
Dimension:






Order Model:
DS-1618ZJ
Parameter:
Model
Parameter
DS-1618ZJ
Short Arm Wall Mount Bracket
Appearance Hik White
Range of
Application
For speed dome wall mount
Material Aluminum Alloy
Dimension 110x145x189mm
Weight 550g
Notice:
 The bracket should be installed on plat wall
 Load capacity of pole should be more than 3 times the
weight of camera and bracket
 Load capacity of clamp is 30KG

Installation Step:
① Choose appropriate wall for bracket installation

② Thread the cable

③ Tie the safety rope to hook and thread the cable






A: Safety rope B: Hook
④ Install the speed dome and screw up the set screw;
installation complete





C: Set screw
Note: The actual bracket may vary from the picture above.
Unit: mm



A
B

C
