DS-KABH6320-T
DS-KABH6320-T Video Intercom Table Bracket Specifications ModelDS-KABH6320-T MaterialSUS430, silica gel Working temperature-10 °C to +55 °C (14 °F to 131 °F) Working humidity10% to 90% Dimension122 x 86 x 64 mm (4.80" x 3.39" x 2.52") Dimension Available Model DS-KABH6320-T...
Warranty: 24 mon.
Datasheet
Availability: 51-100
DS-KAB21-H
DS-KAB21-H Indoor Station Table Stand Features and Notes Fashionable metal bracket Convenient design available for indoor station Stable and solid Available Model DS-KAB21-H Specifications Parameter Model DS-KAB21-H Material Stainless Steel Working temperature -10° C to + 55° C (14° F to 131° F) Working humidity 10% to 90% Dimension (L x W x H) 131 mm x 102 mm x 100 mm...
Warning! Product withdrawn from production!
Warranty: 24 mon.
Datasheet
Availability: 0
DS-3E0508D-E
DS-3E0508D-E 10/100/1000 Mbps Ethernet Switch * DS-3E0508D-E: 8 x 10/100/1000 Mbps adaptive Ethernet ports * Support ADI/ADIX * Store-and-forward switching * Support MAC address auto-learning and aging * Simple and mini exquisite body * Support desktop and wall-mounting * Plug & play, and easy to use Feature and Function DS-3E0508D-E provides 8 x 10/100/1000 Mbps Ethernet ports which support line speed forwarding. With simple and mini exquisite body, the switch is plug and play and easy to use, suitable for home, school, dormitory, office, small monitoring and other simple network environments. Model DS-3E0508D-E Network parameters Port number 8 Port type 10/100/1000 Mbps RJ45 ports Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Forwarding mode Store and forward MAC address table 4 K Switching capacity 16 Gbps Packet forwarding rate 11.904 Mpps General Shell ABS Weight 0.065 kg Dimensions (L x H x D) 142 x 90 x 23 mm Operating temperature 0°C~40°C Storage temperature -40°C~70°C Operating humidity 10%~90% RH non-condensing Storage humidity 5...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-DM4304B
DS-DM4304B LCD Monitor Base Bracket Solid steel structure, preventing screen bending or twisting Cold-rolled steel plate (SPCC) Quick and easy installation Specification Model DS-DM4304B Color Black Material Cold-rolled steel plate (SPCC) Dimension (W x H x D) 387.41 mm x 475 mm x 194.19mm (15.25'' x 18.7'' x 7.65'') VESA 200 (H) mm x 200 (V) mm Net Weight 3.6 ± 0.5 Kg (7.94 ± 1.1 lb) Gross Weight 4 ± 0.5 Kg (8.82 ± 1.1 lb) Dimension Available Model DS-DM4304B...
Warranty: 36 mon.
Datasheet
Availability: 0
HS-TF-L2I/32G/No Package
L2 Series Video Surveillance Micro SD (TF) Card Introduction Hikvision L2 series Micro SD (TF) card is specially designed for video surveillance industry. It provides Class 10 R/W speed, adopts TLC NAND with high compatibility and low price, and is mainly applicable to low recording intensity scenes or simple operating scenes like lite storage, standby storage, etc. Available Models HS-TF-L2I/16G, HS-TF-L2I/32G, HS-TF-L2I/64G, HS-TF-L2I/128G Features and Functions High Cost Performance Lower price compared to the cards with the same TLC NAND. Fully satisfies requirements of lite storage. High Compatibility Optimized by Hikvision storage system, it is compatible with more products than traditional SD (TF) cards. Better performance when used with Hikvision cameras. Ultra-Strong Adaptability Waterproof, shock proof, X-ray proof, and wide temperature range. Specifications Note: Performance test is performed in a specific testing environment. Any change of computer system, operation system, hardware, software, or functions will influence the test result. Model HS-TF-L2I Total c...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1232ZJ
DS-1232ZJ Cardan Joint Feature Enables the angle adjustment from -60° to 60° Applied to both indoor and outdoor conditions Dimension Φ 6.5 mm (0.26") 30 mm ( 1 .18 ") 96 mm ( 3 .78 ") 126 mm ( 4 .96 ") 6.5 mm (0.26") 103.5 mm (4.07") 83 mm ( 3 .27 ") Φ 70 mm (2.76") Φ 6.6 mm (0.26") Available Model DS-1232ZJ Parameter Model Parameters DS-1232ZJ Cardan Joint Appearance Hikvision White Material Steel Dimension 126 mm x 103.5 mm x 83 mm (4.96" x 4.07" x 3.27") Weight Approx. 760 g (1.68 lb.) Note The cardan joint should be installed on a flat surface. Waterproof rubber is necessary for the outdoor application. The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the cardan joint. The maximum load capacity of the cardan joint is 6 kg (13.23 lb.)....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1272ZJ-110
DS-1272ZJ-110 Wall Mounting Bracket for Mini Dome Camera Features: Aluminum alloy material with surface spray treatment Good feature with the hole of cable entrance Better water proof design Convenient installation with the design of cap Dimension: Order Model: DS-1272ZJ-110 Parameter: Model Parameters DS-1272ZJ-110 Wall Mounting Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension 122x120x169mm Weight 480g Notice: Pay attention to the color matching when select bracket The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Installation Step: ① Choose the appropriate wall to mount the bracket ② Remove the lower dome of the dome camera ③ Install the base to the cap, fix the screw and modify the angle of view ④ Install the transparent housing and complete ...
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-1272ZJ-110(Black)
DS-1272ZJ-110 Wall Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Exquisite cable entrance design Waterproof rubber blanket for outdoor application Convenient installation coordinating with adaptor Dimension: Order Model: DS-1272ZJ-110 Parameter: Model Parameters DS-1272ZJ-110 Wall Mounting Bracket for Dome Camera Appearance Hik White Range of Application Dome camera wall mounting Material Aluminum Alloy Dimension 120x122x169mm Weight 420g Notice: The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CC51D3S-VPIR, DS-2CC52D5S-VPIR, DS-2CD2112(D)-(I)、 DS-2CD2132(D)-(I) Installation Step: ① Choose appropriate wall to install the bracket and thread the cable ② Fix adaptor to bracket and threa...
Warranty: 36 mon.
Datasheet
Availability: 51-100
DS-1294ZJ-TRL
DS-1294ZJ-TRL Wall Mount Feature Toughened plastic with surface spray treatment Convenient installation Apply to PanoVu Mini Series Network Indoor PTZ Camera Dimension 241.5 mm (9.5" ) 8 0 m m ( 3 . 1 5" ) 1 6 1 . 1 m m ( 6 . 3 4" ) 30 mm (1.18" ) 6 0 m m ( 2 . 3 6" ) Available Model DS-1294ZJ-TRL Parameter Model Parameters DS-1294ZJ-TRL Wall Mount Appearance Hikvision White Material Plastic Dimension 161.1 mm x 241.5 mm x 80 mm (6.34" x 9.5" x 3.15" ) Weight 520 g (0.99 lb.) Note The mount should be installed on the flat surface. The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount. The mount’s maximum load capacity is 5 times of the camera. 01000010701101...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1297ZJ-ES
DS -1297ZJ -ES Pendant Mount Features Aluminum alloy with surface spray treatment Extendable length ranging from 270 mm to 400 mm (10.63" to 15.75") Applies to both indoor conditions, and outdoor conditions Dimension Φ 87 mm (3.43") 3- Φ 4.5 mm (0.18") Φ 97 mm (3 .82 ") 270 mm to 400 mm (10.63" to 15.75" ) ¼ -2 0U N C Available Model DS -1297ZJ-ES Parameter Model Parameters DS -1297ZJ-ES Pendant Mount Appearance Hikvision White Material Aluminum Alloy Dimension Φ 97 mm x 27 0 mm to 400 mm (Φ 3.82" x10.63" to 15.75") Weight 500 g (1.10 lb.) Notes The mount should be installed on the flat surface. Waterproof rubber is necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount. The maximum load capacity of the mount is 2 kg (4.4 lb.)....
Warranty: 36 mon.
Datasheet
Availability: 0

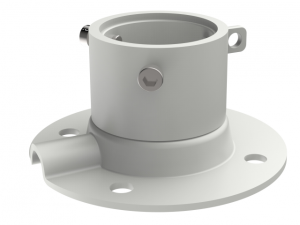

DS-1668ZJ(20)
DS-1668ZJ(20) Pendant Mounting Bracket for PanoVu Feature Zinc-coated steel with surface spray treatment The hook for safety rope facilitates camera’s installation Dimension 2 0 0 m m ( 7 . 8 7 " ) 4 0 m m ( 1 . 5 7 " ) 1 8 m m ( 0 . 7 1 " ) Φ 4 7 . 4 m m ( 1 . 8 7 " ) 4 - Φ 1 0 m m ( 0 . 3 9 " ) Φ 1 1 5 m m ( 4 . 5 3 " ) Φ 8 9 . 5 m m ( 3 . 5 2 " ) Φ 7 m m ( 0 . 2 8 " ) 1 0 m m ( 0 . 3 9 " ) Available Model DS-1668ZJ(20) Parameter Model Parameters DS-1668ZJ(20) Pendant Mounting Bracket for PanoVu Appearance Hikvision White Material Steel Dimension Φ 115 mm x 200 mm (4.53" x 7. 8...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1671ZJ-SD11
Datasheet 1 DS-1671ZJ Model DS-1671ZJ Indoor dome flush mount Appearance Feature Suitable for DS-2AF1-401X and DS-2DF1-401H, etc., dome camera with the same structure Construction Sheet metal and ABS plastic Weight 500g(1.1lbs) Dimensions Φ194x94.3mm (Φ7.64” x3.71’’) Bore Size Unit: mm...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-K4H250-U
www.hikvision.com 273 PTZ CAMERA ANALOG CAMERA CARD NETWORK STORAGE TRANSMISSION, CONTROL AND DISPLAY ACCESS CONTROL INTRUSION ATM DVR NVR DVR NETWORK CAMERA VIDEO INTERCOM DS-K4H250-LZ/U Brackets for Magnetic Lock • The LZ-bracket adopts aldural material with the surface sandblast; • It is suitable for in-swing doors; • The door opens towards inside at the angle of 90°; • The bracket is suitable for magnetic lock of 300kg series; • The shell is hard anodizing electroplating operated; • The weight of the bracket is 0.75kg (1.58lb); • The dimension(LxWxH) of L-bracket is 250x47x28.5mm (9.84x1.85x1.12”); • The dimension (LxWxH) of Z-bracket is 180x50x50mm (7.09x1.97x1.97”) (ABK-280ZL). • The U-bracket adopts aldural material with the surface sandblast; • It is suitable for frameless glass door; • The door opens at the angle of 90°; • The U-bracket is suitable for magnetic lock of 300kg series; • The shell is hard anodizing electroplating operated; • The thickness of glass should be 10 to 15mm; • The weight of the U-bracket is 0.32kg (0.70lb); • The dimensi...
Warranty: 24 mon.
Datasheet
Availability: 0
DS-DM5504B
DS-DM5504B LCD Monitor Base Bracket Solid steel structure, preventing screen bending or twisting Cold-rolled steel plate (SPCC) Quick and easy installation Specification Model DS-DM5504B Color Black Material Cold-rolled steel plate (SPCC) Dimension (W x H x D) 587.41 mm x 550.7 mm x 194.19mm (23.13'' x 21.68'' x 7.65'') VESA 400 (H) mm x 200 (V) mm Net Weight 4.1 ± 0.5 Kg (9.04 ± 1.1 lb) Gross Weight 4.5 ± 0.5 Kg (9.92 ± 1.1 lb) Dimension Available Model DS-DM5504B...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1253ZJ-L
DS-1253ZJ-L Rain Shade for Outdoor Dome Camera Features: Water chute design for preventing rainwater from flowing to camera housing; Prevent direct sunlight and improve image quality; Rain protection and six -level windproof; Weaken the possibility of freezing; Match up with wall mount(DS-1273ZJ series) Dimension: Order Model: DS-1253ZJ-L Parameter: Model Parameters DS-1253ZJ-L Rain Shade for Outdoor Dome Camera Appearance Hikvision White Material PP+30%GF Dimension Φ225.1x98mm Weight 198g Notice: The rain shade should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and accessory. Note: The actual dome camera may vary from the picture above. □225.1*98 □33.5...
Warranty: 36 mon.
Datasheet
Availability: 51-100
DS-1294ZJ
DS-1294ZJ Wall Mount Bracket for PTZ Camera Features: Toughened plastic material with surface spray treatment Hikvision white Dimension: Order Model: DS-1294ZJ Parameter: Model Parameters DS-1294ZJ Wall Mount Bracket for PTZ Camera Appearance Hik White Material Toughened Plastic Dimension 230x80x130mm Weight 450g Notice: The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above. 223.9 125.8 80 n83.5...
Warranty: 36 mon.
Datasheet
Availability: 1-5
KPL-040F-VI(green head)
KPL-040F-VI,12V3.33A Key Features 1. DC 12V/3A Power adapter (please order power plug and adapter together) 订货型号 适配器,KPL-040F-VI,桌面型,12V3.33A,40W,Φ2.1; KPL-040F-VI,12V3.33A Specifications Model KPL-040F-VI,12V3.33A General Power 12V 3.33A...
Warranty: 36 mon.
Datasheet
Availability: 0
