DS-3E0505-E
Description

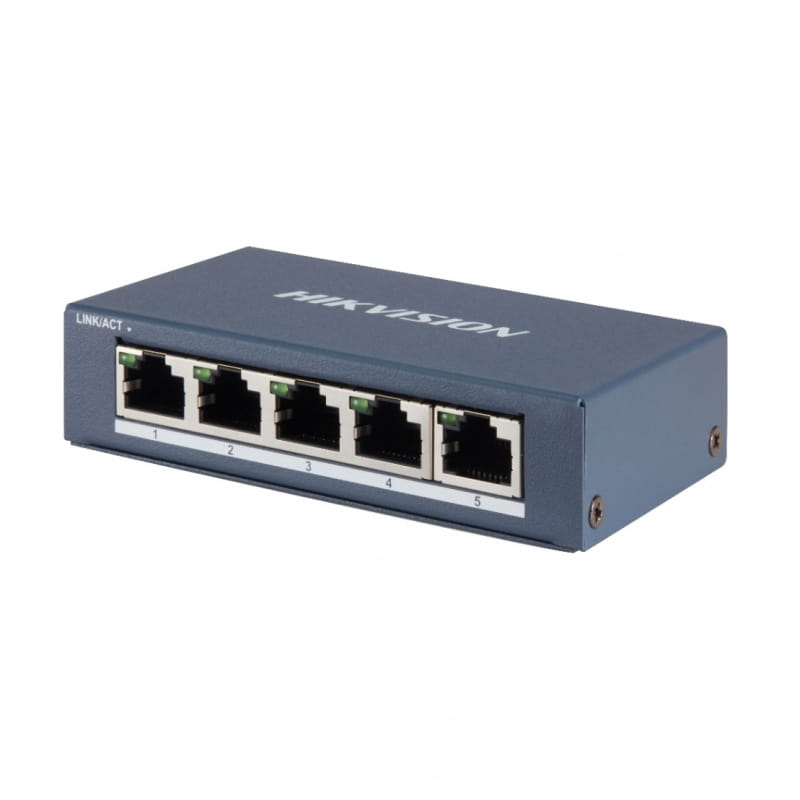

DS-3E0505-E 5-Port Gigabit Unmanaged Ethernet Switch DS-3E0505-E switch is a layer 2 Gigabit Ethernet switch, providing 5 x Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices. Feature and Function • 5 x Gigabit Ethernet ports. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 1000 Mbps network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. Specification Model DS-3E0505-E Network parameters Port number 5 x Gigabit Ethernet ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching MAC address table 2 K Switching capacity 10 Gbps Packet forwarding rate 7.44 Mpps Internal cach...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-3E0505-E
5-Port Gigabit Unmanaged Ethernet Switch
DS-3E0505-E switch is a layer 2 Gigabit Ethernet switch,
providing 5 x Gigabit Ethernet ports to upload data via the
convergence switch. The switch is reliable, easy to install
and maintain, and equipped with rapid switching functions.
With multiple access ports, the switch is applicable for
access or aggregation and upload of small-scale LAN
devices.
Feature and Function
• 5 x Gigabit Ethernet ports.
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• 1000 Mbps network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.
Specification
Model DS-3E0505-E
Network
parameters
Port number 5 x Gigabit Ethernet ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
MAC address table 2 K
Switching capacity 10 Gbps
Packet forwarding rate 7.44 Mpps
Internal cache 1 Mbits
General
Shell Metal material, fan-free design
Gross weight 0.23 kg (0.51 lb)
Net weight 0.15 kg (0.33 lb)
Dimension (L x H x D) 103 mm x 25.6 mm x 61.1 mm (4.1” x 1.0” x 2.4”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 5 VDC, 1 A
Power consumption 5 W
Physical Interface
Front panel:
Back panel:
Available Model
• DS-3E0505-E
Dimension (unit: mm)
Typical Application
