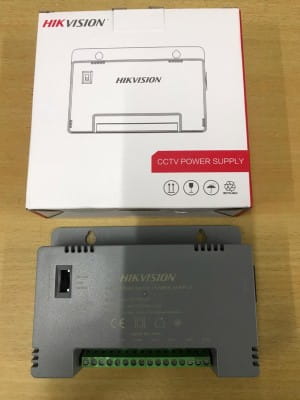

DS-2FA1205-D8(EUR)
Description
DS -2FA1205-D8 Switching Mode Power Supply Feature 12 VDC/1 A per channel Over current/short circuit/over voltage protection Complies with certification standards of information technology products; good EMC performance Compact size; applicable to cameras Dimension Available Model DS -2FA1205-D8 Parameter Model Parameters DS -2FA1205 -D8 Switching Mode Power Supply Appearance Gray Input 185 to 240 VAC, 50 Hz to 60 Hz Output 12 VDC/1 A per channel Cable Length Compensation Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC Ripple & Noise 0.15 Vp -p (15 0 mV) AC Input Connector C8 DC Output Connector DC Plug: grid terminal LED Indicator Green Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing) Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing) Dimension 130 mm x 94 mm x 34 mm (5.11" x 3.70" x 1.34")...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS -2FA1205-D8
Switching Mode Power Supply
Feature
12 VDC/1 A per channel
Over current/short circuit/over voltage protection
Complies with certification standards of information technology products; good EMC performance
Compact size; applicable to cameras
Dimension
Available Model
DS -2FA1205-D8
Parameter
Model
Parameters
DS -2FA1205 -D8
Switching Mode Power Supply
Appearance Gray
Input 185 to 240 VAC, 50 Hz to 60 Hz
Output 12 VDC/1 A per channel
Cable Length
Compensation
Normal: 12 VDC
Long: 13.5 VDC
Ex-Long: 15 VDC
Ripple & Noise 0.15 Vp -p (15 0 mV)
AC Input Connector C8
DC Output Connector DC Plug: grid terminal
LED Indicator Green
Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Dimension 130 mm x 94 mm x 34 mm (5.11" x 3.70" x 1.34")
