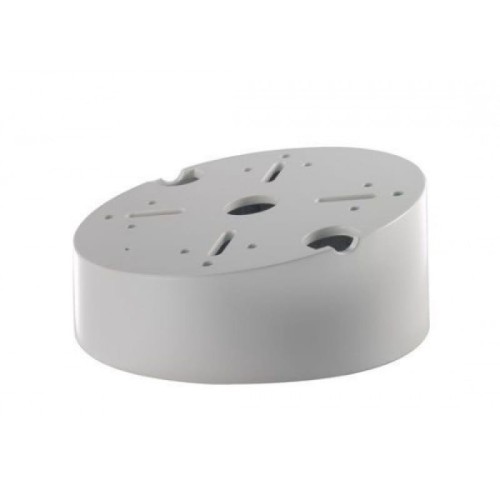

DS-1240ZJ

DS-1240ZJ  Inclined Ceiling Mounting Bracket for  Dome Camera    Feature   Aluminum alloy material with surface spray treatment   Waterproof design  Dimension  63 mm (2.48")  Φ   145  mm  (5.71  ")  46 mm  (1.81")  85  .3  mm  (3  .36  ")  83.5 mm (3.29")  46  mm  (1.81  ")      Available Model  DS-1240ZJ  Parameter  Model    Parameters  DS-1240ZJ  Inclined Ceiling Mounting Bracket for Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension 145 mm x 144.5 mm x 63 mm (5.71" x 5.69" x 2.48")  Weight 440 g (0.97 lb.)  Note   The bracket should be installed on the flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the dome camera and the  bracket.   The bracket’s maximum load capacity is 3 KG (6.6 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1240ZJ
Inclined Ceiling Mounting Bracket for
Dome Camera

Feature
 Aluminum alloy material with surface spray treatment
 Waterproof design
Dimension
63 mm (2.48")
Φ
145
mm
(5.71
")
46 mm
(1.81")
85
.3
mm
(3
.36
")
83.5 mm (3.29")
46
mm
(1.81
")


Available Model
DS-1240ZJ
Parameter
Model

Parameters
DS-1240ZJ
Inclined Ceiling Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension 145 mm x 144.5 mm x 63 mm (5.71" x 5.69" x 2.48")
Weight 440 g (0.97 lb.)
Note
 The bracket should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the dome camera and the
bracket.
 The bracket’s maximum load capacity is 3 KG (6.6 lb.).
