DS-1241ZJ

DS-1241ZJ      In-ceiling Mounting Bracket for  Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   Design of cap is for convenient wiring  Dimension:        Order Model:  DS-1241ZJ  Parameter:  Model    Parameters  DS-1241ZJ  In-ceiling Mounting Bracket for  Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ210x26.8mm  Weight 260g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG  Model Suitable:  DS-2CC51xxP(N)-VP series  DS-2CC51xxP(N)-VPIR series  DS-2CC51xxP(N)-VPIRH series  DS-2CE555F5P(N)-(A)VPIR3  DS-2CE56D5T-(A)VPIR3  DS-2CE56C5T-(A)VPIR3    Note: The actual dome camera may vary from the picture above....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

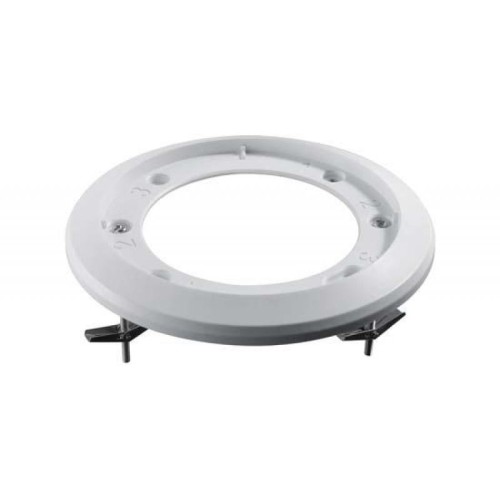

DS-1241ZJ


In-ceiling Mounting Bracket for
Dome Camera
Features:
 Aluminum alloy material with surface spray
treatment
 Design of cap is for convenient wiring
Dimension:



Order Model:
DS-1241ZJ
Parameter:
Model

Parameters
DS-1241ZJ
In-ceiling Mounting Bracket for
Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ210x26.8mm
Weight 260g
Notice:
 The bracket should be installed on flat wall
 Waterproof rubber is necessary for outdoor application
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CC51xxP(N)-VP series
DS-2CC51xxP(N)-VPIR series
DS-2CC51xxP(N)-VPIRH series
DS-2CE555F5P(N)-(A)VPIR3
DS-2CE56D5T-(A)VPIR3
DS-2CE56C5T-(A)VPIR3

Note: The actual dome camera may vary from the picture above.
