Transmission and power

GV-APOE2411 May 27, 2021  - 1 -  GV-APOE2411-V2 24-Port Gigabit Web Management PoE Switch     24‐ Port 10/100/1000BaseT(X) PoE+ with 4 SFP Uplink  Ports and 2 Combo Uplink Ports   IEEE 802.3at compliant (24 Ports at Full 15.4 W)   Web‐based configuration and management   VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link  Aggregation, LACP, Port Security, Bandwidth   PD Alive Monitor   ONVIF Discover   PoE Schedule   PoE connection for network cables up t...

Warranty: 24 mon.

Datasheet

January 25, 2019            Introduction  The GV ‐PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.  Adopting the PoE adapter enables you to mount an IP device anywhere in a building where power outlets are not available.    Specifications  PoE Standard Power over Ethernet (Max 19 W)    PoE Output (10 / 100 Out) DC 48 V, 400 mA (Max. 19 W)    Ethe...

Warranty: 36 mon.

Datasheet

GV-PA482 August 26, 2016  - 1 -  GV-PA482 High Power PoE Adapter (PoE++)        Introduction  The GV ‐PA482 is a Power over Ethernet (PoE) adapter designed to provide power to the IP camera through a single Ethernet cable.  Adopting the PoE adapter enables you to mount an IP camera anywhere in a building where power outlets are not available.    Specifications  PoE Standard High Power Over Ethernet (PoE++) / PSE    PoE Output (10 / ...

Warranty: 36 mon.

Datasheet

GV-PA903BT January 16, 2023  GV-PA903BT Gigabit BT PoE++ Adapter          Introduction  GV‐PA903BT is a Gigabit PoE (Power over Ethernet) adapter. The adapter supports the IEEE802.3af/at/bt Power over Ethernet  standard, with a maximum power output of 95 W over a single Ethernet cable. You can mount an IP camera anywhere in a building  where power outlets are scarce by using the PoE adapter.    Specifications  Port  Data in port: 1 x 10/100/1000 Mbps RJ-45 port  PoE out port: 1 x 10/100/1000 Mbps RJ-45 port  Power Source High Power Over Ethernet (Max. 95 W)  PoE Power Output DC 54V (Max. 95 W)  Ethernet Cable Length Max 100 m (328 ft) from GV-PA903BT to IP device, CAT5e, 6  Power Input AC 100V ~ 240V, 50/60 Hz  Operating Temperature  Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F )  Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F )  Humidity  Operating Humidity: 10% ~ 90% non-condensing  Storage Humidity: 5% ~ 90% non-condensing  Surge Protection ±4 kV  Dimensions (L x W x H) 170 x 100 x 40 mm (6.69” x 3.94” x 1.57”)  Weight 0.76 kg (1.68 lb)  Standard IEEE802.3af/at/bt        GV-PA903BT January 16, 2023    Dimensions

Warranty: 24 mon.

Datasheet

GV-POE0800 8-Port 802.3at PoE Switch       8 ‐ port 10/100BaseTX, PSE/Power over Ethernet Ports   IEEE 802.3at Compliant (8 Ports at Full 15.4 W)   Max. 130 W power consumption   Auto ‐MDI/MDI ‐ X   Auto ‐Negotiation   Non ‐Blocking   11" Metal Case   Up to 7 GV ‐ IP Cameras support  Introduction  GV ‐POE0800 is an 8 ‐ port 10/100BaseTX, PSE Desktop PoE Fast Ethernet Switch. The switch supports IEEE 802.3at Power over Ethernet  standard with up to 30 W per port and maximum 130 W power consumption per system. ...

Warranty: 36 mon.

Datasheet

GV-POEX0100 One-Port PoE Extender    10/100 PoE extender  PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) compliant  Extension up to 600 m (1,968.5 ft) using 5 GV ‐POEX0100  Compatible with GV ‐ IP Cameras  No additional power supply required  Introduction  GV ‐POEX0100 is a single ‐ port, 10/100 PoE extender that can extend the distance between a PoE switch and a GV ‐ IP Camera by 100 m  (328.08 ft) for every extender installed. They can be serially connected, with no additiona...

Warranty: 36 mon.

Datasheet

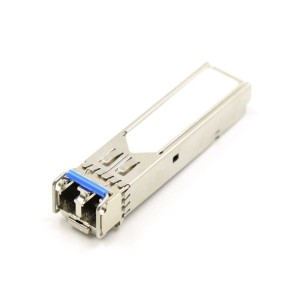

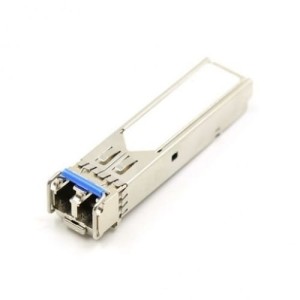

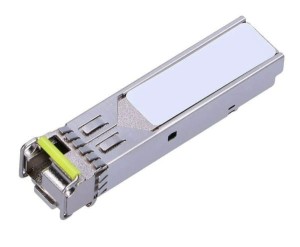

 Single Power Supply 3.3V   Small Form Factor Pluggable (SFP) MSA Compatible   Duplex LC Connector   Hot Pluggable Capability   Compliant With ROHS Standard   Cost effective SFP solution, enables higher port densities and greater bandwidth   Support 1.25G Ethernet  Features and Functions    HK-SFP-1.25G Series SFP Module              Item HK-SFP-1.25G-1310-DF-MM  Fiber type MMF, duplex fiber, 62.5/125um  Connector LC  Date Rate 1250 Mbps  Connector quantity 2  Distance 0~1km  Wavelength Tx1310nm/Rx1310nm  TX Power -9~-3dBm  RX Sens(Max.) -20dBm  Operating  temperature  0~70˚C  Storage temperature -40～85˚C  Relative humidity 30～80%  Power supply voltage DC 3.3V      Specifications    Typical applications                  Mechanical (mm)...

Warranty: 36 mon.

Datasheet

Warning! Product withdrawn from production!

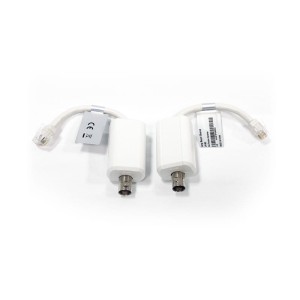

LR1002     Product Overview  LR1002 is designed to work as a type of converter from RJ45 to BNC  port, which supports long range power supply transmission via coaxial  cable. It provides one BNC coaxial port and one RJ45 port. The product  is equipped with two transmission modes which are 100Mbps and  10Mbps.  www.dahuasecurity.com   Features  · Supports IEEE802.3, IEEE802.3u standards  · Port: 1*RJ45 10/100Mbps, 1*BNC  · Supports RG59 coaxial cable: 400m/100Mbps,  1000m/10Mbps  · Supports MDI/MDIX self-adaption  · Supports long range power supply transmission via coaxial  cable  LR1002  EoC Passive Converter    Technical Specification  ModelLR1002  Function Port  1*10/100 Mbps Base-TX  1*BNC  Power Consumption<1W  Transmission Bandwidth  RG59 coaxial cable:  400m/100Mbps, 1000m/10Mbps  PoE Protocol  -  (Based on the power input from the ePoE switch)  Network StandardIEEE802.3, IEEE802.3u  Lightning Protection  Common Mode 6KV  Differential Mode 2KV  Operating Temperature-40°C-60°C  Operating Humidity0%~95%  Weight28.3g  Dimension (WxDxH)56mmx27mmx21mm      Cable Length (m)  Communication  Bandwidth (Mbps)  PoE Max Load  Capacity (...

Warranty: 36 mon.

Datasheet
