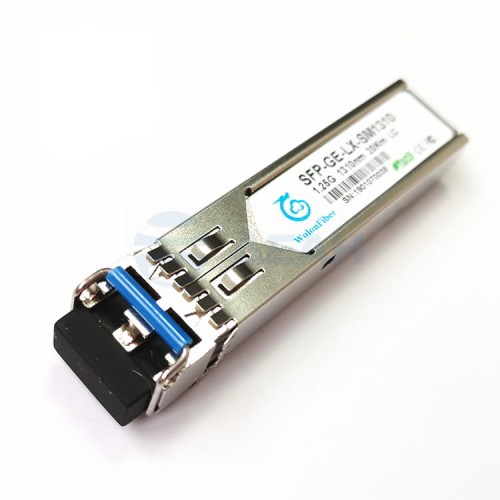

HK-SFP-1.25G-20-1310-DF
Description
Single Power Supply 3.3V Small Form Factor Pluggable (SFP) MSA Compatible Duplex LC Connector Hot Pluggable Capability Compliant With ROHS Standard Cost effective SFP solution, enables higher port densities and greater bandwidth Support 1.25G Ethernet Features and Functions HK-SFP-1.25G Series SFP Module Item HK-SFP-1.25G-20-1310-DF Fiber type SMF, duplex fiber, 9/125um Connector LC Date Rate 1250 Mbps Connector quantity 2 Distance 0~20km Wavelength Tx1310nm/Rx1310nm TX Power -6~-1dBm RX Sens(Max.) -21dBm Operating temperature 0~70˚C Storage temperature -40～85˚C Relative humidity 30～80% Power supply voltage DC 3.3V Specifications Typical applications Mechanical (mm)...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Single Power Supply 3.3V
Small Form Factor Pluggable (SFP) MSA Compatible
Duplex LC Connector
Hot Pluggable Capability
Compliant With ROHS Standard
Cost effective SFP solution, enables higher port densities and greater bandwidth
Support 1.25G Ethernet
Features and Functions
HK-SFP-1.25G Series SFP Module
Item HK-SFP-1.25G-20-1310-DF
Fiber type SMF, duplex fiber, 9/125um
Connector LC
Date Rate 1250 Mbps
Connector quantity 2
Distance 0~20km
Wavelength Tx1310nm/Rx1310nm
TX Power -6~-1dBm
RX Sens(Max.) -21dBm
Operating
temperature
0~70˚C
Storage temperature -40～85˚C
Relative humidity 30～80%
Power supply voltage DC 3.3V
Specifications
Typical applications
Mechanical (mm)
