PFM700-E
Description
Video Extender Series | PFM700-E www.dahuasecurity.com PFM700-E HDMI Extender Features * Power supply: Input voltage DC5V, only supply for transmitter. * Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference. * Transmission distance: HDMI transmission distance 60m (max.196.85ft). * Infrared function: support to transmit one-way infrared remote control signal. * Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID. * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities. * Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install. Video Extender Series | PFM700-E www.dahuasecurity.com Technical Specifications Model PFM700-E Properties Transmission Signal 1channel HDMI Transmission Distance 60m(max)(196.85ft) Video Transmission Properties Video Signal Input Interface HDMI interface Vi...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Video Extender Series | PFM700-E
www.dahuasecurity.com

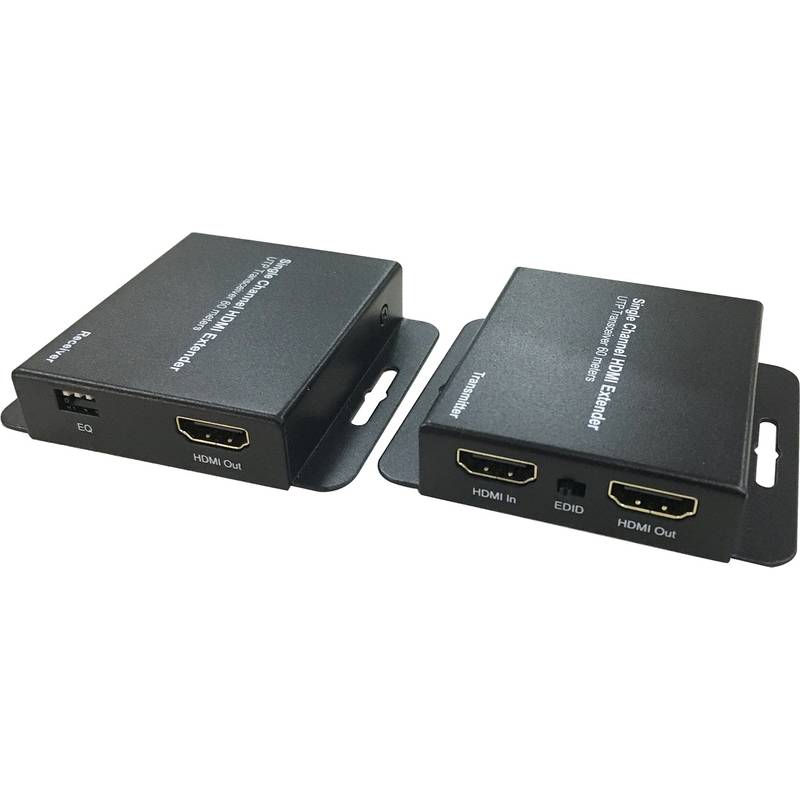

PFM700-E
HDMI Extender
Features
* Power supply: Input voltage DC5V, only supply for transmitter.
* Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
* Transmission distance: HDMI transmission distance 60m (max.196.85ft).
* Infrared function: support to transmit one-way infrared remote control signal.
* Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI
1.3; Support HDMI local loop output; Support EDID.
* Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
* Appearance structure: No need to install driver program and set network parameters, easy to use and
convenient to install.
Video Extender Series | PFM700-E
www.dahuasecurity.com
Technical Specifications
Model PFM700-E
Properties
Transmission Signal 1channel HDMI
Transmission Distance 60m(max)(196.85ft)
Video Transmission Properties
Video Signal Input Interface HDMI interface
Video Input Port HDMI interface
Twisted-pair Video Transmission Port RJ45 port
Input Voltage DC5V
Power TX<3W, RX<3W
HDCP Version Support HDCP1.2
HDMI Version Support 1.3 and lower version
Resolution Output Signal
Resolution 1080P/1080I/720P/576P/576I/480P/480I
Output Voltage 0.5~1.5Vp-p
Impedance
ESD
±6KV(contact discharge)
±8KV(air discharge)
Per: IEC61000-4-2 1995(GB/T 17626.5)
Anti-thunder
±2KV(common mode), ±1KV(differential mode)
Per: IEC61000-4-5 1995(GB/T 17626.5)
Stability
MTBF >5000h
Physical Properties
Dimension(L*W*H)
Transmitter: 79.5mmx68mmx16.5mm(port length included)
(3.13”x2.68”x0.65”)
Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”)
Shell Iron
Color Black
N.W.
Transmitter: 133g(0.29lb)
Receiver: 133g(0.29lb)
Environmental
Working Temperature -10℃~55℃(14℉~131℉)
Storage Temperature -20℃~80℃(-4℉~176℉)
Humidity 0~95%(non-condensing)
Certification
Certification CE/FCC
Video Extender Series | PFM700-E
www.dahuasecurity.com
Order Information
Type Part Number Description
Video Extender
PFM700-E
HDMI extender
_Neutral, European standard
PFM700-E
HDMI extender
_Neutral, American standard
PFM700-E
HDMI extender
_Neutral, British standard
PFM710 VGA extender
Dimensions (mm/inch)
Video Extender Series | PFM700-E
Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Application
Package Information
* HDMI Extender PFM700-E *1 (Transmitter *1, receiver *1)
* User manual *1
* Windband IR Tx cable*1
* Windband IR Rx cable *1
* DC5V1A power adapter *1
