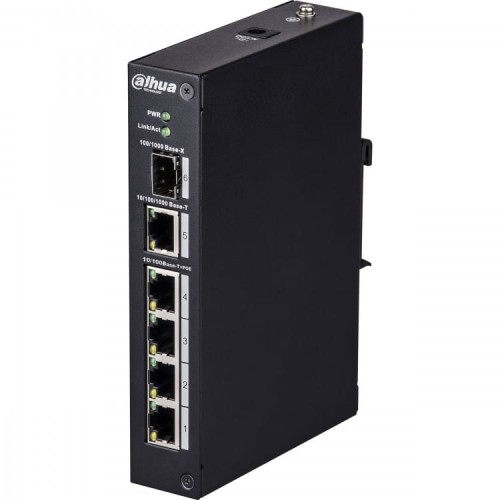

PFL2106-4ET-96

DH-PFL2106-4ET-96    www.dahuasecurity.com   Features  · Supports long distance PoE transmission up to 800m with  ePoE technology of Dahua  · Two-layer industrial PoE switch  · MAC auto study and aging, MAC address list capacity is 8K  · Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and  IEEE802.3X standards  · Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard  · Industrial wide temperature design  DH-PFL2106-4ET-96  4-Port ePoE Switch    Technical Specification  ModelDH-PFL2106-4ET-96  Ethernet Port  1*100/1000 Base-X  1*10/100/1000 Base-T  4*10/100 Base-T(PoE power supply)  PoE Power ConsumptionPort1,2,3≤30W, Port4≤60W, Total≤96W  PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE  Switching Capacity6.8Gbps  Packet Forwarding Rate3.57Mpps  Packet Buffer Memory1Mb  MAC Table Size8K  Flow ControlEnable by default  Application Humidity10%~90%  PowerDC48~57V power adapter  Lightning Protection  Common Mode 4KV  Differential Mode 2KV  Working Temperature-30°C~65°C  Weight480g  Dimension(WxDxH)150mmx100mmx30mm      Accessories  SFP ModuleDescription  PFT3900155M 850nm,2km,LC, Multi-mode  PFT39501.25G 850nm,500m,LC, Multi-mode  PFT3910155M 1310/1550nm,20km,LC, ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFL2106-4ET-96

www.dahuasecurity.com
Features
· Supports long distance PoE transmission up to 800m with
ePoE technology of Dahua
· Two-layer industrial PoE switch
· MAC auto study and aging, MAC address list capacity is 8K
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
· Industrial wide temperature design
DH-PFL2106-4ET-96
4-Port ePoE Switch

Technical Specification
ModelDH-PFL2106-4ET-96
Ethernet Port
1*100/1000 Base-X
1*10/100/1000 Base-T
4*10/100 Base-T(PoE power supply)
PoE Power ConsumptionPort1,2,3≤30W, Port4≤60W, Total≤96W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity6.8Gbps
Packet Forwarding Rate3.57Mpps
Packet Buffer Memory1Mb
MAC Table Size8K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V power adapter
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-30°C~65°C
Weight480g
Dimension(WxDxH)150mmx100mmx30mm


Accessories
SFP ModuleDescription
PFT3900155M 850nm,2km,LC, Multi-mode
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT3910155M 1310/1550nm,20km,LC, Single-mode
PFT3920155M 1550/1310nm,20km,LC, Single-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
EoC (Ethernet over Coax)Description
LR1002
1*10/100 Mbps Base-TX + 1*BNC
RG59 coaxial cable:
400m/100Mbps, 1000m/10Mbps
Product Overview
DH-PFL2106-4ET-96 is a 4-Port ePoE switch, which is able to realize PoE
transmission over 800 meters Ethernet cable at the speed of 10Mbps,
or 300 meters at the speed of 100Mbps. Besides, it supports PoE and
PoC power supply technology, which has greatly simplified construction
and wiring. Dahua ePoE technology offer a new way to accomplish long
distance transmission between IP camera and network switch. It allows
more flexible surveillance system design, improves reliability and saves
construction and wiring cost.

Transmission Performance:
Cable (m)
Bandwidth
(Mbps)
PoE Load Capacity
(W)
Hi-PoE Load
Capacity (W)
Working Mode
10010025.553IEEE/E100
20010025.533E100
3001001919E100
400101717E10
500101313E10
8001077E10
ePoE switch supply voltage 48V
CAT5E/CAT6, max. DC resistance < 10Ω/100m
Cable (m)
Bandwidth
(Mbps)
PoE Load Capacity
(W)
Hi-PoE Load
Capacity (W)
Working Mode
10010025.553IEEE/E100
20010025.547E100
30010025.532E100
400102326E10
500102020E10
800101313E10
ePoE switch supply voltage 53V
CAT5E/CAT6, max. DC resistance < 10Ω/100m
