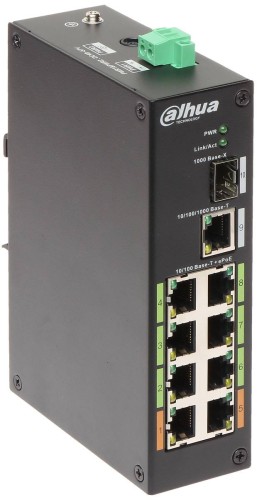

LR2110-8ET-120

DH-LR2110-8ET-120    www.dahuasecurity.com   Features  · Supports long distance PoE transmission up to 800m with  ePoE technology of Dahua  · Layer-two ePoE switch  · MAC auto study and aging, MAC address list capacity is 8K  · Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and  IEEE802.3X standards  · Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard  · Industrial wide temperature design  · Port indicator light is to display the status of current  transmission mode for the port, which includes IEEE, E100  and E10  DH-LR2110-8ET-120  8-Port ePoE Switch    Technical Specification  ModelDH-LR2110-8ET-120  Ethernet Port  1*1000 Base-X  1*10/100/1000 Base-T  8*10/100 Base-T(PoE power supply)  PoE Power ConsumptionPort1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W  PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE  Switching Capacity8.8Gbps  Packet Forwarding Rate4.17Mpps  Packet Buffer Memory2.75Mb  MAC Table Size8K  Flow ControlEnable by default  Application Humidity10%~90%  PowerDC48~57V power adapter  Lightning Protection  Common Mode 4KV  Differential Mode 2KV  Working Temperature﹣30°C~65°C  Weight0.59kg  Dimension(WxDxH)150mmx100mmx42mm     Product Overview  DH...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-LR2110-8ET-120

www.dahuasecurity.com
Features
· Supports long distance PoE transmission up to 800m with
ePoE technology of Dahua
· Layer-two ePoE switch
· MAC auto study and aging, MAC address list capacity is 8K
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
· Industrial wide temperature design
· Port indicator light is to display the status of current
transmission mode for the port, which includes IEEE, E100
and E10
DH-LR2110-8ET-120
8-Port ePoE Switch

Technical Specification
ModelDH-LR2110-8ET-120
Ethernet Port
1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T(PoE power supply)
PoE Power ConsumptionPort1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity8.8Gbps
Packet Forwarding Rate4.17Mpps
Packet Buffer Memory2.75Mb
MAC Table Size8K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V power adapter
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature﹣30°C~65°C
Weight0.59kg
Dimension(WxDxH)150mmx100mmx42mm

Product Overview
DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE
transmission over 800 meters Ethernet cable at the speed of 10Mbps,
or 300 meters at the speed of 100Mbps. Besides, it supports PoE and
PoC power supply technology, which has greatly simplified construction
and wiring. Dahua ePoE technology offer a new way to accomplish long
distance transmission between IP camera and network switch. It allows
more flexible surveillance system design, improves reliability and saves
construction and wiring cost.

Transmission Performance:
Cable (m)
Bandwidth
(Mbps)
PoE Load Capacity
(W)
Hi-PoE Load
Capacity (W)
Working Mode
10010025.553IEEE/E100
20010025.533E100
3001001919E100
400101717E10
500101313E10
8001077E10
ePoE switch power supply voltage 48V
CAT5E/CAT6, max. DC resistance < 10Ω/100m
Cable (m)
Bandwidth
(Mbps)
PoE Load Capacity
(W)
Hi-PoE Load
Capacity (W)
Working Mode
10010025.553IEEE/E100
20010025.547E100
30010025.532E100
400102326E10
500102020E10
800101313E10
ePoE switch power supply voltage 53V
CAT5E/CAT6, max. DC resistance < 10Ω/100m


Accessories
SFP ModuleDescription
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
EoC (Ethernet over Coax)Description
LR1002
1*10/100 Mbps Base-TX + 1*BNC
RG59 coaxial cable:
400m/100Mbps, 1000m/10Mbps

LED Indicator
Working ModeLED Indicator
IEEE mode Normally on
E100On for 3 seconds, off for 1 second
E10On for 1 second, off for 1 second
