PFM320-EN-S

Availability: 0
Price: €12.26 12.26
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: PFM320-EN-S

Description

Power Series | DH-PFM320D-EN/BS/US            www.dahuasecurity.com   DH-PFM320D-EN/BS/US   12V 2A Power Adapter                        Features  * Easy installation  * With indicator light working  * Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power  supply can be up to 100% at these temperatures  * Accurate overcurrent, overvoltage protection        Power Series | DH-PFM320D-EN/BS/US    www.dahuasecurity.com  Technical Specifications  Model DH-PFM320D-EN DH-PFM320D-BS DH-PFM320D-US (VI)  Electrical Specification  Input 100~240V, 50/60Hz, 0.6A  Output 12V, 2A(+7% , -3%)  Protection/Environmental  Protection  * Surge protection, over temperature protection,  * over current, voltage load protection  ESD: EN61000-4-2  ±4kV Contact; ±8kV Air  Surge: EN61000-4-5”  Combination Wave: Common Mode ±4KV (12 ohms);  Differential Mode ±2kV (2 ohms)  Working Temperature -30℃~+70℃(-22℉~+158℉)  Working Humidity <95% RH  Physical Properties  Weight 170g(0.37lb)  Dimension(Lxwxh) 104mmx45mmx33mm(4.09”x1.77”x1.3”)  Installation Mode ...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Power Series | DH-PFM320D-EN/BS/US





www.dahuasecurity.com
DH-PFM320D-EN/BS/US

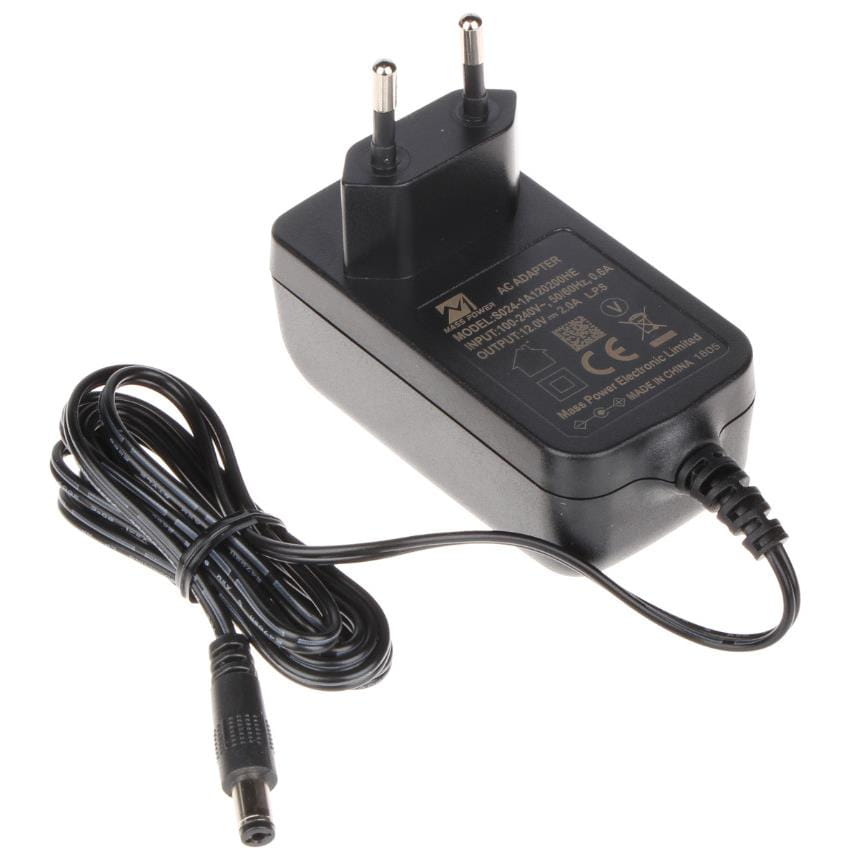

12V 2A Power Adapter











Features
* Easy installation
* With indicator light working
* Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power
supply can be up to 100% at these temperatures
* Accurate overcurrent, overvoltage protection



Power Series | DH-PFM320D-EN/BS/US

www.dahuasecurity.com
Technical Specifications
Model DH-PFM320D-EN DH-PFM320D-BS DH-PFM320D-US (VI)
Electrical Specification
Input 100~240V, 50/60Hz, 0.6A
Output 12V, 2A(+7% , -3%)
Protection/Environmental
Protection
* Surge protection, over temperature protection,
* over current, voltage load protection
ESD: EN61000-4-2
±4kV Contact; ±8kV Air
Surge: EN61000-4-5”
Combination Wave: Common Mode ±4KV (12 ohms);
Differential Mode ±2kV (2 ohms)
Working Temperature -30℃~+70℃(-22℉~+158℉)
Working Humidity <95% RH
Physical Properties
Weight 170g(0.37lb)
Dimension(Lxwxh) 104mmx45mmx33mm(4.09”x1.77”x1.3”)
Installation Mode Plane installation
Color Black
Input Plug 2-pin Euro plug 3-pin British plug 2-pin North American plug
Outgoing Cord AC wire: 50cm(19.69”), DC wire: 80cm(31.5”)
DC Plug Φ5.5mmxΦ2.1mmx12mm(Φ0.22”xΦ0.08”x0.47”)
Safety Standards
Certification CE, FCC, UL-VI

Order Information
Type Part Number Description
Power
DH-PFM321D-EN
DC12V 1A Power Adapter
_ Dahua brand, European standard
DH-PFM321D-BS
DC12V 1A Power Adapter
_ Dahua brand, British standard
DH-PFM321D-US
DC12V 1A Power Adapter(VI)
_ Dahua brand, North American standard
DH-PFM320D-EN
DC12V 2A Power Adapter
_ Dahua brand, European standard
DH-PFM320D-BS
DC12V 2A Power Adapter
_ Dahua brand, British standard
DH-PFM320D-US
DC12V 2A Power Adapter(VI)
_ Dahua brand, North American standard

Power Series | DH-PFM320D-EN/BS/US


Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com


Dimensions (mm/inch)
