PFM320D-015
Description
Power Series | DH-PFM320D-015 www.dahuasecurity.com DH-PFM320D-015 DC12V1.5A Power Adapter Features * Easy installation * Support working with indicator light * Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures * Accurate overcurrent, overvoltage protection Power Series | DH-PFM320D-015 www.dahuasecurity.com Technical Specifications Model DH-PFM320D-015 Electrical Specification Rated input AC100~240V, 50/60Hz, 0.6A Output voltage DC12V (+7%, -3%) Output current Max. 1.5A (+70℃) Protection/Environmental Protection * Surge protection, over temperature protection, over current, voltage load protection ESD: EN61000-4-2 +/-6kV Contact; +/-8kV Air Surge: EN61000-4-5 Combination Wave: Common Mode ±4KV(12 ohms) Differential Mode ±2kV(2 ohms) Working temperature -30℃~+70℃(-22℉~+158℉) Working humidity 5%~95% RH Physical Properties Weight 95g(0.21lb) Dimension(LxWxH) 77.3mmx51.9mmx30...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Power Series | DH-PFM320D-015
www.dahuasecurity.com
DH-PFM320D-015

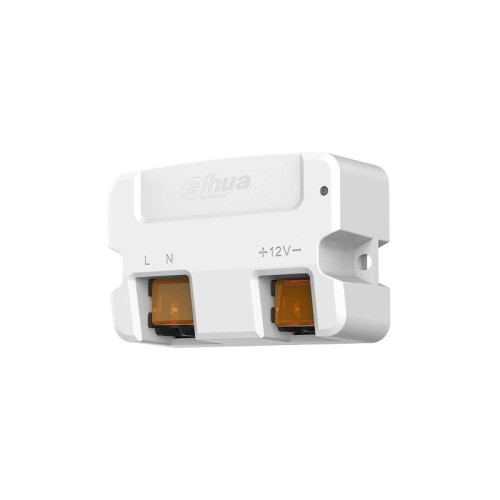

DC12V1.5A Power Adapter
Features
* Easy installation
* Support working with indicator light
* Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power
supply can be up to 100% at these temperatures
* Accurate overcurrent, overvoltage protection
Power Series | DH-PFM320D-015
www.dahuasecurity.com
Technical Specifications
Model DH-PFM320D-015
Electrical Specification
Rated input AC100~240V, 50/60Hz, 0.6A
Output voltage DC12V (+7%, -3%)
Output current Max. 1.5A (+70℃)
Protection/Environmental
Protection
* Surge protection, over temperature protection, over current, voltage load
protection
ESD: EN61000-4-2
+/-6kV Contact; +/-8kV Air
Surge: EN61000-4-5
Combination Wave: Common Mode ±4KV(12 ohms)
Differential Mode ±2kV(2 ohms)
Working temperature -30℃~+70℃(-22℉~+158℉)
Working humidity 5%~95% RH
Physical Properties
Weight 95g(0.21lb)
Dimension(LxWxH) 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
Installation Plane installation, can be installed in junction boxes and wall mount brackets
Color White
Input plug 2-pin plug(L/N)
Output plug 2-pin plug(+12V-)
Safety Standards
Certification CE, FCC
Order Information
Type Part Number Description
Power series
DH-PFM320D-015 DC12V 1.5A power adapter(CE/FCC)
DH-PFM321D-EN
DC12V 1A power adapter(CE/FCC/UL-VI) for cameras DH-PFM321D-BS
DH-PFM321D-US
DH-PFM320D-EN
DC12V 2A power adapter(CE/FCC/UL-VI) for cameras DH-PFM320D-BS
DH-PFM320D-US
Power Series | DH-PFM320D-015
Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Dimensions (mm/inch)
Application
* Support to be installed in some brackets, such as junction box PFA12X and wall mount bracket
PFB302S/PFB210W.
Package Information
* DC12V 1.5A power adapter DH-PFM320D-015 *1
