HIKVISION

Spec of DS-K4T108-U1 Series Accessories of Electric Bolt www.hikvision.com  1          DS-K4T108-U1       The bracket is made up of aluminum alloy   It is suitable for lower edge frameless glass door with  a space of more than 5mm between the leaf and  frame.              Model DS-K4T108-U1  Dimension (LxWxH) 70x44x24.5mm (2.8x1.73x1.0")  Suitable Door Lower Edge Frameless Glass Door  Shell Performance Hard Anodizing Electroplated  Weight 0.15kg                    DS-K4T108-U1    MAIN FEATURES    SPECIFICATION  S    Accessories of Electric Bolt    AVAILABLE MODEL      INSTALLATION...

Warranty: 24 mon.

Datasheet

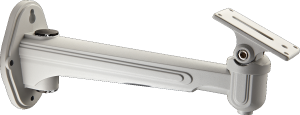

DS-1213ZJ(-S)  Wall Mounting Bracket Indoor/Outdoor  Features:   Die casting aluminum with surface spray treatment   Design with cable entry hole   Sponge pat is fixed on the surface of substrate to  ensure the stabilization of camera   The soleplate is rotatable for monitoring scene  adjustment  Dimension:      Order model:  DS-1213ZJ DS-1213ZJ-S  Parameters:  Model  Parameter  DS-1213ZJ DS-1213ZJ-S  Wall Mounting Bracket Indoor/Outdoor  Color Hik white Silver  Feature  Suitable for bullet camera and housing of  indoor/outdoor wall mounting  Material Aluminum alloy  Angle Horizontal: 360°; Vertical: -45°~45°  Dimension 83x123.9x304mm  Weight 765g  Configurable  Bracket  DS-1215ZJ (vertical pole mount)  Notice:   Pay attention to the color matching   The bracket is installed on the flat surface of a wall   The diameter of hole site is within 6.5mm   The distance between two screw hole is 20~54mm   The wall must be capable of supporting more than 3  times the total load of the camera and th...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2FA1225-D4  Switching Mode Power Supply    Feature   12 VDC/1 A per channel   Over current/short circuit/over voltage protection   Complies with certification standards of information technology products; good EMC performance   Compact size; applicable to cameras  Dimension    Available Model  DS -2FA1225-D4  Parameter  Model    Parameters  DS -2FA1225 -D4  Switching Mode Power Supply  Appearance Gray  Input 185 to 240 VAC, 50 Hz to 60 Hz  Output 12 VDC /1 A per channel  Cable Length  Compensation  Normal: 12 VDC  Long: 13.5 VDC  Ex-Long: 15 VDC  Ripple & Noise 0.15 Vp -p (15 0 mV)  AC Input Connector C8  DC Output Connector DC Plug: grid terminal  LED Indicator Green  Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 9 5% (non-condensing)  Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)  Dimension 130 mm x 94 mm x 34 mm (5.11" x 3.70" x 1.34")...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

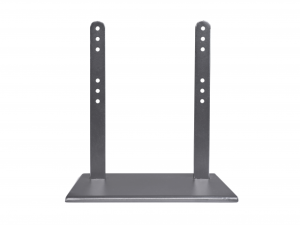

©2006 – 2019 by HIKVISION. All rights reserved.  1  DS-DM4301B  43’’ Monitor Display Base Bracket      Key Features  ⚫ Base Bracket for 43’’ Monitor(Suitable model shown in the end)  ⚫ Solid Steel structure, Prevent screen bend or twist  ⚫ Cold-rolled Steel Plate(SPCC)  Specification  Name DS-DM4301B  Appearance Hikvision Black  Material Cold-rolled Steel Plate(SPCC)  Dimension(WxHxD) 507.4 mm x 194.19 mm x 493.84 mm  Weight 3.228 kg  Order Model and Code:  DS-DM4301B | 190138569        ©2006 – 2019 by HIKVISION. All rights reserved.  2  Dimensions (unit: mm)      Suitable Monitor Model  ⚫ DS-D5055UL-B...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

©2006 – 2017 by HIKVISION. All rights reserved.  1  DS-DM3201B  32’’ Monitor Display Base Bracket      Key Features   Base Bracket for 32’’’ Monitor(Suitable model shown in the end)   Solid Steel structure, Prevent screen bend or twist   Cold-rolled Steel Plate(SPCC)  Specification  Name DS-DM3201B  Appearance Hikvision Black  Material Cold-rolled Steel Plate(SPCC)  Dimension(WxHxD) 313.41mmx194.19mmx449.5mm  Weight 2.86 kg  Order Model and Code:  DS-DM3201B | 190115887        ©2006 – 2017 by HIKVISION. All rights reserved.  2  Dimensions      Suitable Monitor Model   DS-D5032FL   DS-D5032FL-B   DS-D5032FL-C...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-1258ZJ  Wall mount for indoor cameras  Features:   Good toughness and strength   Beautiful design with wire outlet hole   Coordination with small and nice appearance  Dimension:      Order model:  DS-1258ZJ  Parameters  Model  Parameters  DS-1258ZJ  Indoor wall mount  Color Hik white  Feature Suitable for mini dome or dome camera  Material ABS+PC  Dimension 111x120x161.5mm()  Weight 200g  Notice:   Pay attention to the application range when select bracket   Pay attention to the color matching when select bracket   The bracket should be installed on flat wall   The wall must be capable of supporting more than 3 times the total load of  the camera and the mount.   The maximum load capacity of the mount is 2.0KG  Installation steps:  ① Select suitable wall to install the bracket ⑥ Loosen the tightening screw and take down ⑥ Install the dome core to the gang box,  and wire. the housing. ...

Warranty: 36 mon.

Datasheet

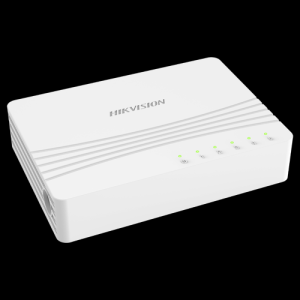

DS-3E0505D-E 10/100/1000 Mbps Ethernet Switch  * DS-3E0505D-E: 5 x 10/100/1000 Mbps adaptive Ethernet  ports  * Support ADI/ADIX  * Store-and-forward switching  * Support MAC address auto-learning and aging  * Simple and mini exquisite body  * Support desktop and wall-mounting  * Plug & play, and easy to use  Feature and Function    DS-3E0505D-E provides 5 x 10/100/1000 Mbps Ethernet  ports which support line speed forwarding. With simple and  mini exquisite body, the switch is plug and play and easy to  use, suitable for home, school, dormitory, office, small  monitoring and other simple network environments.                      Model DS-3E0505D-E  Network parameters  Port number 5  Port type 10/100/1000 Mbps RJ45 ports  Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab  Forwarding mode Store and forward  MAC address table 2 K  Switching capacity 10 Gbps  Packet forwarding rate 7.44 Mpps  General  Shell ABS  Weight 0.03 kg  Dimensions (L x H x D) 92.8 x 65.8 x 22.8 mm  Operating temperature 0°C~40°C  Storage temperature -40°C~70°C  Operating humidity 10%~90% RH non-condensing  Storage humidity ...

Warning! Product withdrawn from production!

Replacement product: DS-3E0505D-O

Replacement product code: 301802745

Warranty: 36 mon.

Datasheet

© 2015 by HIKVISION. All rights reserved.    Hikvision L Series Micro SD  (TF) Card for Surveillance        Introduction  Hikvision L Series Micro SD (TF) Card for Surveillance is specially designed  for video surveillance recording with a Class 10 read-write speed. It adopts  TLC NAND with high compatibility and low price, widely applicable to low  video recording intensity scenes with lite storage, standby storage, etc. or  scenes with simple operating environment.    Available Models  DS-UTF16GI-L1  DS-UTF32GI-L1  DS-UTF64GI-L1  DS-UTF128GI-L1    Main Features   High cost performance  Lower price when compared to the card with the same TLC NAND, fully  satisfying requirement for lite storage, which is the storage used for low  intensity video recording and simple scenes;   High compatibility  Better compatibility with more products. It can be optimized according to  Hikvision storage system. Better effect when used with Hikvision  cameras;   Ultrastrong adaptability  Waterproof, shock proof, X-ray proof, and temperature proof to perform  normally in various harsh environments.                       ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-1212ZJ(-S)  Wall Mounting Bracket  Features:   Die casting aluminum with surface spray treatment   Design with cable entry hole   Sponge pat is fixed on the surface of substrate to  ensure the stabilization of camera   The soleplate is rotatable for monitoring scene  adjustment  Dimension:      Order model:  DS-1212ZJ DS-1212ZJ-S  Parameters:  Model  Parameter  DS-1212ZJ DS-1212ZJ-S  Wall Mounting Bracket  Color Hik white Silver  Feature  Suitable for box, bullet and zoom camera  wall mounting  Material Aluminum alloy  Angle Horizontal:360°; Vertical:-45°~45°  Dimension 65x95x188.5mm  Weight 360g  Configurable  Bracket  DS-1275ZJ (vertical pole mount)  Notice:   Pay attention to the color matching as selecting bracket   The bracket is installed on the flat surface of a wall   The diameter of hole site is within 6.5mm   The distance between two screw hole is 13~33mm   The wall must be capable of supporting more than 3  times the total load of the camera and the mount.   The Max. capacity load...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

L2 Series Video Surveillance Micro SD (TF) Card    Introduction  Hikvision L2 series Micro SD (TF) card is specially designed for video  surveillance industry. It provides Class 10 R/W speed, adopts TLC  NAND with high compatibility and low price, and is mainly applicable  to low recording intensity scenes or simple operating scenes like lite  storage, standby storage, etc.  Available Models  HS-TF-L2I/16G,  HS-TF-L2I/32G,  HS-TF-L2I/64G,  HS-TF-L2I/128G  Features and Functions   High Cost Performance   Lower price compared to the cards with the same TLC NAND.   Fully satisfies requirements of lite storage.   High Compatibility   Optimized by Hikvision storage system, it is compatible with more products than traditional SD (TF)  cards.   Better performance when used with Hikvision cameras.   Ultra-Strong Adaptability   Waterproof, shock proof, X-ray proof, and wide temperature range.                  Specifications    Note: Performance test is performed in a specific testing environment. Any change of computer system, operation  system, hardware, software, or functions will influence the test result.    Model HS-TF-L2I  Total c...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
