DS-1213ZJ

DS-1213ZJ(-S)  Wall Mounting Bracket Indoor/Outdoor  Features:   Die casting aluminum with surface spray treatment   Design with cable entry hole   Sponge pat is fixed on the surface of substrate to  ensure the stabilization of camera   The soleplate is rotatable for monitoring scene  adjustment  Dimension:      Order model:  DS-1213ZJ DS-1213ZJ-S  Parameters:  Model  Parameter  DS-1213ZJ DS-1213ZJ-S  Wall Mounting Bracket Indoor/Outdoor  Color Hik white Silver  Feature  Suitable for bullet camera and housing of  indoor/outdoor wall mounting  Material Aluminum alloy  Angle Horizontal: 360°; Vertical: -45°~45°  Dimension 83x123.9x304mm  Weight 765g  Configurable  Bracket  DS-1215ZJ (vertical pole mount)  Notice:   Pay attention to the color matching   The bracket is installed on the flat surface of a wall   The diameter of hole site is within 6.5mm   The distance between two screw hole is 20~54mm   The wall must be capable of supporting more than 3  times the total load of the camera and th...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1213ZJ(-S)

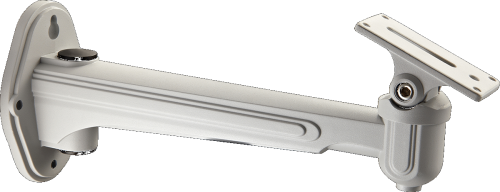

Wall Mounting Bracket Indoor/Outdoor
Features:
 Die casting aluminum with surface spray treatment
 Design with cable entry hole
 Sponge pat is fixed on the surface of substrate to
ensure the stabilization of camera
 The soleplate is rotatable for monitoring scene
adjustment
Dimension:


Order model:
DS-1213ZJ DS-1213ZJ-S
Parameters:
Model
Parameter
DS-1213ZJ DS-1213ZJ-S
Wall Mounting Bracket Indoor/Outdoor
Color Hik white Silver
Feature
Suitable for bullet camera and housing of
indoor/outdoor wall mounting
Material Aluminum alloy
Angle Horizontal: 360°; Vertical: -45°~45°
Dimension 83x123.9x304mm
Weight 765g
Configurable
Bracket
DS-1215ZJ (vertical pole mount)
Notice:
 Pay attention to the color matching
 The bracket is installed on the flat surface of a wall
 The diameter of hole site is within 6.5mm
 The distance between two screw hole is 20~54mm
 The wall must be capable of supporting more than 3
times the total load of the camera and the mount.
 The Max. capacity load of bracket arm is 8.5kg
 The maximum load capacity of the mount is 2.5KG

Installation step:
①Choose the appropriate wall to mount the bracket




②Complete the fixation and wiring






A: Screw of vertical adjust; B: Screw of Horizontal adjust
③Unscrew the vertical adjusting screw and get
the soleplate out of the camera.





C: Installation base of camera
④ Fix the camera onto the base and screw up ⑤ Fix the IPC & base onto the bracket and
screw up; adjust the site and angle of IPC

⑥ The bracket can also be used with housing

Note: The actual bracket may vary from the picture above.


A
B
C
