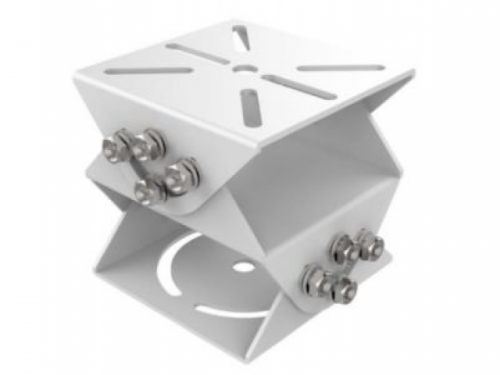

DS-1232ZJ-T
Description
DS-1232ZJ-T PT Joint Feature Steel and stainless steel with surface spray treatment Adjustable tilt angle from -90° to 90°, and pan angle from 0° to 90° Dimension 100 mm (3.94" ) 81.8 mm (3.22" ) 24.2 mm (0.95" ) 6.2 mm (0.24" ) 95 mm (3 .74 " ) 75 .8 mm (2 .98 " ) 30 .2 mm (1 .19 " ) Ø 10.2 mm (0.40" ) 92 .5 mm (3 .64 " ) 100 mm (3 .94 " ) 96 mm (3.78" ) Ø 6.5 mm (0.26" ) Ø 70 mm (2.76" ) 95° Available Model DS-1232ZJ-T Parameter Model Parameters DS-1232ZJ-T PT Joint Appearance Hikvision White Material Steel and Stainless Steel Dimension 100 mm x 100 mm x 92.5 mm (3.94" x 3.94" x 3.64") Weight 850 g (1.87 lb.) Note The joint’s maximum load capacity is 6 kg (13.2 lb.). 0100001080201...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-1232ZJ-T
PT Joint
Feature
Steel and stainless steel with surface spray treatment
Adjustable tilt angle from -90° to 90°, and pan angle from 0° to 90°
Dimension
100 mm (3.94" )
81.8 mm (3.22" )
24.2 mm (0.95" )
6.2 mm (0.24" )
95
mm
(3
.74
" )
75
.8
mm
(2
.98
" )
30
.2
mm
(1
.19
" )
Ø 10.2 mm
(0.40" )
92
.5
mm
(3
.64
" )
100
mm
(3
.94
" )
96 mm (3.78" )
Ø 6.5 mm
(0.26" )
Ø 70 mm (2.76" )
95°
Available Model
DS-1232ZJ-T
Parameter
Model
Parameters
DS-1232ZJ-T
PT Joint
Appearance Hikvision White
Material Steel and Stainless Steel
Dimension 100 mm x 100 mm x 92.5 mm (3.94" x 3.94" x 3.64")
Weight 850 g (1.87 lb.)
Note
The joint’s maximum load capacity is 6 kg (13.2 lb.).
0100001080201
