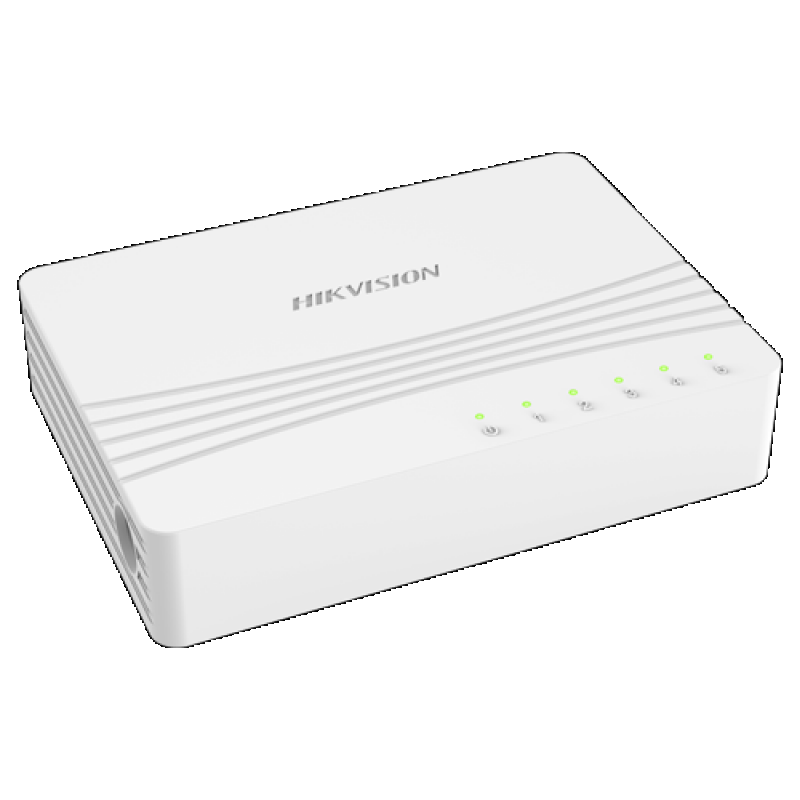

DS-3E0505D-E
Description
DS-3E0505D-E 10/100/1000 Mbps Ethernet Switch * DS-3E0505D-E: 5 x 10/100/1000 Mbps adaptive Ethernet ports * Support ADI/ADIX * Store-and-forward switching * Support MAC address auto-learning and aging * Simple and mini exquisite body * Support desktop and wall-mounting * Plug & play, and easy to use Feature and Function DS-3E0505D-E provides 5 x 10/100/1000 Mbps Ethernet ports which support line speed forwarding. With simple and mini exquisite body, the switch is plug and play and easy to use, suitable for home, school, dormitory, office, small monitoring and other simple network environments. Model DS-3E0505D-E Network parameters Port number 5 Port type 10/100/1000 Mbps RJ45 ports Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Forwarding mode Store and forward MAC address table 2 K Switching capacity 10 Gbps Packet forwarding rate 7.44 Mpps General Shell ABS Weight 0.03 kg Dimensions (L x H x D) 92.8 x 65.8 x 22.8 mm Operating temperature 0°C~40°C Storage temperature -40°C~70°C Operating humidity 10%~90% RH non-condensing Storage humidity ...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-3E0505D-E 10/100/1000 Mbps Ethernet Switch
* DS-3E0505D-E: 5 x 10/100/1000 Mbps adaptive Ethernet
ports
* Support ADI/ADIX
* Store-and-forward switching
* Support MAC address auto-learning and aging
* Simple and mini exquisite body
* Support desktop and wall-mounting
* Plug & play, and easy to use
Feature and Function
DS-3E0505D-E provides 5 x 10/100/1000 Mbps Ethernet
ports which support line speed forwarding. With simple and
mini exquisite body, the switch is plug and play and easy to
use, suitable for home, school, dormitory, office, small
monitoring and other simple network environments.
Model DS-3E0505D-E
Network parameters
Port number 5
Port type 10/100/1000 Mbps RJ45 ports
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Forwarding mode Store and forward
MAC address table 2 K
Switching capacity 10 Gbps
Packet forwarding rate 7.44 Mpps
General
Shell ABS
Weight 0.03 kg
Dimensions (L x H x D) 92.8 x 65.8 x 22.8 mm
Operating temperature 0°C~40°C
Storage temperature -40°C~70°C
Operating humidity 10%~90% RH non-condensing
Storage humidity 5%~90% RH non-condensing
Power supply 5 V DC, 0.6 A
Specification
Physical Interface
Front panel:
Side panel:
Available Model
DS-3E0505D-E
Accessories
Power adapter x 1, User manual x 1, Switch x 1
Dimension
Typical Application
