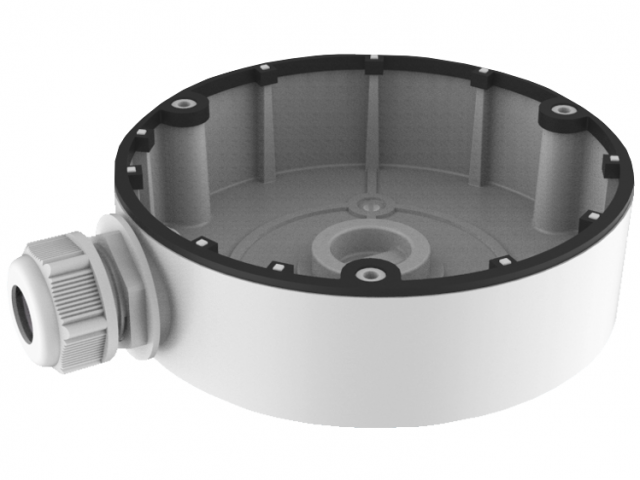

DS-1280ZJ-DM8

DS-1280ZJ-DM8  Junction Box for Dome Camera      Features   Aluminum alloy material with surface spray treatment   Side inlet and bottom inlet   Interchangeable bottom waterproof cover and side gland nut   Waterproof design  Dimension  1  5  4  .  5    m  m    (  6  .  0  8"  )  3-M4  Φ 12.4 mm  (0.49")  3-Φ 4.5 mm  (0.18")  Φ 70 mm  (2.76")  3  5    m  m    (  1  .  3  8"  )  Φ 126.7 mm  (4.99")      Available Model  DS-1280ZJ-DM8  Parameter  Model    Parameters  DS-1280ZJ-DM8  Junction Box for Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ126.7 mm x 35 mm (4.99" x 1.38")  Weight Approx.: 210 g (0.46 lb.)  Notes   The junction box should be installed on the flat surface.   The waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the  bracket.   The maximum load capacity of the bracket is 1 Kg (2.2 lb.).      0100001070228...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1280ZJ-DM8
Junction Box for Dome Camera


Features
 Aluminum alloy material with surface spray treatment
 Side inlet and bottom inlet
 Interchangeable bottom waterproof cover and side gland nut
 Waterproof design
Dimension
1
5
4
.
5

m
m

(
6
.
0
8"
)
3-M4
Φ 12.4 mm
(0.49")
3-Φ 4.5 mm
(0.18")
Φ 70 mm
(2.76")
3
5

m
m

(
1
.
3
8"
)
Φ 126.7 mm
(4.99")


Available Model
DS-1280ZJ-DM8
Parameter
Model

Parameters
DS-1280ZJ-DM8
Junction Box for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ126.7 mm x 35 mm (4.99" x 1.38")
Weight Approx.: 210 g (0.46 lb.)
Notes
 The junction box should be installed on the flat surface.
 The waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the
bracket.
 The maximum load capacity of the bracket is 1 Kg (2.2 lb.).


0100001070228
