Datasheet  1        DS-1227ZJ    Model DS-1227ZJ  Indoor dome flush mount  Appearance    Feature Suitable for DS-2CD783F-E(I), DS-2CD754F-E(I), DS-2CD763NF-E,  DS-2CD764FWD-E(I), DS-2CD793NFWD-E(I) and DS-2CD733F-E, etc., dome  camera with the same structure  Construction Sheet metal and ABS plastic  Weight 540g(1.19lbs)  Dimensions Φ210.0x84.5mm  (Φ8.27"x3.33")        Bore Size  Unit: mm...

Warranty: 36 mon.

Datasheet

Datasheet  1        DS-1227ZJ    Model DS-1227ZJ  Indoor dome flush mount  Appearance    Feature Suitable for DS-2CD783F-E(I), DS-2CD754F-E(I), DS-2CD763NF-E,  DS-2CD764FWD-E(I), DS-2CD793NFWD-E(I) and DS-2CD733F-E, etc., dome  camera with the same structure  Construction Sheet metal and ABS plastic  Weight 540g(1.19lbs)  Dimensions Φ210.0x84.5mm  (Φ8.27"x3.33")        Bore Size  Unit: mm...

Warranty: 36 mon.

Datasheet

DS-1232ZJ  Cardan Joint      Feature   Enables the angle adjustment from -60° to 60°   Applied to both indoor and outdoor conditions  Dimension  Φ 6.5 mm  (0.26")  30  mm  (  1  .18  ")  96  mm  (  3  .78  ")  126  mm  (  4  .96  ")   6.5 mm  (0.26")   103.5 mm (4.07")  83  mm  (  3  .27  ")  Φ 70 mm  (2.76")  Φ 6.6 mm  (0.26")      Available Model  DS-1232ZJ  Parameter  Model    Parameters  DS-1232ZJ  Cardan Joint  Appearance Hikvision White  Material Steel  Dimension 126 mm x 103.5 mm x 83 mm (4.96" x 4.07" x 3.27")  Weight Approx. 760 g (1.68 lb.)  Note   The cardan joint should be installed on a flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the cardan joint.   The maximum load capacity of the cardan joint is 6 kg (13.23 lb.)....

Warranty: 36 mon.

Datasheet

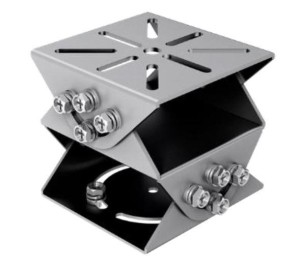

DS-1232ZJ-TP  PT Joint    Feature   Steel and stainless steel with surface spray treatment   Adjustable tilt angle from -90° to 90°, and pan angle from 0° to 90°  Dimension    100 mm (3.94" )  81.8 mm (3.22" )  24.2 mm (0.95" )  6.2 mm (0.24" )  95  mm  (3  .74  " )  75  .8  mm  (2  .98  " )  30  .2  mm  (1  .19  " )  Ø 10.2 mm  (0.40" )  92  .5  mm  (3  .64  " )  100  mm  (3  .94  " )  96 mm (3.78" )  Ø 6.5 mm  (0.26" )  Ø 70 mm (2.76" )  95°      Available Model  DS-1232ZJ-TP  Parameter  Model    Parameters  DS-1232ZJ-TP  PT Joint  Appearance Platinum Gray  Material Steel and Stainless Steel  Dimension 100 mm x 100 mm x 92.5 mm (3.94" x 3.94" x 3.64")  Weight 850 g (1.87 lb.)  Note   The joint’s maximum load capacity is 6 kg (13.2 lb.).    0100001080201...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-1240ZJ  Inclined Ceiling Mounting Bracket for  Dome Camera    Feature   Aluminum alloy material with surface spray treatment   Waterproof design  Dimension  63 mm (2.48")  Φ   145  mm  (5.71  ")  46 mm  (1.81")  85  .3  mm  (3  .36  ")  83.5 mm (3.29")  46  mm  (1.81  ")      Available Model  DS-1240ZJ  Parameter  Model    Parameters  DS-1240ZJ  Inclined Ceiling Mounting Bracket for Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension 145 mm x 144.5 mm x 63 mm (5.71" x 5.69" x 2.48")  Weight 440 g (0.97 lb.)  Note   The bracket should be installed on the flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the dome camera and the  bracket.   The bracket’s maximum load capacity is 3 KG (6.6 lb.)....

Warranty: 36 mon.

Datasheet

DS-1241ZJ      In-ceiling Mounting Bracket for  Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   Design of cap is for convenient wiring  Dimension:        Order Model:  DS-1241ZJ  Parameter:  Model    Parameters  DS-1241ZJ  In-ceiling Mounting Bracket for  Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ210x26.8mm  Weight 260g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG  Model Suitable:  DS-2CC51xxP(N)-VP series  DS-2CC51xxP(N)-VPIR series  DS-2CC51xxP(N)-VPIRH series  DS-2CE555F5P(N)-(A)VPIR3  DS-2CE56D5T-(A)VPIR3  DS-2CE56C5T-(A)VPIR3    Note: The actual dome camera may vary from the picture above....

Warranty: 36 mon.

Datasheet

DS-1250ZJ    Rain Shade for Outdoor Dome Camera  Features:   Composite fibre material with good tenacity  and high reliability;     Water chute design for preventing rainwater  from flowing to camera housing;     Prevent direct sunlight and improve image  quality;     Rain protection and six -level windproof;   Weaken the possibility of freezing;    Dimension:    152  264.7  3-  n  4.2  3-  n  9  R  134  63.9  122  207.8  189.6  Order Model:  DS-1250ZJ  Parameter:  DS-1250ZJ  Model  Parameters  Rain Shade for Outdoor Dome Camera  AppearanceHikvision White  MaterialComposite Fibre  Dimension264.7*152*189.6 mm  Weight199g    Notice:     The rain shade should be installed on flat wall   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and accessory.    Note: The actual dome camera may vary from the picture above....

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-1253ZJ-M  Rain Shade for Outdoor Dome Camera    Features:   Water chute design for preventing rainwater from  flowing to camera housing;   Prevent direct sunlight and improve image quality;   Rain protection and six -level windproof;   Weaken the possibility of freezing;   Match up with wall mount(DS-1272ZJ series)  Dimension:          Order Model:  DS-1253ZJ-M  Parameter:  Model    Parameters  DS-1253ZJ-M  Rain Shade for Outdoor Dome Camera  Appearance Hikvision White  Material PP+30%GF  Dimension Φ191.1x76mm  Weight 133g  Notice:   The rain shade should be installed on flat wall   The wall must be capable of supporting over 3 times  as much as the total weight of the camera and  accessory.      Note: The actual dome camera may vary from the picture above.  76  □191.1  □33.4...

Warranty: 36 mon.

Datasheet

DS-1258ZJ  Wall mount for indoor cameras  Features:   Good toughness and strength   Beautiful design with wire outlet hole   Coordination with small and nice appearance  Dimension:      Order model:  DS-1258ZJ  Parameters  Model  Parameters  DS-1258ZJ  Indoor wall mount  Color Hik white  Feature Suitable for mini dome or dome camera  Material ABS+PC  Dimension 111x120x161.5mm()  Weight 200g  Notice:   Pay attention to the application range when select bracket   Pay attention to the color matching when select bracket   The bracket should be installed on flat wall   The wall must be capable of supporting more than 3 times the total load of  the camera and the mount.   The maximum load capacity of the mount is 2.0KG  Installation steps:  ① Select suitable wall to install the bracket ⑥ Loosen the tightening screw and take down ⑥ Install the dome core to the gang box,  and wire. the housing. ...

Warranty: 36 mon.

Datasheet

DS-1259ZJ  Inclined ceiling mount for DS-2CD21XX dome camera  Features:   Good toughness and strength   Beautiful design with wire outlet hole   Coordination with small and nice appearance   Angle of elevation is increased by 15°  Dimension:      Order model:  DS-1259ZJ  Parameters:  Model  Parameters  DS-1259ZJ  Suitable for DS-2CD21XX series dome cameras  Color Hik white  Feature Suitable for DS-2CD21XX series dome cameras  Angle of elevation is increased by 15°  Material ABS+PC  Dimension Φ111x39.2mm(Φ4.37’’x1.54’’)  Weight 200g(0.44lbs)  Notice:   This bracket is only for DS-2CD21XX series dome camera   Pay attention to the application range when select bracket   Pay attention to the color matching when select bracket   The bracket should be installed on flat wall   The wall must be capable of supporting more than 3 times the total load of  the camera and the mount.   The maximum load capacity of the mount is 2.0KG  Installation steps:  ① Select suitable wall to install the bracket ② Loosen the tightening screw and take down ③ Install the dome core to the gang box, <...

Warranty: 36 mon.

Datasheet
