DS-1260ZJ
Connection box For bullet cameras Suitable for outdoor use Wall or ceiling installation White colour Cable pass HIWATCH HIKVISION junction box for bullet cameras. Permits to put the power supply, the cables and the installation accessories inside of it. It has multiple holes for installation of different types of dome or bullet cameras. Fixing to wall or ceiling through 4 screws. The camera is installed in the removable cover of the support. It allows internal wiring passage. Made of aluminum. Valid for exterior DS-1260ZJ Especificaciones BrandHiwatch Hikvision Dimensions36 (He) x 88.5 (Ø) mm Maximum load3.5Kg Weight250g UseValid for interior/exterior CompositionAluminium alloy ColourWhite...
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-1260ZJ(Black)
DS-1260ZJ Junction Box for Bullet Camera Features: Aluminum alloy material with surface spray treatment Dimension: Order Model: DS-1260ZJ Parameter: DS-1260ZJ Model Parameters Junction Box for Bullet Camera AppearanceHikvision White MaterialAluminum Alloy DimensionΦ88.5 mm Weight251g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1268ZJ
DS-1268ZJ Pendent Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Design with cable entry hole Dimension: Order Model: DS-1268ZJ Parameter: Model Parameters DS-1268ZJ Pendent Mounting Bracket for Dome Camera Appearance Hikvision White Range of Application Suitable for dome camera pendent mounting Material Aluminum Alloy Dimension Φ139x590mm Weight 2200g Notice: The bracket is for dome camera Pay attention to color matching The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CD72XXF-E(I)Z(H)(S),DS-2CD72X3PF-E(I)Z(H)(S),DS-2CD72X3NF-E(I)Z(H)(S),DS-2CD7293PFWD-E(I)Z(H)(S),DS-2CD7293NFWD- E(I)Z(H)(S),DS-2CD72X4FWD-E(I)Z(H)(S),DS-2CD4312F(WD)-(I)(Z)(H)(S),DS-2CD4324F-(I)(Z)(H)(S),DS-2CD4332FWD-(I)(Z)(H)(S) Installation Step: ① Choose the appropriate wall...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1269ZJ
DS-1269ZJ Pendent Mounting Bracket Dimension: Order model: DS-1269ZJ Parameters: Model Parameter DS-1269ZJ Pendent Mounting Bracket Color Hik white Material Aluminum Alloy Dimension 493x246x88mm Weight 540g Notice: Pay attention to color matching The bracket should be installed on the flat surface of a wall The wall must be capable of supporting more than 3 times the total load of camera and bracket The maximum load capacity of the mount is 6KG...
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-1269ZJ-P
DS -1269ZJ -P Pendant Mount Feature Enables the pan position adjustment from 0° to 360°, tilt position adjustment from -60 ° to 60° Routing cables inside the mount provides high reliability Applied to both indoor and outdoor conditions Dimension 493 mm ( 19 .41 '' ) 16 mm (0.63'') Φ 88 mm (3.46'') 4-Φ 8.2 mm (0.32'') 25 mm (0.98'') 6 .4 mm ( 0 .25 '' ) 75 mm ( 2 .95 '' ) Available Model DS -1269ZJ-P Parameter Model Parameters DS -1269ZJ-P Pendant Mount Appearance Platinum Gray Material Aluminum Alloy Dimension Φ 88 x 493 mm x 246 mm (3.46’’ x 19.41’’ x 9.69’’) Weight Approx. 540 g (1.19 lb.) No te The mount should be installed on a flat surface. Waterproof rubber is necessary for the outdoor application . The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the mount is 6 kg (13.23 lb.)....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1271ZJ-110
DS-1271ZJ-110 Pendent Mounting Bracket for Mini Dome Camera Features: Aluminum alloy material with surface spray treatment Indoor/Outdoor general design Internal routed cable design Cable entrance is reserved for convenient wiring indoor Better water proof design Dimension: Order Model: DS-1271ZJ-110 Parameter: Model Parameters DS-1271ZJ-110 Pendent Mounting Bracket for Dome Camera Appearance Hik White Range of Application Suitable for dome camera pendent mounting Material Aluminum Alloy Dimension 150x560mm Weight 1270g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CC51D3S-VPIR, DS-2CD2112-(I), DS-2CD2132-(I) Installation Step: ① Choose the appropriate wall to install the ceiling plate and thread the cable ② Connect pole and adapter; thread cable and screw up ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-1271ZJ-110(Black)
DS-1271ZJ-110 Pendent Mounting Bracket for Mini Dome Camera Features: Aluminum alloy material with surface spray treatment Indoor/Outdoor general design Internal routed cable design Cable entrance is reserved for convenient wiring indoor Better water proof design Dimension: Order Model: DS-1271ZJ-110 Parameter: Model Parameters DS-1271ZJ-110 Pendent Mounting Bracket for Dome Camera Appearance Hikvision White Range of Application Suitable for dome camera pendent mounting Material Aluminum Alloy Dimension Φ150x560mm Weight 1270g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CC51D3S-VPIR, DS-2CD2112-(I), DS-2CD2132-(I) Installation Step: ① Choose the appropriate wall to install the ceiling plate and thread the cable ② Connect pole and adapter; thread cable and screw up ③ Screw ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-1271ZJ-120
DS-1271ZJ-120 Pendent Mounting Bracket for Mini Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof rubber suits for indoor/outdoor design The internal wiring makes the feature looks better Outlet hole is reserved for convenient wiring indoor Better water proof design Dimension: Order Model: DS-1271ZJ-120 Parameter: Model Parameters DS-1271ZJ-120 Pendent Mounting Bracket for Mini Dome Camera Appearance Hik White Range of Application Suitable for dome camera pendent mounting Material Aluminum Alloy Dimension 150x573mm Weight 1290g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CS58A1P-IRS, DS-2CS54A1P-IR, DS-2CD2512F-I(W), DS-2CD2532F-I(W), DS-2CD7133-E, DS-2CD7153-E, DS-2CD7164-E Installation Step: ① Choose the appropriate wall to install the ceilin...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1271ZJ-120(Black)
DS-1271ZJ-120 Pendent Mounting Bracket for Mini Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof rubber suits for indoor/outdoor design The internal wiring makes the feature looks better Outlet hole is reserved for convenient wiring indoor Better water proof design Dimension: Order Model: DS-1271ZJ-120 Parameter: Model Parameters DS-1271ZJ-120 Pendent Mounting Bracket for Mini Dome Camera Appearance Hikvision White Range of Application Suitable for dome camera pendent mounting Material Aluminum Alloy Dimension Φ150x573mm Weight 1290g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CS58A1P-IRS, DS-2CS54A1P-IR, DS-2CD2512F-I(W), DS-2CD2532F-I(W), DS-2CD7133-E, DS-2CD7153-E, DS-2CD7164-E Installation Step: ① Choose the appropriate wall to install the ceiling ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-1271ZJ-130
DS-1271ZJ-130 Pendent Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Cable hole on bracket makes the feature better Design of cap is for convenient wiring Dimension: Order Model: DS-1271ZJ-130 Parameter: Model Parameters DS-1271ZJ-130 Pendent Mounting Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ150X565mm Weight 1900g Notice: The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CD7X3PF(NF)-E(I)(Z),DS-2CD793PFWD-E(I)(Z),DS-2CD793NFWD-E(I)(Z),DS-2CD7X4FWD-E(I)(Z) DS-2CD7XXF-E(I)(Z),DS-2CD783F-EP,DS-2CD4112F-(I),DS-2CD4112FWD-(I),DS-2CD4124F-(I),DS-2CD4132FWD-(I) Installation Step: ① Choose the appropriate wall to install the ceiling plate and wiring ② Connect pole and adaptor cap; wiring and screw up ③ Screw up in A & B and fix pendent pole and cap ④ Scr...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1271ZJ-130-TRL
DS-1271ZJ-130-TRL Pendant Mounting Bracket for Turret Camera Features Aluminum alloy material with surface spray treatment Waterproof design Design of cap is for convenient wiring Dimension Φ112.4 Φ90 Φ150 5 6 7 6-M4 Φ121.2 4-Φ8.5 Available Model DS-1271ZJ-130-TRL Parameters Model Parameters DS-1271ZJ-130-TRL Pendant Mounting Bracket for Turret Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ150x567mm Weight 1110g Notes The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 3kg...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-1271ZJ-130-TRL(Black)
DS-1271ZJ-130-TRL Pendant Mounting Bracket for Turret Camera Features Aluminum alloy material with surface spray treatment Waterproof design Design of cap is for convenient wiring Dimension Φ112.4 Φ90 Φ150 5 6 7 6-M4 Φ121.2 4-Φ8.5 Available Model DS-1271ZJ-130-TRL Parameters Model Parameters DS-1271ZJ-130-TRL Pendant Mounting Bracket for Turret Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ150x567mm Weight 1110g Notes The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 3kg...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1271ZJ-135
DS-1271ZJ-135 Pendent Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Cable hole on bracket makes the feature better Design of cap is for convenient wiring Dimension: Order Model: DS-1271ZJ-135 Parameter: Model Parameters DS-1271ZJ-135 Pendent Mounting Bracket for Dome Camera Appearance Hik White Material Aluminum Alloy Dimension 136x565mm Weight 1350g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CD2712F-I(S), DS-2CD2732F-I(S), DS-2CC52xxP(N)-VP series, DS-2CC52xxP(N)-AVPIR2 series Installation Step: ① Choose the appropriate wall to install the bracket and thread the cable ② Connect pole and adapter; thread cable and screw up ③ Screw up and complete the fixation of adapter and pole ④ Take off lower dome and lining ...
Warranty: 36 mon.
Datasheet
Availability: 51-100
DS-1271ZJ-140
DS-1271ZJ-140 Pendent Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Cable hole on bracket makes the feature better Design of cap is for convenient wiring Dimension: Order Model: DS-1271ZJ-140 Parameter: Model Parameters DS-1271ZJ-140 Pendent Mounting Bracket for Dome Camera Appearance Hik White Material Aluminum Alloy Dimension 150X565mm Weight 1900g Notice: The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Model Suitable: DS-2CC51xxP(N)-VP, DS-2CC51xxP(N)-VPIR, DS-2CC51xxP(N)-VPIRH 565 Unit:mm φ140 83.5 83.5 46 6-M4深8...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-1271ZJ-140-DM45
DS-1271ZJ-140-DM45 Pendant Mount Feature Aluminum alloy with surface spray treatment The cap facilitates the installation Applies to both indoor conditions, and outdoor conditions Dimension 545 .7 mm (21 .48 " ) Ø130 mm (5.12" ) Ø 140 mm (5.51" ) 3-M4 Ø 121.2 mm (4.77" ) Ø 150 mm (5.91" ) 4-Ø 8.5 mm (0.33" ) Available Model DS-1271ZJ-140-DM45 Parameter Model Parameters DS-1271ZJ-140-DM45 Pendant Mount Appearance Hikvision White Material Aluminum Alloy Dimension Ø 150 mm x 545.7 mm (5.91" x 21.48") Weight 1125 g (2.48 lb.) Notes The mount should be installed on the flat surface. The waterproof rubber is necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount. The mount’s maximum load capacity is 3 kg (6.61 lb.). 0100001080511...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1271ZJ-DM25
DS-1271ZJ-DM25 Pendant Mounting Bracket for Fisheye Camera Feature Aluminum alloy material with surface spray treatment Waterproof design Dimension Φ 1 4 9 . 5 m m ( 5 . 8 9" ) 3-M4 5 5 5 m m ( 2 1. 9 " ) Φ 1 2 1 m m ( 4 . 7 6" ) Φ 1 5 0 m m ( 5 . 9 0" ) 4 - Φ 8 . 5 m m ( 0 . 3 3" ) Available Model DS-1271ZJ-DM25 Parameter Model Parameters DS-1271ZJ-DM25 Pendant Mounting Bracket for Fisheye Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ 150 mm x 555 mm (5.90" x 21.9") Weight 1930 g (4.3 lb.) Note The bracket should be installed on the flat surface. The waterproof rubber is necessary for the outdoor application. The ceiling must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket. The bracket’s maximum load cap...
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-1271ZJ-DM25(Black)
DS-1271ZJ-DM25 Pendant Mounting Bracket for Fisheye Camera Feature Aluminum alloy material with surface spray treatment Waterproof design Dimension Φ 1 4 9 . 5 m m ( 5 . 8 9" ) 3-M4 5 5 5 m m ( 2 1. 9 " ) Φ 1 2 1 m m ( 4 . 7 6" ) Φ 1 5 0 m m ( 5 . 9 0" ) 4 - Φ 8 . 5 m m ( 0 . 3 3" ) Available Model DS-1271ZJ-DM25 Parameter Model Parameters DS-1271ZJ-DM25 Pendant Mounting Bracket for Fisheye Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ 150 mm x 555 mm (5.90" x 21.9") Weight 1930 g (4.3 lb.) Note The bracket should be installed on the flat surface. The waterproof rubber is necessary for the outdoor application. The ceiling must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket. The bracket’s maximum load cap...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0

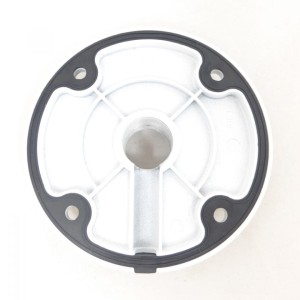

DS-1271ZJ-DM26
DS-1271ZJ-DM26 Pendent Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Dimension: Order Model: DS-1271ZJ-DM26 Parameter: Model Parameters DS-1271ZJ-DM26 Pendent Mounting Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ185x676mm Weight 2150g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above. 8.5...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
