DS-1271ZJ-120(Black)

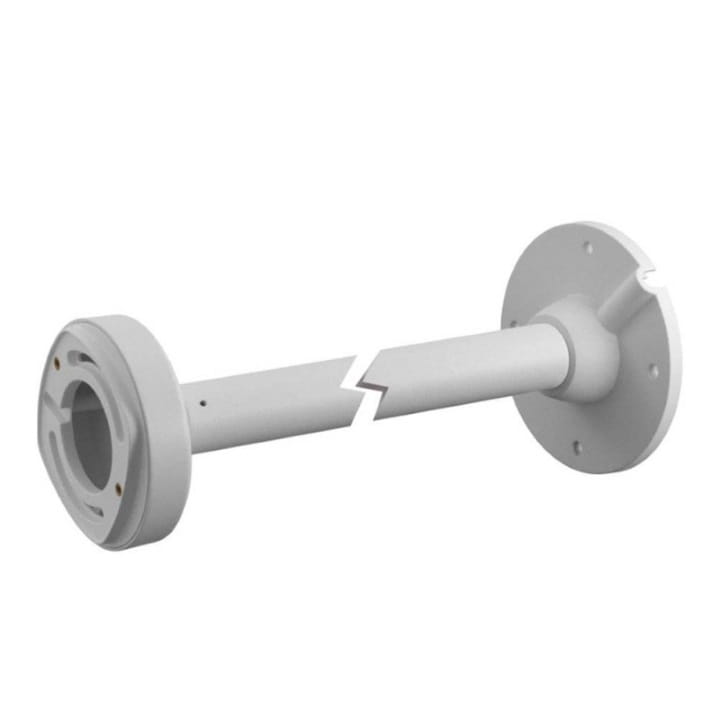

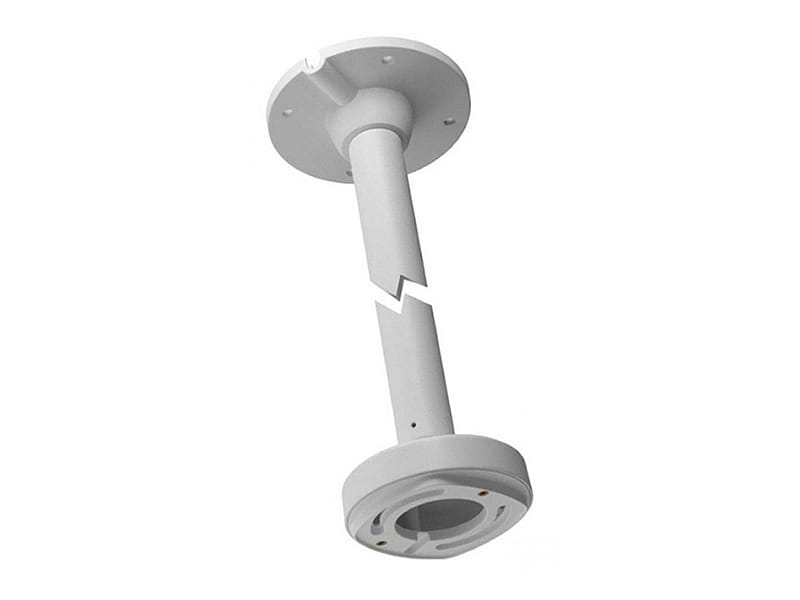

DS-1271ZJ-120      Pendent Mounting Bracket for  Mini Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   Waterproof rubber suits for indoor/outdoor design   The internal wiring makes the feature looks better   Outlet hole is reserved for convenient wiring  indoor   Better water proof design  Dimension:      Order Model:  DS-1271ZJ-120  Parameter:  Model    Parameters  DS-1271ZJ-120  Pendent Mounting Bracket for  Mini Dome Camera  Appearance Hikvision White  Range of  Application  Suitable for dome camera pendent mounting  Material Aluminum Alloy  Dimension Φ150x573mm  Weight 1290g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG  Model Suitable:  DS-2CS58A1P-IRS, DS-2CS54A1P-IR, DS-2CD2512F-I(W), DS-2CD2532F-I(W), DS-2CD7133-E, DS-2CD7153-E, DS-2CD7164-E  Installation Step:  ① Choose the appropriate  wall to install the ceiling ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1271ZJ-120


Pendent Mounting Bracket for
Mini Dome Camera
Features:
 Aluminum alloy material with surface spray
treatment
 Waterproof rubber suits for indoor/outdoor design
 The internal wiring makes the feature looks better
 Outlet hole is reserved for convenient wiring
indoor
 Better water proof design
Dimension:


Order Model:
DS-1271ZJ-120
Parameter:
Model

Parameters
DS-1271ZJ-120
Pendent Mounting Bracket for
Mini Dome Camera
Appearance Hikvision White
Range of
Application
Suitable for dome camera pendent mounting
Material Aluminum Alloy
Dimension Φ150x573mm
Weight 1290g
Notice:
 The bracket should be installed on flat wall
 Waterproof rubber is necessary for outdoor application
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CS58A1P-IRS, DS-2CS54A1P-IR, DS-2CD2512F-I(W), DS-2CD2532F-I(W), DS-2CD7133-E, DS-2CD7153-E, DS-2CD7164-E
Installation Step:
① Choose the appropriate
wall to install the ceiling
plate
② Connect suspender and
adapter; thread the cable
and screw up
③ Screw up and fix the
adapter to pole
④ Take off the lower dome and
check the hole site of adapter
plate





Waterproof rubber is necessary for
outdoor application

A&B: Tightening Screw



C: DS-2CS58A1XX,DS-2CD25XX
D: DS-2CD71XX
⑤ Install the adapter to
the bracket and screw
up
⑥ Connect the cable and fix
the camera onto the
adapter plate
⑦ Modify the angle of view,
install the lower dome
and screw up
⑧ Installation complete.


Note: The actual bracket may vary from the picture above.
