DS-1271ZJ-110

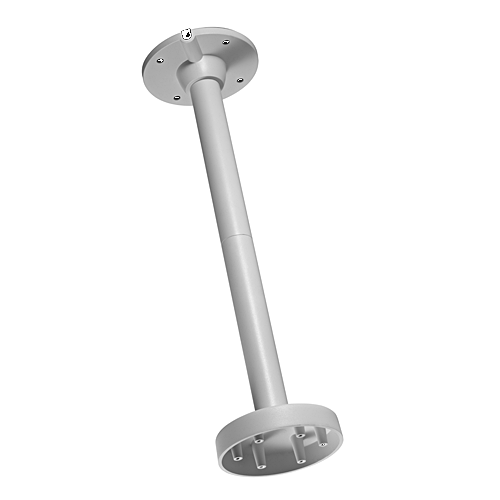

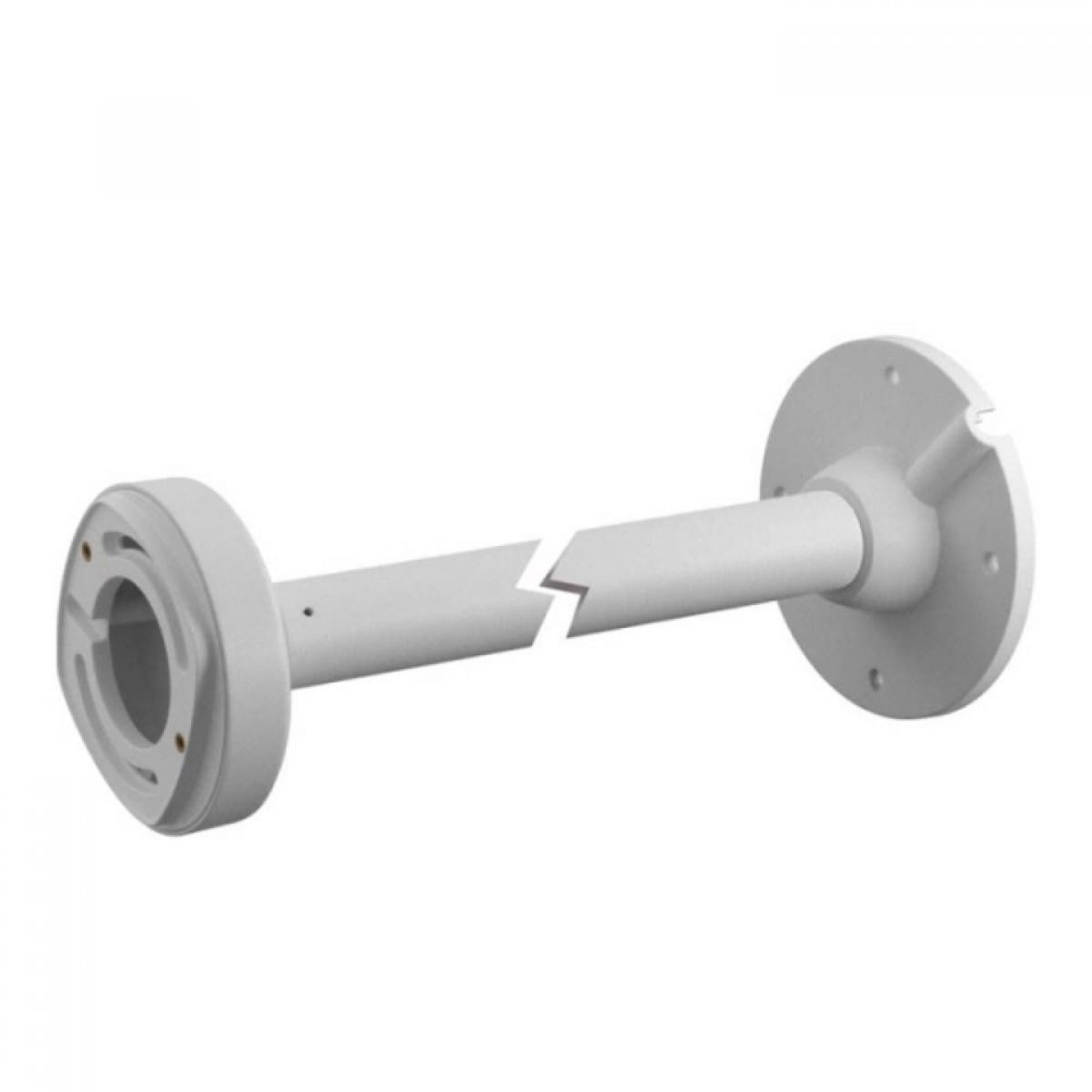

DS-1271ZJ-110      Pendent Mounting Bracket for  Mini Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   Indoor/Outdoor general design   Internal routed cable design   Cable entrance is reserved for convenient wiring  indoor   Better water proof design  Dimension:      Order Model:  DS-1271ZJ-110  Parameter:  Model    Parameters  DS-1271ZJ-110  Pendent Mounting Bracket for Dome Camera  Appearance Hik White  Range of  Application  Suitable for dome camera pendent mounting  Material Aluminum Alloy  Dimension 150x560mm  Weight 1270g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG  Model Suitable:  DS-2CC51D3S-VPIR, DS-2CD2112-(I), DS-2CD2132-(I)  Installation Step:  ① Choose the appropriate  wall to install the ceiling  plate and thread the  cable  ② Connect pole and  adapter; thread cable and  screw up  ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1271ZJ-110


Pendent Mounting Bracket for
Mini Dome Camera
Features:
 Aluminum alloy material with surface spray
treatment
 Indoor/Outdoor general design
 Internal routed cable design
 Cable entrance is reserved for convenient wiring
indoor
 Better water proof design
Dimension:


Order Model:
DS-1271ZJ-110
Parameter:
Model

Parameters
DS-1271ZJ-110
Pendent Mounting Bracket for Dome Camera
Appearance Hik White
Range of
Application
Suitable for dome camera pendent mounting
Material Aluminum Alloy
Dimension 150x560mm
Weight 1270g
Notice:
 The bracket should be installed on flat wall
 Waterproof rubber is necessary for outdoor application
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CC51D3S-VPIR, DS-2CD2112-(I), DS-2CD2132-(I)
Installation Step:
① Choose the appropriate
wall to install the ceiling
plate and thread the
cable
② Connect pole and
adapter; thread cable and
screw up
③ Screw up and complete the
fixation of adapter and pole
④ Take off lower dome, inner
module and lining





Waterproof rubber is necessary for
outdoor application

A&B: Tightening Screw



⑤ Thread the cable and fix
inner module to
adaptor
⑥ Adjust the view angle of
camera
⑦ Install lining and lower dome
alternatively to inner module
and fix them
⑧ Installation complete.

Note: The figure of Speed Dome in “Installation Step” is only for your reference; please adhere to our real products.
