DS-1272ZJ-110

DS-1272ZJ-110      Wall Mounting Bracket for Mini Dome Camera    Features:   Aluminum alloy material with surface spray  treatment   Good feature with the hole of cable entrance   Better water proof design   Convenient installation with the design of cap  Dimension:          Order Model:  DS-1272ZJ-110  Parameter:  Model    Parameters  DS-1272ZJ-110  Wall Mounting Bracket for  Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension 122x120x169mm  Weight 480g  Notice:   Pay attention to the color matching when select bracket   The bracket should be installed on flat wall   The wall must be capable of supporting over 3 times as much as  the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG    Installation Step:  ① Choose the appropriate  wall to mount the  bracket  ② Remove the lower dome of the  dome camera  ③ Install the base to the  cap, fix the screw and  modify the angle of  view  ④ Install the transparent  housing and complete ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1272ZJ-110

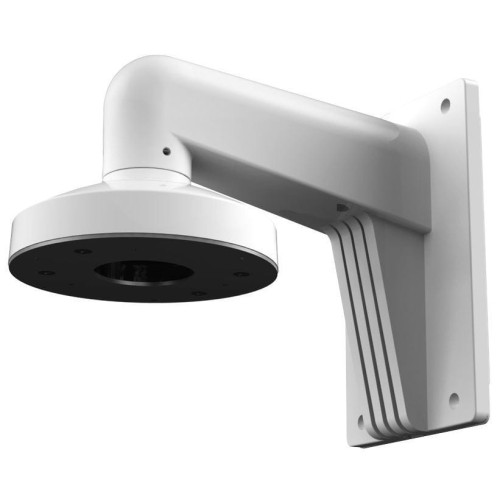

Wall Mounting Bracket for Mini Dome Camera

Features:
 Aluminum alloy material with surface spray
treatment
 Good feature with the hole of cable entrance
 Better water proof design
 Convenient installation with the design of cap
Dimension:




Order Model:
DS-1272ZJ-110
Parameter:
Model

Parameters
DS-1272ZJ-110
Wall Mounting Bracket for
Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension 122x120x169mm
Weight 480g
Notice:
 Pay attention to the color matching when select bracket
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as much as
the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG

Installation Step:
① Choose the appropriate
wall to mount the
bracket
② Remove the lower dome of the
dome camera
③ Install the base to the
cap, fix the screw and
modify the angle of
view
④ Install the transparent
housing and complete
the combination of cap
and dome

⑤ Install the combination to
the bracket and complete
the installation



Note: The figure of Dome in “Installation Step” is only for your reference; please adhere to our real products.







Unit ： mm
122
85.7
85.7
120 4-
8.5
83.5
169
5-M4D8
