DS-1281ZJ-M  Inclined Ceiling Mount Bracket for  Dome Camera    Features:   Aluminum alloy material with surface spray  treatment   Waterproof design  Dimension:          Order Model:  DS-1281ZJ-M  Parameter:  Model    Parameters  DS-1281ZJ-M  Inclined Ceiling Mount Bracket for  Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ157x165.5x60mm  Weight 586g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG    Note: The actual dome camera may vary from the picture above....

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

HKA-A24250-230  AC24V Power Supply  Function Description：   This product is a universal AC - AC power supply（Linear Transformer）.   Support multiple protection function, including short-circuit protection and over-  temperature protection.   Designed to meet CE standard.   Suitable for IPC, PTZ dome cameras and other video surveillance front end products  which need 24V power supply.  Order Model：  HKA-A24250-230  Dimension：         Specifications：  Model  Specifications  HKA-A24250-230  AC24V  Color Black  Mount Option Two-wire  Input Requirement AC220V/50Hz  Output Requirement AC24V/2.5A,  No-load Output Voltage 26.5±1V  Output Power 60W Max  Input Interface CE  Output Plug Type Two-wire  Wire Input wire:1000±100mm, Output wire:1500±100mm  Operating Temperature and  Humidity  -10℃ - +40℃, Humidity: 30%~85%  Dimension（mm） 96x81x64.5 mm  Weight 1230g...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

HKA-A24250-230  AC24V Power Supply  Function Description：   This product is a universal AC - AC power supply（Linear Transformer）.   Support multiple protection function, including short-circuit protection and over-  temperature protection.   Designed to meet CE standard.   Suitable for IPC, PTZ dome cameras and other video surveillance front end products  which need 24V power supply.  Order Model：  HKA-A24250-230  Dimension：         Specifications：  Model  Specifications  HKA-A24250-230  AC24V  Color Black  Mount Option Two-wire  Input Requirement AC220V/50Hz  Output Requirement AC24V/2.5A,  No-load Output Voltage 26.5±1V  Output Power 60W Max  Input Interface CE  Output Plug Type Two-wire  Wire Input wire:1000±100mm, Output wire:1500±100mm  Operating Temperature and  Humidity  -10℃ - +40℃, Humidity: 30%~85%  Dimension（mm） 96x81x64.5 mm  Weight 1230g...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE56D0T-IRMMF  HD 1080p Indoor IR Dome Camera    * 2 megapixel high performance CMOS  * Analog HD output, up to 1080p resolution  * Day/Night switch  * Smart IR  * Up to 20 m IR distance  * Switchable TVI/AHD/CVI/CVBS  Key Features                Specifications          Camera  Image Sensor 2 MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens  2.8 mm, 3.6 mm, 6 mm optional  Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 350°, Tilt: 0° to 70°, Rotation: 0° to 350°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62 dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  IR Range Up to 20 m  Dimension Φ 98 mm x 65.4 mm (3.86" x 2.57")  Weight 240 g (0.53 lb.)  Order Model  DS-2CE56D0T-IRMMF     <...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE56D0T-IRMMF  HD 1080p Indoor IR Dome Camera    * 2 megapixel high performance CMOS  * Analog HD output, up to 1080p resolution  * Day/Night switch  * Smart IR  * Up to 20 m IR distance  * Switchable TVI/AHD/CVI/CVBS  Key Features                Specifications          Camera  Image Sensor 2 MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens  2.8 mm, 3.6 mm, 6 mm optional  Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 350°, Tilt: 0° to 70°, Rotation: 0° to 350°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62 dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  IR Range Up to 20 m  Dimension Φ 98 mm x 65.4 mm (3.86" x 2.57")  Weight 240 g (0.53 lb.)  Order Model  DS-2CE56D0T-IRMMF     <...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE56D0T-IRP  HD1080P Indoor IR Turret Camera     2 Megapixel high-performance CMOS   Analog HD output, up to 1080P resolution   True Day/Night, Smart IR   Up to 20m IR distance    Key Features                  Specifications    Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920(H)*1080(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm optional  Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  General  Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)  Power Supply 12 VDC±15%  Power Consumption Max. 4W  IR Range Up to 20m  Dimension Φ89.5 x 69.8 mm(Φ3.52” x 2.75”)  Weight 250 g  Order Models  DS-2CE56D0T-IRP              Dimension...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE56D0T-IRP  HD1080P Indoor IR Turret Camera     2 Megapixel high-performance CMOS   Analog HD output, up to 1080P resolution   True Day/Night, Smart IR   Up to 20m IR distance    Key Features                  Specifications    Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920(H)*1080(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm optional  Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  General  Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)  Power Supply 12 VDC±15%  Power Consumption Max. 4W  IR Range Up to 20m  Dimension Φ89.5 x 69.8 mm(Φ3.52” x 2.75”)  Weight 250 g  Order Models  DS-2CE56D0T-IRP              Dimension...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE56D0T-IRP  HD1080P Indoor IR Turret Camera     2 Megapixel high-performance CMOS   Analog HD output, up to 1080P resolution   True Day/Night, Smart IR   Up to 20m IR distance    Key Features                  Specifications    Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920(H)*1080(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm optional  Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  General  Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)  Power Supply 12 VDC±15%  Power Consumption Max. 4W  IR Range Up to 20m  Dimension Φ89.5 x 69.8 mm(Φ3.52” x 2.75”)  Weight 250 g  Order Models  DS-2CE56D0T-IRP              Dimension...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE56D0T-IRMMF  HD 1080p Indoor IR Dome Camera    * 2 megapixel high performance CMOS  * Analog HD output, up to 1080p resolution  * Day/Night switch  * Smart IR  * Up to 20 m IR distance  * Switchable TVI/AHD/CVI/CVBS  Key Features                Specifications          Camera  Image Sensor 2 MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920 (H) x 1080 (V)  Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens  2.8 mm, 3.6 mm, 6 mm optional  Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 350°, Tilt: 0° to 70°, Rotation: 0° to 350°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62 dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  IR Range Up to 20 m  Dimension Φ 98 mm x 65.4 mm (3.86" x 2.57")  Weight 240 g (0.53 lb.)  Order Model  DS-2CE56D0T-IRMMF     <...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-KABD9613-G  Junction Box    Key Feature  * Contains installation accessories of DS-KD9613 series door  stations, including junction box, screws, etc.  * Material of the junction box: SECC  * Supports flush mounting with junction box  Specification  Parameters  Material SECC  Working  temperature  -40° C to +60° C(-40° F to 140° F)  Working  humidity  10% to 95%  Dimension  404.3 x 169.8 x 40 mm (15.92" x 6.69" x  1.57")  Available Model  DS-KABD9613-G            Dimension...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-1281ZJ-S  Inclined Ceiling Mount Bracket  for Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   Waterproof design   Cable hole on bracket makes the feature  better   Design with junction box   Dimension:            Order Model:  DS-1281ZJ-S  Parameter:  Model    Parameters  DS-1281ZJ-S  Junction Box for  Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ137 x 56.5x 147mm  Weight 472g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG      Note: The actual bracket may vary from the picture above....

Warranty: 36 mon.

Datasheet

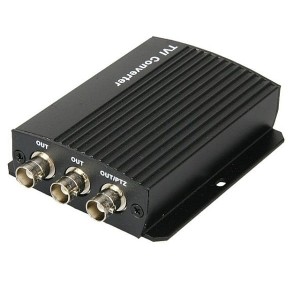

DS-1H31 HDTVI Distributor        Overview  HD-DS-1H31 Series HDTVI Distributor can distribute the  inputting 1-ch HDTVI video signal to 3-ch, outputs the 3-ch  signal in parallel, supports 1-ch coaxitron output, and realizes  that multiple HDTVI receiving devices are able to share the  same signal source.  Available Models  DS-1H31 HDTVI distributor    Features   Distributes the inputting 1-ch HDTVI video signal to  3-ch signal output.   Connectable to terminal devices such as HDTVI DVR  and matrix.   Supports all the HDTVI standards, including V2.0 video  standard signal.   Supports 1-ch coaxitron output.   Lossless and uncompressed transmission.   Satisfies the requirements of working in high or low  temperature.   Up to 100000 hours of mean time between failures.        Physical Interfaces  Front panel:      Index Name  1 12VDC Power Supply  2 1-ch HDTVI video input  3 Video Source LED Indicator  4 Power LED  Rear panel:      Index Name  1 BNC Interface  2 BNC Interface  3 BNC Interface                                Specif...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-1330HZ   Indoor Housing    Key Features：   New side cover design, easy for installation   Composite fiber material, low weight   IP54, Good dustproof performance   Silk printing design in lens cover  Order Models：  DS-1330HZ  Dimensions：    Brackets：      Specification：  Model  Parameter  DS-1330HZ  Indoor Housing  Protection Level IP54  Material Composite fiber  Dimension(mm) 290.5x142.9x92.5mm  Weight 640g                                    290.5  104.551   70  46.5  142.9  92.5  1  4UNC-20 D7mm    DS-1203ZJ Pendant Mounting Bracket  DS-1214ZJ Pole Mounting Bracket    DS-1293ZJ Wall Mounting Bracket    DS-1269ZJ Pendant Mounting Bracket...

Warranty: 36 mon.

Datasheet

1.25Gbps Single Mode BIDI SFP Transceiver  HK-1.25G-20-1310  -1-         Features  a. Single Power Supply 3.3V  b. Small Form Factor Pluggable (SFP) MSA Compatible  c. Single Fiber Bi-Direc tion LC Connector  d. Hot Pluggable Capability  e. Compliant With ROHS Standard     Applications  a. Fiber Channel  b. Gigabit Ethernet  c. Switch to Switch Interface     Absolute maximum ratings  Parameter Symbol Min. Max. Unit  Storage Temperature T  S   -40 +85 ℃  Supply Voltage V  CC   -0.5 +3.6 V  Voltage at any Input Pin V  IN  0 Vcc V  Power supply current I  CC   - 300 mA     Recommended Operating Conditions  Parameter Symbol Min. Typ Max. Unit  Operating Temperature  T  op1   0 - +70  ℃  T  op2   -40 - +85  Supply Voltage V  CC   3.1 3.3 3.5 V  Data Rate - - 1250 - Mb/s     Operating Conditions  TransmitterT=25℃, V  CC  =3.1~3.5V)  Parameter Symbol Min. Typ. Max. Unit  Central Wavelength λ  C    1280 1310 1360  nm  1480 1490 1500  1520 1550 1580  Spectral Width Δλ  DFB@-20dB - - 1  nm    ...

Warranty: 36 mon.

Datasheet

DS-1601ZJ  Wall Mount Bracket Indoor/Outdoor    Features:   Aluminum alloy material with surface spray treatment   General design for indoor/outdoor   Better water proof design   With safety rope, the assembling is safer and more  convenient  Dimension:                Order model:  DS-1601ZJ  Parameters:  Model  Parameter  DS-1601ZJ  Wall Mount Bracket In/Outdoor  Color Hik white  Feature  Suitable for speed dome pendent  mounting  Material Aluminum alloy  Dimension 97X182X305mm  Weight 850g  Notice:   The bracket should be installed on the flat surface of a  wall   The wall must be capable of supporting more than 3  times the total capacity of the camera and the bracket.  Installation Step:  ① Choose appropriate wall for bracket installation    ② Thread the cable    ③ Tie the safety rope to hook and thread the cable              A: Safety rope B: Hook  ④ Install the speed dome and screw up the set screw;  installation complete            C: Set screw  Note: The actual bracket may vary from the picture above.  Unit...

Warning! Product withdrawn from production!

Replacement product: DS-1602ZJ

Replacement product code: 302700684

Warranty: 36 mon.

Datasheet

DS - 1227ZJ-DM2 6  In-Ceiling Mounting Bracket for Dome Camer a    Features   Steel and plastic material with surface spray treatment   Magnet ic design facilitates dome camera installation   In- ceiling mounting saves installation space    Dimension    120°    Φ 222 mm  (8.74")    98.08 mm  (3.86")  Φ 224.95 mm  (8.86")    * Φ 222 mm (Φ 8.86") is the diameter for the cable hole on the ceiling.  Available Model  DS-12 27 ZJ -DM26  Parameters  Model  Parameters    DS-1227ZJ-DM26  In-Ceiling Mounting Bracket for Dome Camera  Appearance Hikvision White  Material Steel and Plastic  Dimension Φ 224.95 mm x 98.08 mm (Φ 8.86" x 3.86")  Weight 660 g (1.46 lb.)  otes   The bracket should be installed on the flat ceiling .   The ceiling must be capable of supporting over 3 times as much as the total weight of the camera and the  bracket .   The bracket’s maximum load capacity...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
