DS-1272ZJ-110(Black)

DS-1272ZJ-110      Wall Mounting Bracket for Dome Camera  Features:   Aluminum alloy material with surface spray  treatment   Exquisite cable entrance design   Waterproof rubber blanket for outdoor application   Convenient installation coordinating with adaptor  Dimension:      Order Model:  DS-1272ZJ-110  Parameter:  Model    Parameters  DS-1272ZJ-110  Wall Mounting Bracket for  Dome Camera  Appearance Hik White  Range of  Application  Dome camera wall mounting  Material Aluminum Alloy  Dimension 120x122x169mm  Weight 420g  Notice:   The bracket should be installed on flat wall   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG  Model Suitable:  DS-2CC51D3S-VPIR, DS-2CC52D5S-VPIR, DS-2CD2112(D)-(I)、  DS-2CD2132(D)-(I)  Installation Step:  ① Choose appropriate wall  to install the bracket and  thread the cable  ② Fix adaptor to bracket and  threa...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

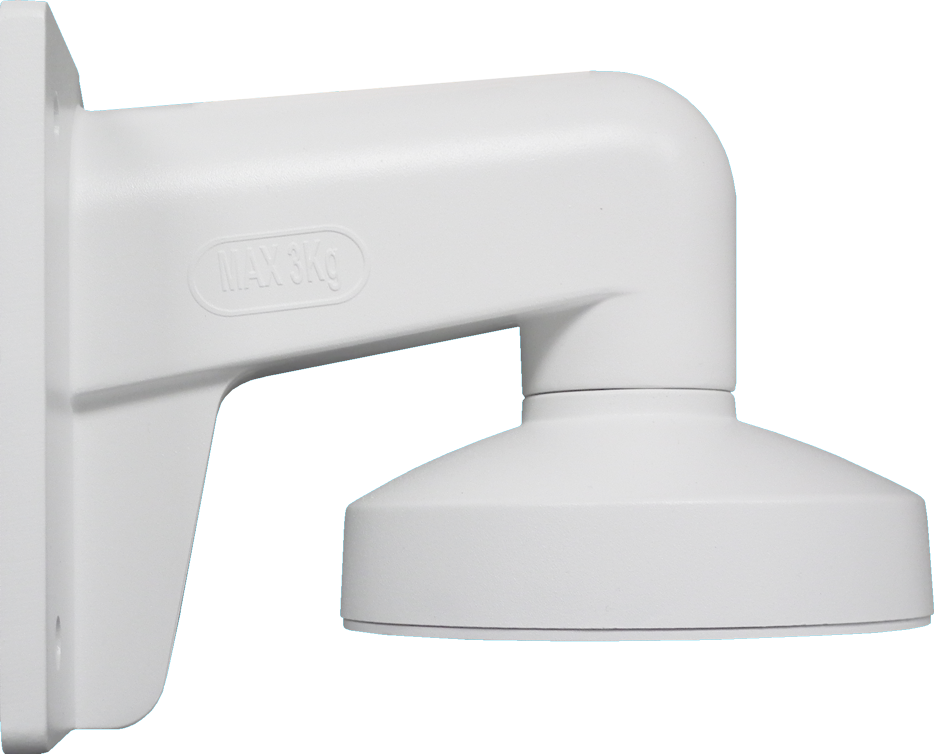

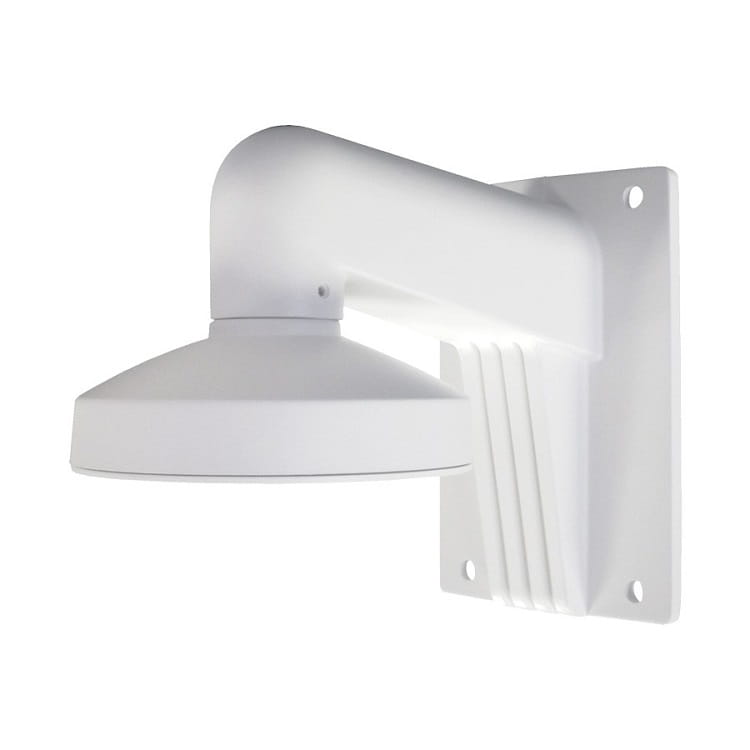

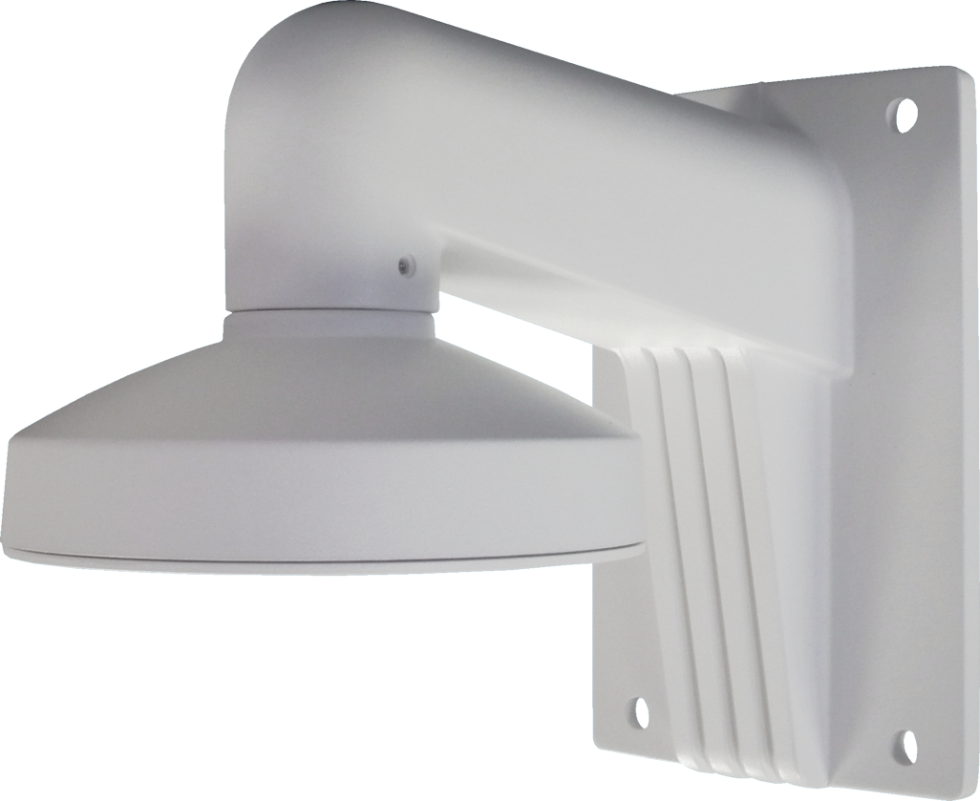

DS-1272ZJ-110


Wall Mounting Bracket for Dome Camera
Features:
 Aluminum alloy material with surface spray
treatment
 Exquisite cable entrance design
 Waterproof rubber blanket for outdoor application
 Convenient installation coordinating with adaptor
Dimension:


Order Model:
DS-1272ZJ-110
Parameter:
Model

Parameters
DS-1272ZJ-110
Wall Mounting Bracket for
Dome Camera
Appearance Hik White
Range of
Application
Dome camera wall mounting
Material Aluminum Alloy
Dimension 120x122x169mm
Weight 420g
Notice:
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CC51D3S-VPIR, DS-2CC52D5S-VPIR, DS-2CD2112(D)-(I)、
DS-2CD2132(D)-(I)
Installation Step:
① Choose appropriate wall
to install the bracket and
thread the cable
② Fix adaptor to bracket and
thread the cable
③ Screw up and complete
the fixation of adaptor
④ Take off lower dome,
inner module and
lining





A: Cable entry hole

B: Fastening screw







⑤ Complete wiring and fix
dome module to cap
⑥ Fix the dome module and
adjust the angle of view

⑦ Install lining and lower
dome to dome module
and screw up
⑧ Installation complete








Note: The actual bracket may vary from the picture above.
Unit：mm
122
85.7
85.7
120
4-
8.5
83.5
169
5-M4深8
