HKA-A24250-230,AC24V/2.5A, EU
Description

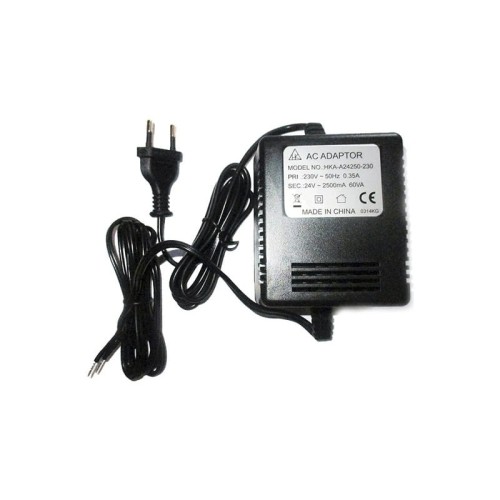

HKA-A24250-230 AC24V Power Supply Function Description: This product is a universal AC - AC power supply(Linear Transformer). Support multiple protection function, including short-circuit protection and over- temperature protection. Designed to meet CE standard. Suitable for IPC, PTZ dome cameras and other video surveillance front end products which need 24V power supply. Order Model: HKA-A24250-230 Dimension: Specifications: Model Specifications HKA-A24250-230 AC24V Color Black Mount Option Two-wire Input Requirement AC220V/50Hz Output Requirement AC24V/2.5A, No-load Output Voltage 26.5±1V Output Power 60W Max Input Interface CE Output Plug Type Two-wire Wire Input wire:1000±100mm, Output wire:1500±100mm Operating Temperature and Humidity -10℃ - +40℃, Humidity: 30%~85% Dimension(mm) 96x81x64.5 mm Weight 1230g...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
HKA-A24250-230
AC24V Power Supply
Function Description:
This product is a universal AC - AC power supply(Linear Transformer).
Support multiple protection function, including short-circuit protection and over-
temperature protection.
Designed to meet CE standard.
Suitable for IPC, PTZ dome cameras and other video surveillance front end products
which need 24V power supply.
Order Model:
HKA-A24250-230
Dimension:
Specifications:
Model
Specifications
HKA-A24250-230
AC24V
Color Black
Mount Option Two-wire
Input Requirement AC220V/50Hz
Output Requirement AC24V/2.5A,
No-load Output Voltage 26.5±1V
Output Power 60W Max
Input Interface CE
Output Plug Type Two-wire
Wire Input wire:1000±100mm, Output wire:1500±100mm
Operating Temperature and
Humidity
-10℃ - +40℃, Humidity: 30%~85%
Dimension(mm) 96x81x64.5 mm
Weight 1230g
