DS-1227ZJ-DM26
Description
DS - 1227ZJ-DM2 6 In-Ceiling Mounting Bracket for Dome Camer a Features Steel and plastic material with surface spray treatment Magnet ic design facilitates dome camera installation In- ceiling mounting saves installation space Dimension 120° Φ 222 mm (8.74") 98.08 mm (3.86") Φ 224.95 mm (8.86") * Φ 222 mm (Φ 8.86") is the diameter for the cable hole on the ceiling. Available Model DS-12 27 ZJ -DM26 Parameters Model Parameters DS-1227ZJ-DM26 In-Ceiling Mounting Bracket for Dome Camera Appearance Hikvision White Material Steel and Plastic Dimension Φ 224.95 mm x 98.08 mm (Φ 8.86" x 3.86") Weight 660 g (1.46 lb.) otes The bracket should be installed on the flat ceiling . The ceiling must be capable of supporting over 3 times as much as the total weight of the camera and the bracket . The bracket’s maximum load capacity...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS - 1227ZJ-DM2 6

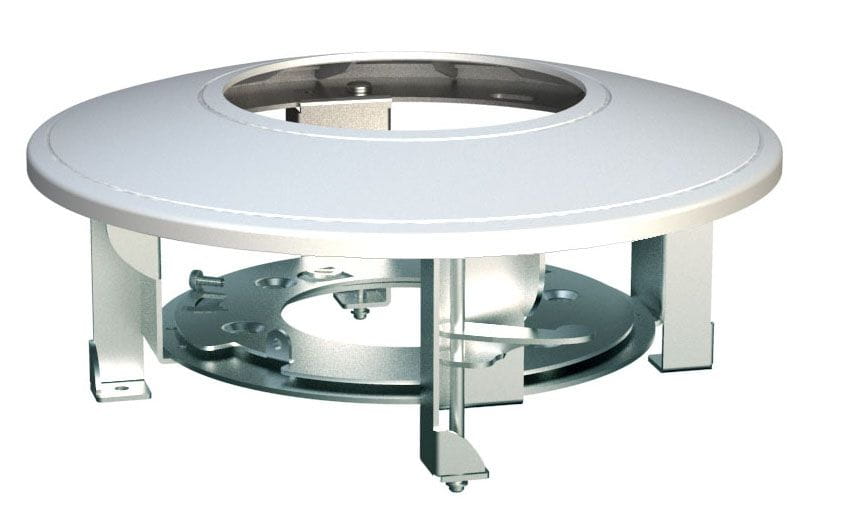

In-Ceiling Mounting Bracket for Dome Camer a
Features
Steel and plastic material with surface spray treatment
Magnet ic design facilitates dome camera installation
In- ceiling mounting saves installation space
Dimension
120°
Φ 222 mm
(8.74")
98.08 mm
(3.86")
Φ 224.95 mm
(8.86")
* Φ 222 mm (Φ 8.86") is the diameter for the cable hole on the ceiling.
Available Model
DS-12 27 ZJ -DM26
Parameters
Model
Parameters
DS-1227ZJ-DM26
In-Ceiling Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Steel and Plastic
Dimension Φ 224.95 mm x 98.08 mm (Φ 8.86" x 3.86")
Weight 660 g (1.46 lb.)
otes
The bracket should be installed on the flat ceiling .
The ceiling must be capable of supporting over 3 times as much as the total weight of the camera and the
bracket .
The bracket’s maximum load capacity is 3 Kg (6.6 lb.).
