DS-1H31 HDTVI Distributor



Overview
HD-DS-1H31 Series HDTVI Distributor can distribute the
inputting 1-ch HDTVI video signal to 3-ch, outputs the 3-ch
signal in parallel, supports 1-ch coaxitron output, and realizes
that multiple HDTVI receiving devices are able to share the
same signal source.
Available Models
DS-1H31 HDTVI distributor

Features
 Distributes the inputting 1-ch HDTVI video signal to
3-ch signal output.
 Connectable to terminal devices such as HDTVI DVR
and matrix.
 Supports all the HDTVI standards, including V2.0 video
standard signal.
 Supports 1-ch coaxitron output.
 Lossless and uncompressed transmission.
 Satisfies the requirements of working in high or low
temperature.
 Up to 100000 hours of mean time between failures.



Physical Interfaces

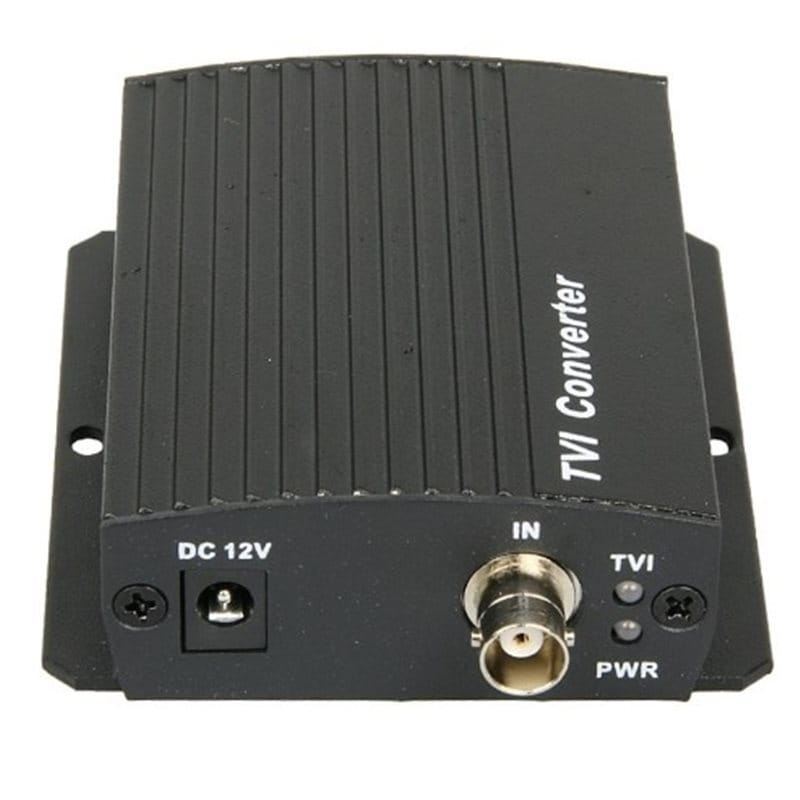

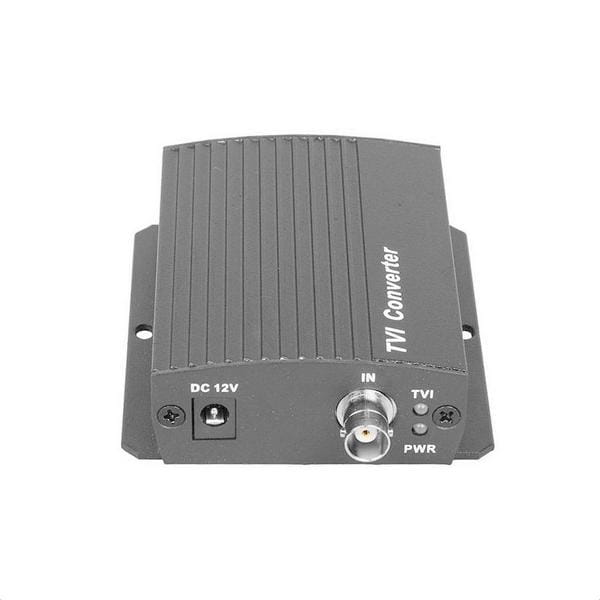

Front panel:


Index Name
1 12VDC Power Supply
2 1-ch HDTVI video input
3 Video Source LED Indicator
4 Power LED

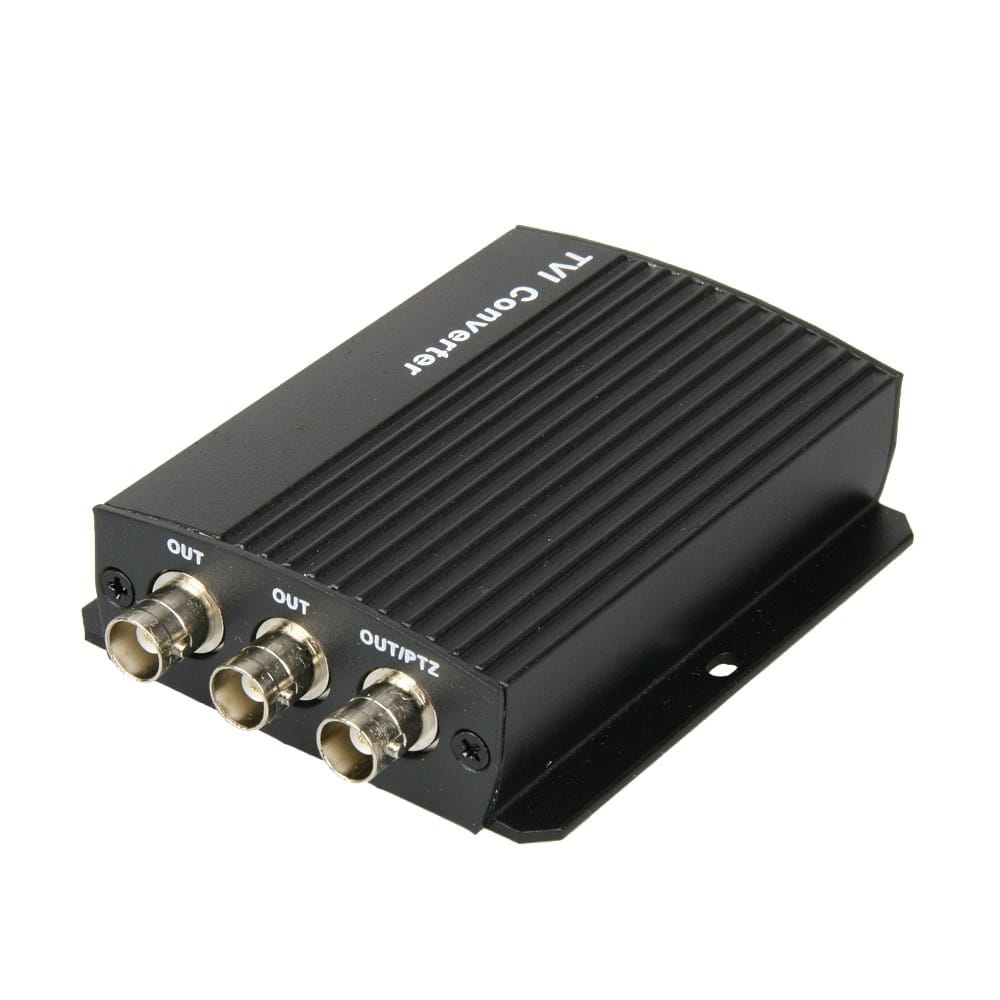

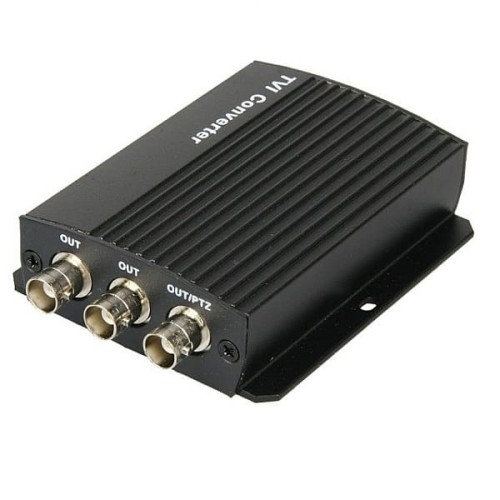

Rear panel:


Index Name
1 BNC Interface
2 BNC Interface
3 BNC Interface















Specifications
Model DS-1H31 HDTVI Distributor
Physical Interface BNC, BNC (3)
Input Level > 500 mVp-p
Output Level 1 Vp-p
Input Auto Cable Equalization 1080 p, 720 p, supporting 100M75-5 cable input with distance of 100M
Input Format 1080 p 25/30, 720 p 25/30/50/60, compatible with V2.0 HDTVI
Input/Output Impedance 75 Ω
Output Format 1080 p 25/30, 720 p 25/30/50/60, compatible with V2.0 HDTVI
Input/Output Impedance 75 Ω
Output Auto Cable Equalization 1080 p, 720 p, supporting 100M75-5 cable input with distance of 100M
LED Power LED, video source LED
Power Supply 12 VDC, 1A
Power Consumption ≤ 8 W
Working Humidity 10 % to 90 %
Working Temperature -30º C to + 75º C
Dimensions (WxDxH) 50 x 30 x 25 mm
Mounting Type Independent
