DAHUA

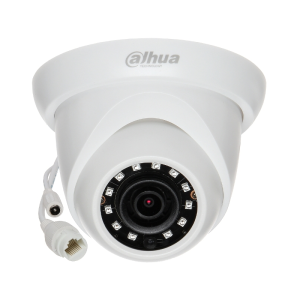

Lite Series | DH-IPC-HDW1531S     System Overview  The IR Megapixel Fixed camera delivers 5MP resolution with a  2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics  combined with a range of easy mounting solutions provides an excellent  choice for a variety of small to mid-size applications at an affordable  price.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  Intelligent Video Analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning messa...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

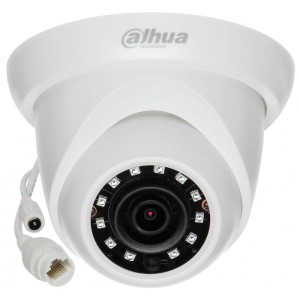

Lite Series | DH-IPC-HDW1531S     System Overview  The IR Megapixel Fixed camera delivers 5MP resolution with a  2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics  combined with a range of easy mounting solutions provides an excellent  choice for a variety of small to mid-size applications at an affordable  price.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  Intelligent Video Analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning messa...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

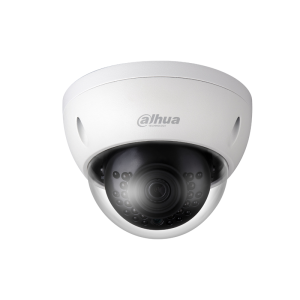

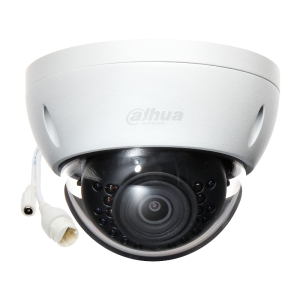

Lite Series | DH-IPC-HDBW1531E     System Overview  The IR Megapixel Fixed camera delivers 5MP resolution with a 2.8mm/  3.6mm fixed lens.The camera's elegant blend of aesthetics combined  with a range of easy mounting solutions provides an excellent choice for  a variety of small to mid-size applications at an affordable price.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  Intelligent Video Analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning message ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-XVR5104C-4KL-X    www.dahuasecurity.com    · H.265+/H.265 dual-stream video compression  · Supports HDCVI/AHD/TVI/CVBS/IP video inputs  · Max 6 channels IP camera inputs, each channel up to 8MP;  Max 24Mbps Incoming Bandwidth  · Smart Search and Intelligent Video System  DH-XVR5104C-4KL-X  4 Channel Penta-brid 4K Smart 1U Digital Video Recorder     Series  Lite     Plug&PlayP2P   2K     HDMI     4CH  Smart H.264+    H.265  System Overview  With the surveillance operators pursuing to HD/UHD which further adds the  storage and transmission cost, HDCVI H.265+/H.265 has been released to  incredibly decrease the required bitrate while ensuring the video quality in  realizing high resolution surveillance such as 4MP/4K.  The Lite Series is designed for high cost performance and quality. The range  offers a great solution for users facing budget constraints who both require  quality and performance. And with the adoption of Smart H.265+/H.265,  the series improves encoding efficiency, saving on bandwidth/storage costs,  and significantly reducing the Total Cost of Ownership (TCO).  Functions  Smart H.265+ ...

Warning! Product withdrawn from production!

Replacement product: XVR5104HS-4KL-X

Warranty: 36 mon.

Datasheet

www.dahuasecurity.com  DHI-NVR4108HS-4KS2/L  8 Channel Compact 4K&H.265 Lite Network Video Recorder    · New UI interface with more easier operation experience  · Smart H.265+/ Smart H.264+  · P2P remote surveillance, video play on mobile device  · 8–ch@1080P(30FPS), self-adaptive decoding capability  · Supports mainstream cameras of ONVIF and RTSP protocol  · VGA/HDMI simultaneous video output, maximum resolution of HDMI   is 4K  · Remote configuration and management of IPCs, such as setting   parameters, acquiring information and upgrading IPCs of the same   model in batches  · DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer   Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain   Name System)  Lite Series | DHI-NVR4108HS-4KS2/L     System Overview  This network video recorder is a highly cost-effective product, providing  functions such as local live view, multi-screen display, real-time storage  on local HDD, fast operation by mouse, remote management and  control.   Application  This NVR is suitable for places such as retail stores, families, cour...

Warranty: 36 mon.

Datasheet

Pro Series | DH-HAC-HFW2241T-Z-A     System Overview  Experience 1080P full HD video and the simplicity of reusing existing  coaxial infrastructure with HDCVI. The Starlight HDCVI camera with 120dB  true WDR presents a high quality image with rich details even in extreme  low-light conditions. It offers various motorized/fixed lens models with  a multi-language OSD and HD/SD switchable output. Its superior image  performance and starlight feature makes the camera an ideal choice  for mid to large-size businesses and projects where both highly reliable  surveillance and construction flexibility are needed.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees long-distance and real-time transmission  with...

Warranty: 36 mon.

Datasheet

EZ-IP | IPC-B2B20-ZS     System Overview  EZ-IP is perfect for small to medium size applications like home/  residential security, small retail shops, and other typical SMB  applications. It offers a perfect alternative to migrate from analog to an  IP system with its easy to use nature and cost effectiveness.  EZ-IP is fully in line with Dahua’s quality. Stable and reliable components  are utilized and Various tests such as anti-vibration, water resistance, and  aging tests are performed to ensure Dahua quality standards.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal for  applications with fluctuating lighting conditions, delivering color images  during the day and automatically switching to mono...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

EZ-IP | IPC-T2B20-L-ZS     System Overview  EZ-IP is perfect for small to medium size applications like home/  residential security, small retail shops, and other typical SMB  applications. It offers a perfect alternative to migrate from analog to an  IP system with its easy to use nature and cost effectiveness.  EZ-IP is fully in line with Dahua’s quality. Stable and reliable components  are utilized and Various tests such as anti-vibration, water resistance, and  aging tests are performed to ensure Dahua quality standards.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal for  applications with fluctuating lighting conditions, delivering color images  during the day and automatically switching to monoch...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

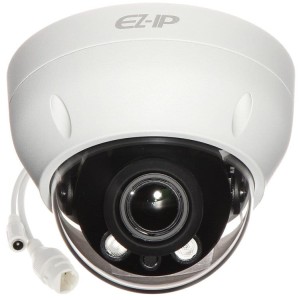

EZ-IP| IPC-D2B20-ZS     System Overview  EZ-IP is perfect for small to medium size applications like home/  residential security, small retail shops, and other typical SMB  applications. It offers a perfect alternative to migrate from analog to an  IP system with its easy to use nature and cost effectiveness.  EZ-IP is fully in line with Dahua’s quality. Stable and reliable components  are utilized and Various tests such as anti-vibration, water resistance, and  aging tests are performed to ensure Dahua quality standards.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal for  applications with fluctuating lighting conditions, delivering color images  during the day and automatically switching to monoc...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

www.dahuasecurity.com/pl  Seria Cooper | IPC-CB2C20-ZS-2812  Opis pr Oduktu cechy  przegląd    Kamera IP typu bullet z obiektywem zmiennoogniskowym  Smart codec (H.265+ & H.264+)  Inteligentne kodowanie to zoptymalizowana wersja standardowej  kompresji wideo (H.265 i H.264). Adaptacyjne kodowanie sceny  wykorzystuje dynamiczny ROI, GOP, inteligentną redukcję szumów  zapewniając wysokiej jakości obraz wideo bez obciążania sieci.  Technologia smart codec zmniejsza bitrate, co wpływa na zmniejszenie  wymagań dotyczących przechowywania nawet o 70% w porównaniu ze  standardową kompresją.  Tryb dzień/noc  Mechaniczny tryb podczerwieni sprawia, że kamera idealnie nadaje  się do zastosowań w zmiennych warunkach oświetlenia. Zapewnia  kolorowy obraz w ciągu dnia i ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

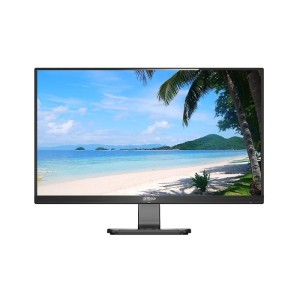

Blade Series | DHI-LM24-F211  www.dahuasecurity.com  Features：   I LCD     PR A   HR   U R  angle make your vision more open  · Built-in speakers  DHI-LM24-F211   FHD LED M  T S  Model  ModelDHI-LM24-F211  Display  Screen Size  Aspect Ratio P  Resolution A FHD  Backlight LED  BR L   S  250 cd/ ㎡  Contrast P  Display Colors16.7M(8bit)  V A H V H V  Response Time14ms  Refresh Rate H  Signals  InputVGA D S A HDMIA AA  OutputSpeaker2Wx2  General  Power SupplyAC V A A H    C S W  C S A W  Type Internal  Net Weight 3.7kg (8.2lb)  Gross Weight5.0kg (11.0lb)  Bezel Width2.2mm (U/L/R), 18.1mm (B)  Wall Mount100x100mm (3.9"x3.9")  Dimension without standard (WxHxD)  540.6x322.6x50.1mm (21.3"x12.7"x2.0")  P WAHAD A A A A  W E  Temperature0℃~40 ℃ F F  Humidity 10%~85%  Accessory  StandardVGA cable, power cable, pedestal  OptionalHanging bracket  C  CertificationsCE FCC    24h* 71080p    Blade Series | DHI-LM24-F211  Dimensions(mm)  www.dahua...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

www.dahuasecurity.com   Features  · Material: SPCC  · High compatibility for standard storage device  · 19” standard rack mount tray    Cabinet Series | PFH101  PFH101  Rack Mount Tray      Cabinet Series | PFH101    www.dahuasecurity.com    Technical Specification  ModelDH-PFH101  General  Material  SPCC  Dimension(WxDxH)  482.6mmx281.2mmx43.7mm (19”x11.07”x1.72”)  Weight1.4kg (3.09lb)  Load Bearing5kg (11.02lb)  ColorBlack  Operating Temperature-40℃~+60℃(-40℉~+140℉)  Humidity<90% RH  Applicable Model1U/ Mini 1U/Compact 1U Storage Device      Order Information  TypePart NumberDescription  Cabinet  DH-PFC200-6U4D19” 6U rock cabinet, depth 450mm, load bearing 40kg, support wall & plane mount  DH-PFC200-6U6D19” 6U rock cabinet, depth 600mm, load bearing 40kg, support wall & plane mount  DH-PFC200-12U6D19” 12U rock cabinet, depth 600mm, load bearing 80kg (shaft: 40kg), support wall & plane mount  DH-PFC200-12U8D19” 12U rock cabinet, depth 800mm, load bearing 80kg (shaft: 40kg), support wall & plane mount  PFC200-6U4D19” 6U rock cabinet, depth 450mm, load bearing 40kg, support wall & plane mount  PFC200-6U6D19” 6U rock cabinet, depth 600mm, load bearing 40kg, support wa...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

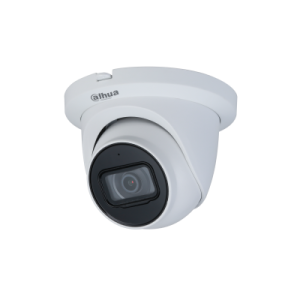

www.dahuasecurity.com  DH-IPC-HDW3241TM-AS  2MP Lite AI IR Fixed focal Eyeball Netwok Camera    · 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition  · Outputs max. 2MP (1920 x 1080)@30 fps  · H.265 codec, high compression rate, low bit rate  · Built-in IR LED, max. IR distance: 50 m  · ROI, SMART H.264+/H.265+, flexible coding, applicable to various   bandwidth and storage environments  · Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,   applicable to various monitoring scenes  · Intelligent detection: Intrusion, tripwire (Recognition of vehicle and   human)  · Abnormality detection: Motion detection, video tampering, scene   changing, audio detection, no SD card, SD card full, SD card error,   network disconnection, IP conflict, illegal access, voltage detection  · Supports max. 256 G Micro SD card, built-in Mic  · 12V DC/POE power support  · IP67 protection  · SMD  Lite AI Series | DH-IPC-HDW3241TM-AS    2Mp    IP67  H.265+    Starlight  Perimeter     System Overview  With advanced deep learning algorithm, Dahua Lite AI series network  camera supports some intelligent functions, such as perimeter  protection and smart...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

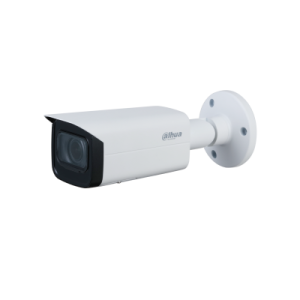

www.dahuasecurity.com  DH-IPC-HFW3241E-AS  2MP Lite AI IR Fixed focal Bullet Network Camera    · 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition  · Outputs max. 2MP (1920 x 1080)@30 fps  · H.265 codec, high compression rate, low bit rate  · Built-in IR LED, max. IR distance: 50 m  · ROI, SMART H.264+/H.265+, flexible coding, applicable to various   bandwidth and storage environments  · Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,   applicable to various monitoring scenes  · Intelligent detection: Intrusion, tripwire  · Abnormality detection: Motion detection, video tampering, scene   changing, audio abnormality detection, no SD card, SD card full, SD card   error, network disconnection, IP conflict, illegal access, voltage   detection  · Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card,   built-in Mic  · 12V DC/POE power support  · IP67 protection  · SMD  Lite AI Series |DH-IPC-HFW3241E-AS    2Mp    IP67  H.265+    Starlight  Perimeter     System Overview  With advanced deep learning algorithm, Dahua Lite AI series network  camera supports some intelligent functions, such as perimeter  protectio...

Warning! Product withdrawn from production!

Replacement product: IPC-HFW3249E-AS-LED-0360B

Warranty: 36 mon.

Datasheet

Lens Series | DH-PFL0550-E6D            www.dahuasecurity.com  DH-PFL0550-E6D  6 MegaPixel 5-50mm Lens                          Lens | DH-PFL0550-E6D    www.dahuasecurity.com    Technical Specifications  Model DH-PFL0550-E6D  Parameter  Image format 1/2.7”  Focal length 5-50mm  Lens pixel 6MP  Aperture F1.6  Mount CS  Field Angle  (D*H*V)  1/2.7”  W: 65.7°x49.6°x36.9°  T: 5.2°x7°x5.2°  1/2.9”(3:2)  W: 58.1°x47°x33.2°  T: 8.1°x6.6°x4.7°  1/4’’  W: 42°x33°x25°  T: 5.9°x4.7°x3.6°  Lens Control  Focus Manual  Zoom Manual  Iris DC-iris  IR Correction Yes  M.O.D. 0.5m(1.64ft)  Dimension ɸ44x85.7mm(ɸ1.73”x3.37”)  Weight 0.2kg(0.44lb)  Operating temperature -30℃～+70℃(-22℉~158℉)  Humidity <90% RH    Order Information  Type Part Number Description  Lens  DH-PFL0550-E6D  6 MegaPixel 5-50mm Lens  _Dahua brand  PFL0550-E6D  6 MegaPixel 5-50mm Lens  _Neutral, no brand        Lens | DH-PFL0550-E6D      Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
