DAHUA

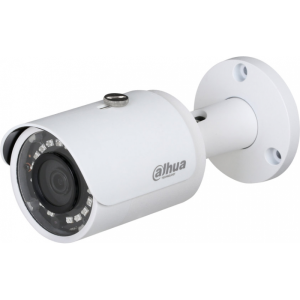

Lite Series | DH-IPC-HFW1431S     System Overview  The IR Megapixel Fixed camera delivers 4MP resolution with a  2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics  combined with a range of easy mounting solutions provides an excellent  choice for a variety of small to mid-size applications at an affordable  price.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  Intelligent Video Analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning messa...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Pro Series | DH-HAC-HDW2241T-Z-A     System Overview  Experience 1080P full HD video and the simplicity of reusing existing  coaxial infrastructure with HDCVI. The Starlight HDCVI camera with 120dB  true WDR presents a high quality image with rich details even in extreme  low-light conditions. It offers various motorized/fixed lens models with  a multi-language OSD and HD/SD switchable output. Its superior image  performance and starlight feature makes the camera an ideal choice  for mid to large-size businesses and projects where both highly reliable  surveillance and construction flexibility are needed.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees long-distance and real-time transmission  wit...

Warranty: 36 mon.

Datasheet

Lite series | DHI-NVR4104/4108HS-P-4KS2    System Overview  Dahua NVR4000-4KS2 is introduced as the first Lite series NVR  that supports for 4K and H.265 encoding technology with excellent  performance at an affordable price. For applications where image  details are highly required, it delivers the capability of 4K resolution  processing. The NVR can be served as edge storage, central storage or  backup storage with an intuitive shortcut operation menu for remote  management and control.  Due to its cost-effective and easy-to-install design, this NVR is ideal for  a wide range of applications such as public safety, water conservancy,  transportation, city centers, education, and financial institutions.  The NVR is compatible with numerous third-party devices making it  the perfect solution for surveillance systems that work independently  of video management system (VMS). It features an open architecture  that supports for multi-user access and is compatible with ONVIF 2.4  protocol, enabling interoperability with IP cameras.    Functions  4K Resolution  4K resolution is a revolutionary breakthrough in image processing  technology. 4K delivers four times the resolution of standard HDTV  1080p c...

Warranty: 36 mon.

Datasheet

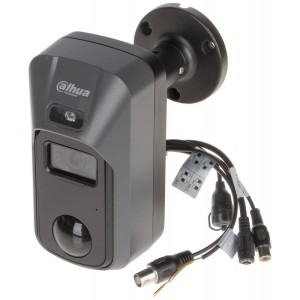

PIR Series | DH-HAC-ME2241C-W     System Overview  This PIR model is an indoor/outdoor dual detection camera which uses  both video and infrared sensor to achieve accurate motion detection  functionality. It also supports active deterrence feature which warns off  intruders with white light and siren even before users are aware of the  incident. This camera is an ideal choice for applications which require  intrusion protect and video verification , such as courtyards, offices,  warehouses, stores, etc.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 700m transmission for 5MP HD video  via coaxial cable, and up to 300m via UTP cable.*  *Actual results verified by real-sc...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DH-PFS3016-16GT    www.dahuasecurity.com   Features  · Layer 2 unmanaged access switch  · All gigabit Ethernet ports  · Lightning protection  · Plug and play  · Adopts metal enclosure  · Good heat dissipation  DH-PFS3016-16GT  16-Port Gigabit Switch (Unmanaged)    Technical Specification  Model DH-PFS3016-16GT  Ethernet Port  16*10/100/1000 Base-T  Switching Capacity  32G  Packet Forwarding Rate23.8Mpps  Packet Buffer Memory2Mb  MAC Table Size8K  Exchange ModeStore & forward  Application Humidity10%~90%  PowerAC:100-240V; 50/60Hz  Lightning Protection  Common Mode 6KV  Differential Mode 0.5KV  Working Temperature0°C~+40°C  Weight1.36kg  Dimension(WxDxH)294mm x 178mm x 44mm...

Warranty: 36 mon.

Datasheet

Wi-Fi Series | IPC-HDBW1435E-W-0280B  IPC-HDBW1435E-W-0280B  4 MP IR Mini-Dome Wi-Fi Network Camera  • 1/3” 4 Megapixel progressive CMOS  • H.265 & H.264 dual-stream encoding  • 20 fps @ 4M (2688x1520) & 25/30fps @ 3M (2304x1296)  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC  • Wi-Fi support  • 2.8 mm fixed lens  • Max IR LEDs Length 30m  • IP67, IK10  System Overview  Functions  The IR Megapixel Fixed MiniDome camera delivers 4MP resolution  with a choice of 2.8 mm wide angle lens options. The camera’s ele-  gant blend of aesthetics combined with a range of easy mounting so-  lutions provides an excellent choice for a variety of small to mid-size  applications at an affordable price.    IP67  Vandal-proof    30m IR    H.265    4Mp  www.dahuasecurity.com  Features  Easy4ip  Easy4ip cloud and app allows you monitor what’s happening at home  anytime and anywhere. Alarm notice is pushed to your app in real  time, so you’ll not miss anything important. And you can record your  daily or motion videos on easy4ip cloud along with local storage.  True Day/Night  A day/night mechanical IR cut filter makes this ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

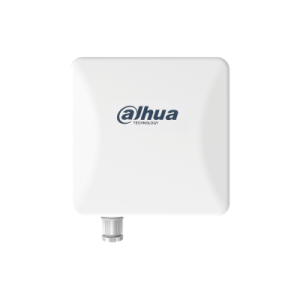

DH-PFWB2-30n    www.dahuasecurity.com   Features  · Integrated 2.4 GHz (2x2) MIMO radio  · Frequency 2.402 - 2.492GHz (FCC 2.412 - 2.462 GHz)  · High performance and stability  · IP-66 standards rated enclosure  · Improved noise immunity  · TDMA ensures reliable communication  · Powerful OS  · Dual firmware  · Built-in tools including Site Survey, Link Test, Antenna  Alignment, Spectrum Analyzer, Ping & Trace help in  configuration and debugging  · Recommended for 0~5km PTP/PTMP wireless connection(as  a station in PTMP link)  DH-PFWB2-30n  2.4GHz N300 14dBi Outdoor Wireless CPE    Technical Specification  ModelDH-PFWB2-30n  Wireless  WLAN Standard  IEEE 802.11 b/g/n  Radio ModeMIMO 2x2  Radio Frequency Band2.402 - 2.492GHz (FCC 2.412 - 2.462 GHz)  Transmit PowerUp to 31 dBm (country dependent)  Receive Sensitivity  Varying between -96 and -74 dBm depending on  modulation  Channel Size5,10, 20, 40 MHz  Modulation Schemes  802.11 g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)  802.11b:DSS(CCK,DQPSK,DBPSK)  Data Rates  802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps  802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps  802.11 b:11,5.5,2,1Mbps  Error Correction FEC, Selective...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Cooper IP Series | NVR1104HC-S3product overviewfeatures  functions    www.dahuasecurity.com  •H.265+/H.264+ codec decoding  •Max 40 Mbps/20 Mbps incoming/outgoing bandwidth  •Max 4 channel IP camera inputs  •Up to 6 MP resolution preview & playback  •Up to 1 ch @ 6 MP/4 ch @ 1080P 25 fps decoding  •HDMI/VGA simultaneous video output  Cooper IP is perfect for small to medium size applications like home /  residential security, small retail shops, and other typical SMB  applications. It offers a perfect alternative to migrate from analog  to an IP system with its easy to use nature and cost effectiveness.  Cooper IP is fully in line with Dahua’s quality. Stable and reliable  components are utilized and Various tests such as anti-vibration,  water resistance, and aging tests are performed to ensure Dahua  quality standards.  4 Channel Cooper 1U H.265 Network Video Recorder    NVR1104HC-S3    Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible mul...

Warranty: 36 mon.

Datasheet

Camera Mount Series | DH-PFB410W            www.dahuasecurity.com     DH-PFB410W   Fisheye-PTZ Integrated Bracket                      Features  * Neat & Integrated design, wall mount and hidden line design.  * Material: Aluminum.  * Support linkage scheme between fisheye and speed dome, integrated installation.  * Multi-dimensional adjustment, able to meet Omni-directional observation requirements from  different angles.  * Safety rope hook attached, secure and reliable.  * Maintenance cover board attached, convenient operation.    Поставщик систем безопасности TELECAMERA.RU    Camera Mount Series | DH-PFB410W    www.dahuasecurity.com  Technical Specifications  Model DH-PFB410W  General  Material Aluminum  Dimension  Rotation angle 0°: 651.6mmx164.8mmx154.9mm (25.7”x6.5”x6.1”)  Rotation angle 88°: 555mmx236.9mmx154.9mm (21.8”x9.3”x6.1”)  Adjustment angle (Vertical) 0°~88°  Adjustment angle (Horizontal) 0°~360°  Load Bearing  Fisheye: 1kg (2.2lb)  PTZ: 7kg (15.43lb)  Weight 2.8kg (6.17lb)  Color White  Operating Temperature -40ºC ~60ºC(-40℉~+140℉)  Humidity 0~90% RH

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

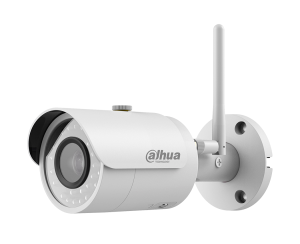

Wi-Fi Series | IPC-HFW1435S-W-0280B  IPC-HFW1435S-W-0280B  4 MP IR Mini-Bullet Wi-Fi Network Camera  • 1/3” 4 Megapixel progressive CMOS  • H.265 / H.264 dual-stream encoding  • 20fps @ 4M (2688x1520) & 25/30 fps @ 3M (2304x1296)  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC  • Multiple network monitoring:  Web viewer, CMS (DSS/PSS) & DMSS  • Wi-Fi support  • 2.8 mm fixed lens  • Max IR LEDs Length 30 m  • IP67  System Overview  Functions  The IR Megapixel Fixed Mini-Bullet camera delivers 4MP resolution  with a choice of 2.8mm. The camera’s elegant blend of aesthetics  combined with its compact form factor provides an excellent cho-  ice for a variety of small to mid-size, indoor/outdoor applications  at an affordable price.    IP67  30m IR  4Mp  www.dahuasecurity.com  Features  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal  for applications with fluctuating lighting conditions, delivering color  images during the day and automatically switching to monochrome  as the scene darkens.  Regions of interest  Regions of Interest (ROI) is a user defined feature th...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Wi-Fi Series | IPC-HDBW1435E-W-0280B  IPC-HDBW1435E-W-0280B  4 MP IR Mini-Dome Wi-Fi Network Camera  • 1/3” 4 Megapixel progressive CMOS  • H.265 & H.264 dual-stream encoding  • 20 fps @ 4M (2688x1520) & 25/30fps @ 3M (2304x1296)  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC  • Wi-Fi support  • 2.8 mm fixed lens  • Max IR LEDs Length 30m  • IP67, IK10  System Overview  Functions  The IR Megapixel Fixed MiniDome camera delivers 4MP resolution  with a choice of 2.8 mm wide angle lens options. The camera’s ele-  gant blend of aesthetics combined with a range of easy mounting so-  lutions provides an excellent choice for a variety of small to mid-size  applications at an affordable price.    IP67  Vandal-proof    30m IR    H.265    4Mp  www.dahuasecurity.com  Features  Easy4ip  Easy4ip cloud and app allows you monitor what’s happening at home  anytime and anywhere. Alarm notice is pushed to your app in real  time, so you’ll not miss anything important. And you can record your  daily or motion videos on easy4ip cloud along with local storage.  True Day/Night  A day/night mechanical IR cut filter makes this ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite series | DHI-NVR2104/2108-W-4KS2     System Overview  Dahua's third generation network video recorder embedded Wi-Fi  module to support wireless AP function, support automatic detection  and connection of IP camera from Dahua without any operation. In  addition, it has two-antenna for a strong wireless network signal. IEEE  802.11 b/g/n (2.4G Hz) Wi-Fi covers wider and further area. Also, this  NVR can support wire IP cameras accessing, making the installation more  flexible.  Without the limitation of the network cable, this NVR is ideal for a wide  range of applicaiton such as home safety, cafe, retail, grocery, education  and other industries.  Combination with Dahua wireless camera makes the perfect solution  for surveillance systems that work independently of video management  system (VMS). It features an open architecture that supports for  multi-user access and is compatible with ONVIF 2.4 protocol, enabling  interoperability with IP cameras.   Functions  WiFi AP  With built-in Wi-Fi module, this NVR can supply Wi-Fi access point for  wireless devices. Setting SSID and password to construct a dedicated  wireless network, it will makes the wireless transmission more reliable an...

Warranty: 36 mon.

Datasheet

Warning! Product withdrawn from production!
