PFL0550-E6D
Description
Lens Series | DH-PFL0550-E6D www.dahuasecurity.com DH-PFL0550-E6D 6 MegaPixel 5-50mm Lens Lens | DH-PFL0550-E6D www.dahuasecurity.com Technical Specifications Model DH-PFL0550-E6D Parameter Image format 1/2.7” Focal length 5-50mm Lens pixel 6MP Aperture F1.6 Mount CS Field Angle (D*H*V) 1/2.7” W: 65.7°x49.6°x36.9° T: 5.2°x7°x5.2° 1/2.9”(3:2) W: 58.1°x47°x33.2° T: 8.1°x6.6°x4.7° 1/4’’ W: 42°x33°x25° T: 5.9°x4.7°x3.6° Lens Control Focus Manual Zoom Manual Iris DC-iris IR Correction Yes M.O.D. 0.5m(1.64ft) Dimension ɸ44x85.7mm(ɸ1.73”x3.37”) Weight 0.2kg(0.44lb) Operating temperature -30℃～+70℃(-22℉~158℉) Humidity <90% RH Order Information Type Part Number Description Lens DH-PFL0550-E6D 6 MegaPixel 5-50mm Lens _Dahua brand PFL0550-E6D 6 MegaPixel 5-50mm Lens _Neutral, no brand Lens | DH-PFL0550-E6D Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Lens Series | DH-PFL0550-E6D
www.dahuasecurity.com

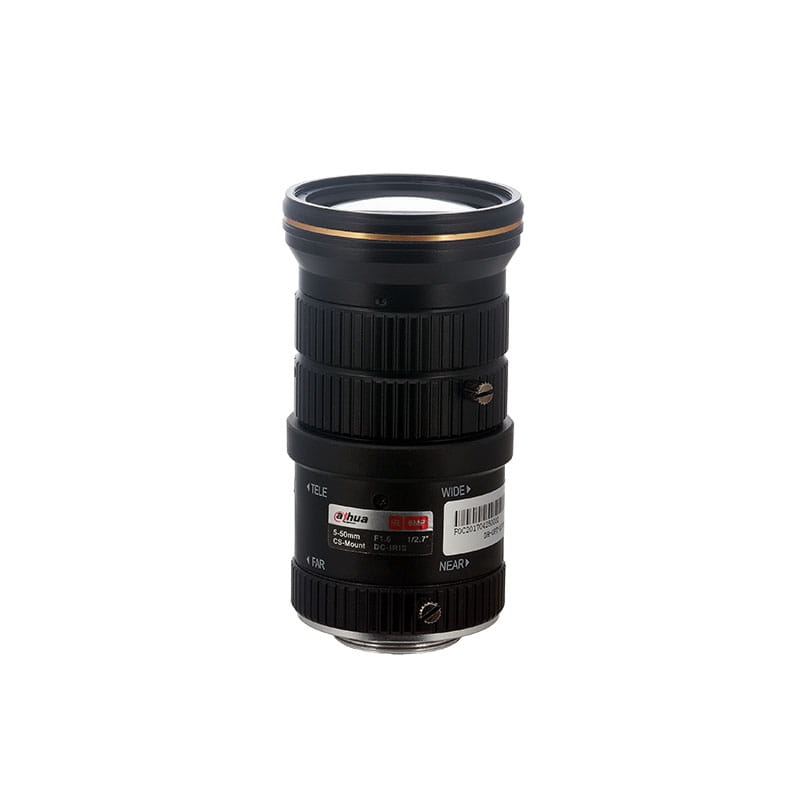

DH-PFL0550-E6D
6 MegaPixel 5-50mm Lens
Lens | DH-PFL0550-E6D
www.dahuasecurity.com
Technical Specifications
Model DH-PFL0550-E6D
Parameter
Image format 1/2.7”
Focal length 5-50mm
Lens pixel 6MP
Aperture F1.6
Mount CS
Field Angle
(D*H*V)
1/2.7”
W: 65.7°x49.6°x36.9°
T: 5.2°x7°x5.2°
1/2.9”(3:2)
W: 58.1°x47°x33.2°
T: 8.1°x6.6°x4.7°
1/4’’
W: 42°x33°x25°
T: 5.9°x4.7°x3.6°
Lens Control
Focus Manual
Zoom Manual
Iris DC-iris
IR Correction Yes
M.O.D. 0.5m(1.64ft)
Dimension ɸ44x85.7mm(ɸ1.73”x3.37”)
Weight 0.2kg(0.44lb)
Operating temperature -30℃～+70℃(-22℉~158℉)
Humidity <90% RH
Order Information
Type Part Number Description
Lens
DH-PFL0550-E6D
6 MegaPixel 5-50mm Lens
_Dahua brand
PFL0550-E6D
6 MegaPixel 5-50mm Lens
_Neutral, no brand
Lens | DH-PFL0550-E6D
Rev 001.001 © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com
Dimensions(mm/inch)
Application
