IPC-HDW1531S-0360B

Availability: 0
Price: €168.11 168.11
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: IPC-HDW1531S-0360B

Description

Lite Series | DH-IPC-HDW1531S     System Overview  The IR Megapixel Fixed camera delivers 5MP resolution with a  2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics  combined with a range of easy mounting solutions provides an excellent  choice for a variety of small to mid-size applications at an affordable  price.    Functions  Smart Codec (H.265+ & H.264+)  Smart Codec is the optimized implementation of standard video  compression (H.265 & H.264) that uses a scene-adaptive encoding  strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference  structure and intelligent noise reduction to deliver high-quality video  without straining the network. Smart Codec technology reduces bit rate  and storage requirements by up to 70% when compared to the standard  video compression.  Intelligent Video Analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning messa...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Lite Series | DH-IPC-HDW1531S

System Overview
The IR Megapixel Fixed camera delivers 5MP resolution with a
2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics
combined with a range of easy mounting solutions provides an excellent
choice for a variety of small to mid-size applications at an affordable
price.

Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
Intelligent Video Analysis (IVS)
Dahua camera is equipped with a built-in intelligent analytic algorithm
based on video, which can realize intelligent functions like Tripwire
and Intrusion, to quickly and accurately respond to monitoring events
in specific area, It can enhance monitoring efficiency. In addition, the
camera supports intelligent tamper detection, which is to generate
warning message via detecting dramatic scene change and to guarantee
effective video surveillance.
Wide Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, true WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Smart IR Technology
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts the intensity of
camera's infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 2KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) , the camera is the choice for installation in even the most
unforgiving environments.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.
Image Flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/2.7” 5Megapixel progressive CMOS
· H.265& H.264 dual-stream encoding
· 15fps@5M(2592x1944) &25/30fps@3M(2304x1296)
· WDR(120dB), Day/Night(ICR), 3DNR, HLC, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8 mm fixed lens (3.6mm optional)
· Max IR LEDs Length 30m
· IP67, PoE

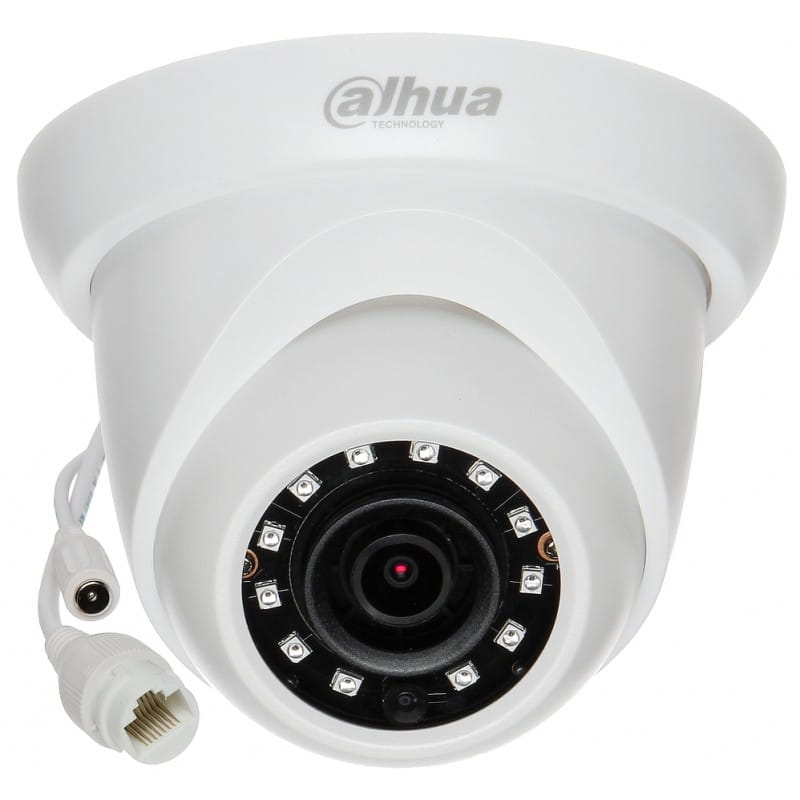

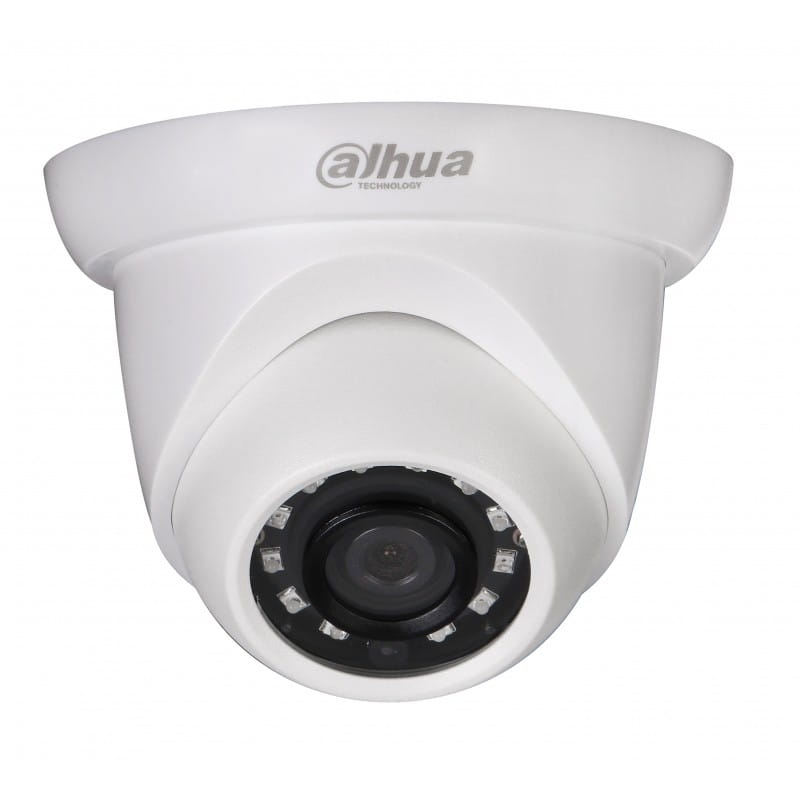

DH-IPC-HDW1531S
5MP WDR IR Eyeball Network Camera

IP67
30m IR

5Mp
H.265+

www.dahuasecurity.com
Lite Series | DH-IPC-HDW1531S

Technical Specification
Camera
Image Sensor1/2.7” 5Megapixel progresive CMOS
Effective Pixels
2592(H) x1944(V)
RAM/ROM
512MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.03Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
12
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm (3.6 mm optional)
Max. ApertureF2.0/F2.0
Angle of ViewH:96°/78°, V:70°/58°
Focus ControlFixed
Close Focus DistanceN/A
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm 63(207ft)25(82ft)13(43ft)6(20ft)
3.6 mm 80(262ft)32(105ft)16(52ft)8(26ft)
PTZ
Pan/Tilt RangePan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing,
Network disconnection, Ip address conflict, Illegal
access, Storage anomaly
IVS Tripwire, Intrusion
Video
CompressionH.265/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability2 Streams
Resolution
5M(2592x1944)/4M(2688x1520)/3M(2304x1296/2048
x1536)/1080P(1920x1080)/720P(1280x720)/
D1(704x576/704x480)/VGA(640x480)/
CIF(352x288/352x240)
Frame Rate
Main Stream: 5M(1 ~ 15fps)/3M (1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR


Bit Rate
H.265: 12K ~ 8448Kbps
H.264: 32K ~ 10240Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE (IEEE 802.3af)(Class 0)
Power Consumption< 6W

Lite Series | DH-IPC-HDW1531S

Ordering Information
TypePart NumberDescription
4MP camera
DH-IPC-HDW1531SP
-0280B
5MP IR Eyeball Network Camera,
2.8mm,PAL
DH-IPC-HDW1531SN
-0280B
5MP IR Eyeball Network Camera,
2.8mm,NTSC
IPC-HDW1531SP
-0280B
5MP IR Eyeball Network Camera,
2.8mm,PAL
IPC-HDW1531SN
-0280B
5MP IR Eyeball Network Camera,
2.8mm,NTSC
DH-IPC-HDW1531SP
-0360B
5MP IR Eyeball Network Camera,
3.6mm,PAL
DH-IPC-HDW1531SN
-0360B
5MP IR Eyeball Network Camera,
3.6mm,NTSC
IPC-HDW1531SP
-0360B
5MP IR Eyeball Network Camera,
3.6mm,PAL
IPC-HDW1531SN
-0360B
5MP IR Eyeball Network Camera,
3.6mm,NTSC
Accessories
(optional)
PFA130-EJunction box
PFB203W Wall mount
PFA152-EPole mount
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Stroage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
CasingMetal+Plastic
DimensionsΦ108mmx84.9mm(4.25''x3.15'')
Net Weight0.23Kg(0.51lb)
Gross Weight0.387Kg(0.85lb)
Dimensions (mm/inch)

Accessories
Optional:

PFA130-E
Junction Box
PFB203W
Wall mount
PFA152-E
Pole mount
© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001
