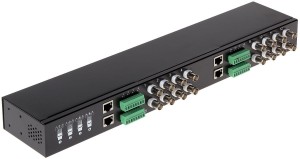

PFM809-4MP
HDCVI Accessory Series | PFM809-4MP www.dahuasecurity.com PFM809-4MP 16-Channel Passive HDCVI Balun Features * Power supply: No need additional power supply; * Transmission effect: Real-time transmission HDCVI video signal without compression, video is clear and stable; * Transmission distance: 0~400m (with passive transmitter); * Main functions: Use 4 wires meanwhile to transmit 16-ch video signal; * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities; * Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface. HDCVI Accessory Series | PFM809-4MP www.dahuasecurity.com Technical Specifications Model PFM809 Properties Transmission Signal 16-channel Transmission Distance HDCVI: 720P: max. 400m(1312.34ft) 1080P: max. 250m(820.21ft) 4MP: max. 200m(656.17ft) Category Type UTP CAT5E/6 Video Transmission Properties Coaxial Video Connector BNC Connection Way Spring loaded Compat...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFM920I-5EUN
Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com DH-PFM920I-5EUN 305m UTP CAT5E Cable Features * 305m UTP CAT5E * Max.160m long distance PoE supply * 99.99% OFC(oxygen free copper) Excellent material * Environmentally friendly PVC Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com Technical Specifications Model DH-PFM920I-5EUN Conductor Material OFC(oxygen free copper) Composition 1/0.45 Wire gauge 0.45*4P±0.005mm Insulation Material HDPE Min. average thickness 0.2mm Diameter 0.83mm±0.03mm Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown Lay of twisted conductors 140mm Jacket Material PVC Min. average thickness 0.5mm±0.05mm Diameter 4.7mm Color Orange and white are optional Length 305m (1000.66ft) Max. DC resistance of single conductor 12 Ω/100m Max. unbalance rate of line pairs’ direct current resistance 12% Min. insulation resistance 5000MΩ·km Max. mutual capacitance 5.6NF/100m Max. attenuati...
Warranty: 36 mon.
Datasheet
Availability: 101-500
PFM920I-5EUN-C
Cable Series | DH-PFM920I-5EUN-C www.dahuasecurity.com DH-PFM920I-5EUN-C UTP CAT5e Cable Network cables are the most commonly used transmission mediums in generic cabling system. It is usually composed of 4 pairs of twisted wires, and is generally applied in system cabling within 100 meters. Features · 305.0 m (1000 ft)/carton UTP CAT5e, power over Ethernet, compatible with one cable · High-purity Oxygen-Free Copper conductor material · Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified · 10-year warranty Cable Series | DH-PFM920I-5EUN-C Technical Specification Conductor Material Oxygen free copper (99.97% purity) Diameter 0.45 mm ± 0.01 mm Insulation MaterialHDPE Min. Average Thickness0.18 mm Diameter0.83 mm ± 0.06 mm Color (4 Pairs) Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown Rip Cord MaterialPolyester Specification500D Sheath MaterialPVC Min. Average Thickness0.5 mm Diameter5.0 mm ± 0.3 mm ColorWhite Electrical Max. DC Resistance of a Single Conductor12Ω/100 m Min. Insulation Resistance5000MΩ·km Max. DC Resistance Unbalance2% (pair intra), 4% (pairs inte...
Warranty: 36 mon.
Datasheet
Availability: 0
PFM920I-5EUN-C-V2
Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com DH-PFM920I-5EUN 305m UTP CAT5E Cable Features * 305m UTP CAT5E * Max.160m long distance PoE supply * 99.99% OFC(oxygen free copper) Excellent material * Environmentally friendly PVC Cable Series | DH-PFM920I-5EUN www.dahuasecurity.com Technical Specifications Model DH-PFM920I-5EUN Conductor Material OFC(oxygen free copper) Composition 1/0.45 Wire gauge 0.45*4P±0.005mm Insulation Material HDPE Min. average thickness 0.2mm Diameter 0.83mm±0.03mm Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown Lay of twisted conductors 140mm Jacket Material PVC Min. average thickness 0.5mm±0.05mm Diameter 4.7mm Color Orange and white are optional Length 305m (1000.66ft) Max. DC resistance of single conductor 12 Ω/100m Max. unbalance rate of line pairs’ direct current resistance 12% Min. insulation resistance 5000MΩ·km Max. mutual capacitance 5.6NF/100m Max. attenuati...
Warranty: 36 mon.
Datasheet
Availability: 0
PFM923I-6UN-C
Cable Series | DH-PFM923I-6UN-C www.dahuasecurity.com DH-PFM923I-6UN-C 305m UTP CAT6 LSZH Cable Features * 305m UTP CAT6; * Support PoE long-distance transmission; * Excellent OFC with 99.97% OFC (oxygen free copper) purity; * Environmentally-friendly LSZH outer sheath, meet the CPR E class; * Top-notch quality guarantee for 10 years. Cable Series | DH-PFM923I-6UN-C www.dahuasecurity.com Technical Specifications Model DH-PFM923I-6UN-C Structure Conductor Material OFC(oxygen free copper) Structure 4P*0.53±0.01mm Insulation Material HDPE Min. average thickness 0.21mm Diameter 0.95mm±0.05mm Color(4 Pairs) White/Blue, Blue; White/Orange, Orange; White/Green, Green; White/Brown, Brown Rip Cord Yes Jacket Material LSZH, meet the requirement of CPR E class Min. average thickness 0.43mm Diameter 6.0±0.5mm surface Smooth, full and tight Color White General Length 305m(1000.66ft) Packaging dimension 412mmx412mmx215mm (16.22”x16.22”x8.46”) Weight (with packaging) 12.5kg(27.56lb...
Warranty: 36 mon.
Datasheet
Availability: 501-1000

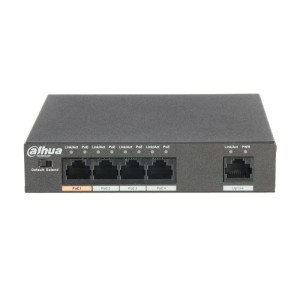

PFS3005-4ET-60-V2
DH-PFS3005-4ET-60 Product Overview DH-PFS3005-4ET-60 is a layer two fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 4*10/100Mbps PoE ports and 1*100 Mbps uplink ports. In order to acquire smooth monitoring, it’s recommended to connect max 4 IP cameras at a bit rate of less than 4Mbps respectively. www.dahuasecurity.com Features · Layer two commercial switch · Supports PoE power management · Supports wall-mount installation · Supports anti-theft lock hole · MAC auto learning and aging, MAC address capacity is 1K · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards · RJ45 port supports 10/100Mbps self-adaptation · Supports 250 meters long distance PoE transmission · Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply DH-PFS3005-4ET-60 4-Port PoE Switch (Unmanaged) Technical Specification ModelDH-PFS3005-4ET-60 Ethernet Port 1*10/100 Base-T 4*10/100 Base-T (PoE power supply) PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) PoE Power ManagementSupport PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE...
Warranty: 36 mon.
Datasheet
Availability: 11-50

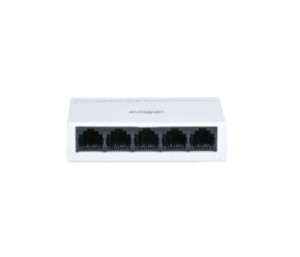

PFS3005-5ET-L
www.dahuasecurity.com DH-PFS3005-5ET-L 5-Port Desktop Fast Ethernet Switch · Compact design: Miniature size and light weight make it easy to deploy · Plug and play: No configuration required · Green technology: Adopts high quality environmentally friendly plastics · 7x24H: Stable performance for long-term operation DH-PFS3005-5ET-L System Overview 5 x 10/100 Mbps adaptive ports, highly integrated design, compact, portable, easy to operate, suitable for small and medium office and home networks. Application The product is applicable to small and medium office and home networks. Technical Specification Performance LayerLayer 2 ManagedNo Hardware Standard Power SupplyYes PoENo Ethernet Port5 Ethernet Port Rate100 Mbps Power Supply5V/500mA DC Operating Temperature-10°C to 55°C (14°F to 131°F) Operating Humidity10%–90% Storage Temperature-20°C to 70°C (-4°F to 158°F) Storage Humidity10%–90% Power Consumption Idling: 0.65W Full load: 1.3W Performance Switching Capacity1 Gbps Packet Forwarding Rate0.744 Mpps Packet Buffer Memory448 Kbits MAC Table Size1K
Warranty: 36 mon.
Datasheet
Availability: 0

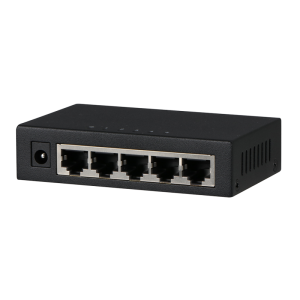

PFS3005-5GT-L
www.dahuasecurity.com DH-PFS3005-5GT-L 5-Port Desktop Gigabit Ethernet Switch DH-PFS3005-5GT-L System Overview 5 x 10/100/1000 Mbps adaptive ports, highly integrated design, compact, portable, easy to operate, suitable for small and medium office and home networks. Application The product is applicable to small and medium office and home networks. Technical Specification Performance LayerLayer 2 ManagedNo Hardware Standard Power SupplyYes PoENo Ethernet Port5 Ethernet Port Rate1 Gbps Power Supply5V/1A DC Operating Temperature-10°C to 55°C (14°F to 131°F) Operating Humidity10%–90% Storage Temperature-20°C to 70°C (-4°F to 158°F) Storage Humidity10%–90% Power Consumption Idling: 0.67W Full load: 1.6W Performance Switching Capacity10 Gbps Packet Forwarding Rate7.44 Mpps Packet Buffer Memory1.5 Mbit MAC Table Size2K Standards Compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x General ESD Air discharge: 8kV Contact discharge: 4kV ThunderproofCommon mode: 2kV Net Weight0.09 kg (0.2...
Warranty: 36 mon.
Datasheet
Availability: 6-10

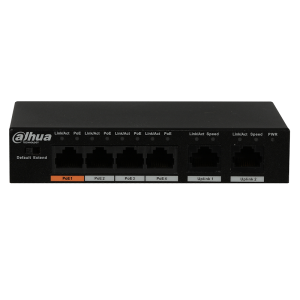

PFS3006-4ET-60-V2
PFS3006-4ET-60 Product Overview PFS3006-4ET-60 is a 4-port fast Ethernet switch, which supports 250 meters long distance PoE transmission. It provides 4*10/100Mbps PoE ports and 2*100 Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch. www.dahuasecurity.com Features · Layer two commercial switch · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards · MAC auto learning, aging, MAC address capacity is 2K · Supports MDI/MDIX self-adaptation · RJ45 port supports 10/100 Mbps self-adaptation · Supports IEEE802.3af and IEEE803.3at power supply standards · Adopts metal enclosure · Supports Hi-PoE 60W · Supports DC 48-57V power supply PFS30 06 - 4E T- 60 4-Port Fast Ethernet PoE Switch Technical Specification ModelPFS3006-4ET-60 Ethernet Port 2*10/100Mbps Uplink ports 4*10/100 Mbps PoE ports PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE Switching Capacity1.8Gbps Packet Forwarding Rate890kpps Packet Buffer Memory768Kb MAC Table Size2K Flow ControlEnable by default Application Humidity10%~90% Powe...
Warranty: 36 mon.
Datasheet
Availability: 51-100

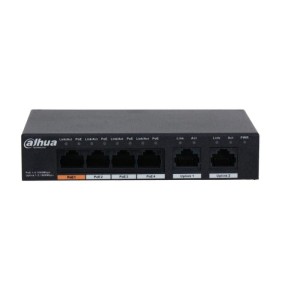

PFS3006-4GT-60-V2
www.dahuasecurity.com DH-PFS3006-4GT-60 6-Port Unmanaged Desktop Gigabit Switch with 4-Port PoE · Layer 2 commercial switch · Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards · MAC auto study and aging, MAC table size is 2K · MDI/MDIX self-adaption · Adopts metal enclosure · Port 1 supports Hi-PoE 60W power supply · Wall-mount installation · Anti-theft lock hole DH-PFS3006-4GT-60 Functions Intelligent PoE Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment. Eight-PIN Assignment PoE Power Supply The Eight-PIN Ethernet port supports power supply, to enhance front- end and rear-end compatibility. Reduce cable loss and promote loading capacity. Easy Installation Support desktop and wall mounting. The anti-theft lock hole supports mechanical anti-theft function. Wide Working Temperature With operating tempe...
Warranty: 36 mon.
Datasheet
Availability: 501-1000

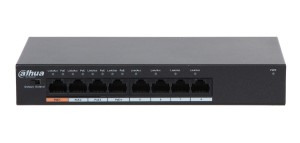

PFS3008-8ET-L
www.dahuasecurity.com DH-PFS3008-8ET-L 8-Port Desktop Fast Ethernet Switch DH-PFS3008-8ET-L System Overview 8 x 10/100 Mbps adaptive ports, highly integrated design, compact, portable, easy to operate, suitable for small and medium office and home networks. Application The product is applicable to small and medium office and home networks. Technical Specification Performance LayerLayer 2 ManagedNo Hardware Standard Power SupplyYes PoENo Ethernet Port8 Ethernet Port Rate100 Mbps Power Supply5V/500mA DC Operating Temperature-10°C to 55°C (14°F to 131°F) Operating Humidity10%–90% Storage Temperature-40°C to 70°C (-40°F to 158°F) Storage Humidity10%–90% Power Consumption Idling: 0.69W Full load: 1.5W Performance Switching Capacity1.6 Gbps Packet Forwarding Rate1.19 Mpps Packet Buffer Memory448 Kbits MAC Table Size1K Standards Compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x General ESD Air discharge: 8kV Contact discharge: 4kV ThunderproofCommon mode: 2kV Net Weight0.09 kg (0....
Warranty: 36 mon.
Datasheet
Availability: 0

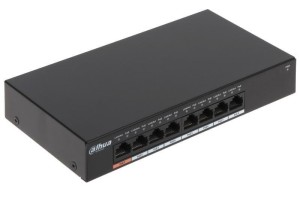

PFS3008-8GT-96
PFS3008-8GT-96 Product Overview PFS3008-8GT-96 is a 8-port Gigabit Ethernet switch, which provides 8*10/100/1000Mbps PoE port and supports Hi-PoE power supply. www.dahuasecurity.com Features · Layer two commercial switch · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards · MAC auto learning, aging, MAC address capacity is 2K · Supports MDI/MDIX self-adaptation · RJ45 port supports 10/100/1000 Mbps self-adaptation · Supports IEEE802.3af and IEEE803.3at power supply standards · Adopts metal enclosure · Supports Hi-PoE 60W · Supports DC 48-57V power supply PFS3008-8GT-96 8-Port Gigabit Ethernet PoE Switch Technical Specification ModelPFS3008-8GT-96 Ethernet Port 8*10/100/1000Mbps PoE ports PoE Power ConsumptionPort1≤60W, Port2-8≤30W, Total≤96W PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE Switching Capacity20Gbps Packet Forwarding Rate11.9Mpps Packet Buffer Memory1.5Mb MAC Table Size8K Flow ControlEnable by default Application Humidity10%~90% PowerDC48~57V power adapter Lightning Protection Common Mode 2KV Differential Mode 0.5KV Working Temperature-10°C~+55°C Weight0.49kg Dimension(WxDxH)190mmx100mmx30mm...
Warranty: 36 mon.
Datasheet
Availability: 0

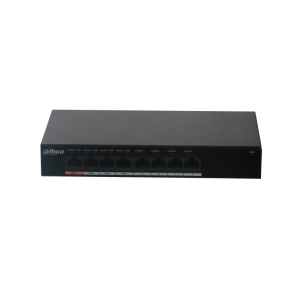

PFS3008-8GT-L
www.dahuasecurity.com DH-PFS3008-8GT-L 8-Port Desktop Gigabit Ethernet Switch DH-PFS3008-8GT-L System Overview 8 x 10/100/1000 Mbps adaptive ports, highly integrated design, compact, portable, easy to operate, suitable for small and medium office and home networks. Application The product is applicable to small and medium office and home networks. Technical Specification Performance LayerLayer 2 ManagedNo Hardware Standard Power SupplyYes PoENo Ethernet Port8 Ethernet Port Rate1 Gbps Power Supply5V/1A DC Operating Temperature-10°C to 55°C (14°F to 131°F) Operating Humidity10%–90% Storage Temperature-40°C to 70°C (-40°F to 158°F) Storage Humidity10%–90% Power Consumption Idling: 0.81W Full load: 4W Performance Switching Capacity16 Gbps Packet Forwarding Rate11.9 Mpps Packet Buffer Memory1.5 Mbits MAC Table Size2K Standards Compliance IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x General ESD Air discharge: 8kV Contact discharge: 4kV ThunderproofCommon mode: 2kV Net Weight0.11 kg (0.2...
Warranty: 36 mon.
Datasheet
Availability: 11-50

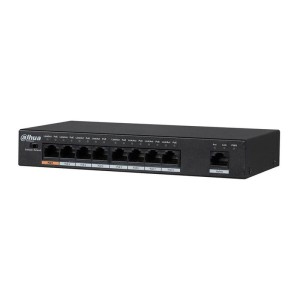

PFS3009-8ET1GT-96-V2
www.dahuasecurity.com DH-PFS3009-8ET1GT-96 9-Port Unmanaged Desktop Switch with 8-Port PoE · Layer 2 commercial switch · Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards · MAC auto study and aging, MAC table size is 2K · MDI/MDIX self-adaption. · Adopts metal enclosure · Port 1 supports Hi-PoE 60W power supply · Wall-mount installation · Anti-theft lock hole · Long distance PoE DH-PFS3009-8ET1GT-96 Functions Intelligent PoE Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment. Eight-PIN Assignment PoE Power Supply The Eight-PIN Ethernet port supports power supply, to enhance front- end and rear-end compatibility. Reduce cable loss and promote loading capacity. Hi-PoE 60W (Orange Port) Besides IEEE802.3af and IEEE802.3at, orange port also supports max. 60W output. Long Distance PoE 250 m long distance P...
Warranty: 36 mon.
Datasheet
Availability: 101-500

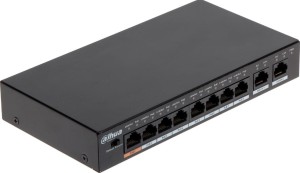

PFS3010-8ET-96-V2
PFS3010-8ET-96 Product Overview PFS3010-8ET-96 is an 8-port fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 2*10/100/1000Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch. www.dahuasecurity.com Features · Layer two commercial switch · Supports PoE power management · Supports wall-mount installation · Supports anti-theft lock hole · MAC auto learning and aging, MAC address capacity is 16K · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards · RJ45 port supports 10/100 Mbps self-adaptation · Supports 250 meters long distance PoE transmission · Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply PFS3010 -8E T-96 8-Port PoE Switch (Unmanaged) Technical Specification ModelPFS3010-8ET-96 Ethernet Port 8*10/100Mbps PoE ports 2*10/100/1000Mbps ports PoE Power ConsumptionPort1≤60W, Port2-8≤30W, Total≤96W PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) PoE Power ManagementSupport PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE Switching Capacit...
Warranty: 36 mon.
Datasheet
Availability: 51-100

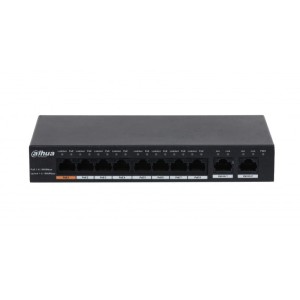

PFS3010-8GT-96-V2
www.dahuasecurity.com DH-PFS3010-8GT-96 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE · Support eight 10/100/1000Mbps PoE Ethernet ports, and two 10/100/1000Mbps Ethernet ports · Operating Temperature: –10°C to + 55°C · PoE Power Requirement: 48V DC–57V DC Input Desktop PoE Switch | DH-PFS3010-8GT-96 System Overview The 8-port PoE gigabit switch is a gigabit access switch that supports scenarios with 1 to 8 IPC and is widely used in supermarkets, hospitals and stations.The 8-port PoE gigabit switch supports 8 gigabit PoE ports, 2 gigabit uplink Ethernet ports. The power consumption of full load is 96W. Scene Serve as the access switch in the security surveillance systems at supermarkets, hospitals and stations. Functions Various Ports Eight 10/100/1000 Mbps Base-TX PoE ports Two 10/100/1000 Mbps Base-TX uplink Ethernet ports Various Mount Type Support desk mount and wall mount. www.dahuasecurity.com Desktop PoE Switch | DH-PFS3010-8GT-96 Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to...
Warranty: 36 mon.
Datasheet
Availability: 1-5

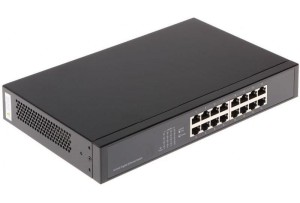

PFS3016-16GT
DH-PFS3016-16GT www.dahuasecurity.com Features · Layer 2 unmanaged access switch · All gigabit Ethernet ports · Lightning protection · Plug and play · Adopts metal enclosure · Good heat dissipation DH-PFS3016-16GT 16-Port Gigabit Switch (Unmanaged) Technical Specification Model DH-PFS3016-16GT Ethernet Port 16*10/100/1000 Base-T Switching Capacity 32G Packet Forwarding Rate23.8Mpps Packet Buffer Memory2Mb MAC Table Size8K Exchange ModeStore & forward Application Humidity10%~90% PowerAC:100-240V; 50/60Hz Lightning Protection Common Mode 6KV Differential Mode 0.5KV Working Temperature0°C~+40°C Weight1.36kg Dimension(WxDxH)294mm x 178mm x 44mm...
Warranty: 36 mon.
Datasheet
Availability: 0

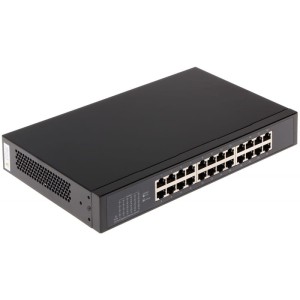

PFS3024-24GT
DH-PFS3024-24GT www.dahuasecurity.com Features · Layer 2 unmanaged access switch · All gigabit Ethernet ports · Lightning protection · Plug and play · Adopts metal enclosure · Good heat dissipation DH-PFS3024-24GT 24-Port Gigabit Switch (Unmanaged) Technical Specification Model DH-PFS3024-24GT Ethernet Port 24*10/100/1000 Base-T Switching Capacity 48G Packet Forwarding Rate35.7Mpps Packet Buffer Memory2Mb MAC Table Size8K Exchange ModeStore & forward Application Humidity10%~90% PowerAC: 100-240V; 50/60Hz Lightning Protection Common Mode 6KV Differential Mode 0.5KV Working Temperature0°C~+40°C Weight1.43kg Dimension(WxDxH)294mm x 178mm x 44mm...
Warranty: 36 mon.
Datasheet
Availability: 1-5
