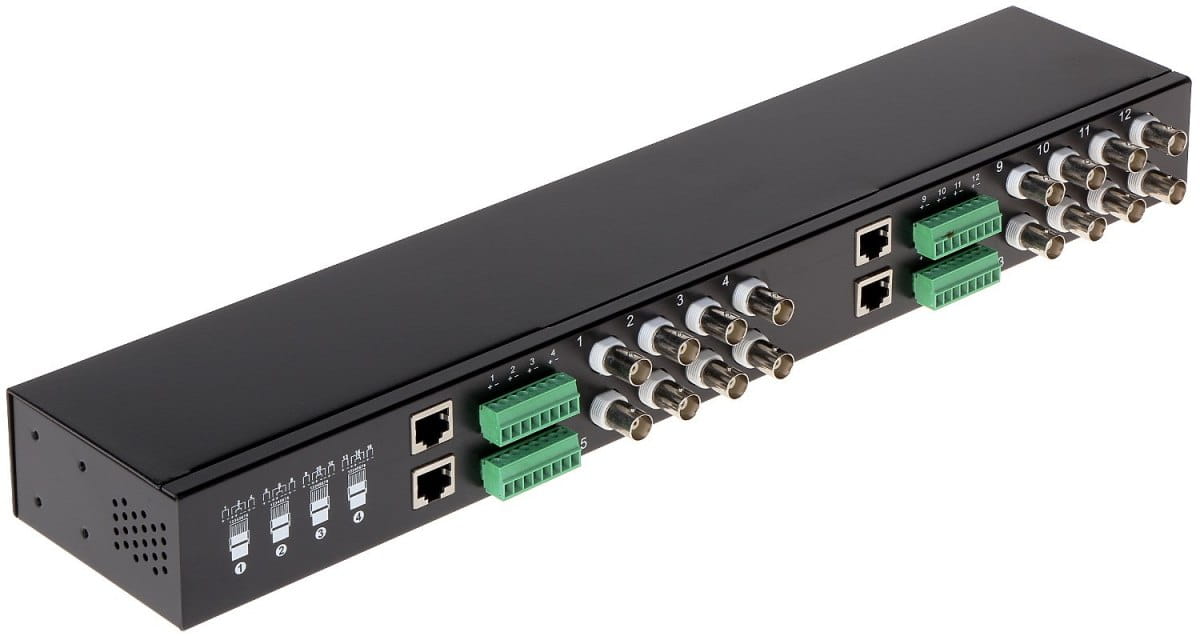

PFM809-4MP

Availability: 11-50
Price: €116.78 116.78
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: PFM809-4MP

Description

HDCVI Accessory Series | PFM809-4MP            www.dahuasecurity.com     PFM809-4MP   16-Channel Passive HDCVI Balun                                  Features  * Power supply: No need additional power supply;  * Transmission effect: Real-time transmission HDCVI video signal without compression, video is clear and  stable;  * Transmission distance: 0~400m (with passive transmitter);  * Main functions: Use 4 wires meanwhile to transmit 16-ch video signal;  * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities;  * Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair  cable interface.      HDCVI Accessory Series | PFM809-4MP    www.dahuasecurity.com  Technical Specifications  Model PFM809  Properties  Transmission Signal 16-channel  Transmission Distance  HDCVI:  720P: max. 400m(1312.34ft)  1080P: max. 250m(820.21ft)  4MP: max. 200m(656.17ft)  Category Type UTP CAT5E/6  Video Transmission Properties  Coaxial Video Connector BNC  Connection Way Spring loaded  Compat...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

HDCVI Accessory Series | PFM809-4MP





www.dahuasecurity.com

PFM809-4MP
16-Channel Passive HDCVI Balun
















Features
* Power supply: No need additional power supply;
* Transmission effect: Real-time transmission HDCVI video signal without compression, video is clear and
stable;
* Transmission distance: 0~400m (with passive transmitter);
* Main functions: Use 4 wires meanwhile to transmit 16-ch video signal;
* Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities;
* Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair
cable interface.


HDCVI Accessory Series | PFM809-4MP

www.dahuasecurity.com
Technical Specifications
Model PFM809
Properties
Transmission Signal 16-channel
Transmission Distance
HDCVI:
720P: max. 400m(1312.34ft)
1080P: max. 250m(820.21ft)
4MP: max. 200m(656.17ft)
Category Type UTP CAT5E/6
Video Transmission Properties
Coaxial Video Connector BNC
Connection Way Spring loaded
Compatible Format HDCVI
Resolution 720P/1080P/4MP
Anti-interference >60db
Protection
ESD
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector
2KV(common-mode)
Per: IEC61000-4-5
UTP Cable Connector
2KV(different-mode), 4KV(common-mode)
Per: IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Dimension(LxWxH) 430mmx100mm(With BNC)x45.5mm (16.93”x3.94”x1.79”) (1U)
Shell SECC
Color Black
N.W. 1.25kg(2.76lb)
Stability
MTBF >10000H
Environmental
Operating Temperature -10℃~+55℃(+14℉~+131℉)
Storage Temperature -20℃~+70℃(-4℉~+158℉)
Humidity 0~95%(non-condensing)
Certification
Certification CE, FCC



HDCVI Accessory Series | PFM809-4MP

www.dahuasecurity.com
Order Information
Type Part Number Description
HDCVI Accessories
PFM800-E 1-channel passive Balun
PFM800-4MP 1-channel passive Balun
PFM801-4MP 1-channel passive HDCVI Balun with power
PFM809-4MP 16-channel passive HDCVI Balun
Related Accessories
PFM920I-5EUN 305m UTP CAT5E cable
PFM920I-5EU-C/U 305m UTP CAT5E cable
PFM920I-6UN-C/U 305m UTP CAT6 cable
PFM920I-6U-C/U 305m UTP CAT6 cable

Dimensions (mm/inch)




HDCVI Accessory Series | PFM809-4MP


Rev 001.001 © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

www.dahuasecurity.com


Application

Comment: 1 or 2 to be selected

Package Information
* 16-Channel Passive HDCVI Balun PFM809-4MP *1
* Application manual *1
* Round foot mat *4
* Rack-mounting ear *2
* Rack-mount screws *8
* Desiccant *1
