www.dahuasecurity.com
DH-PFS3006-4GT-60

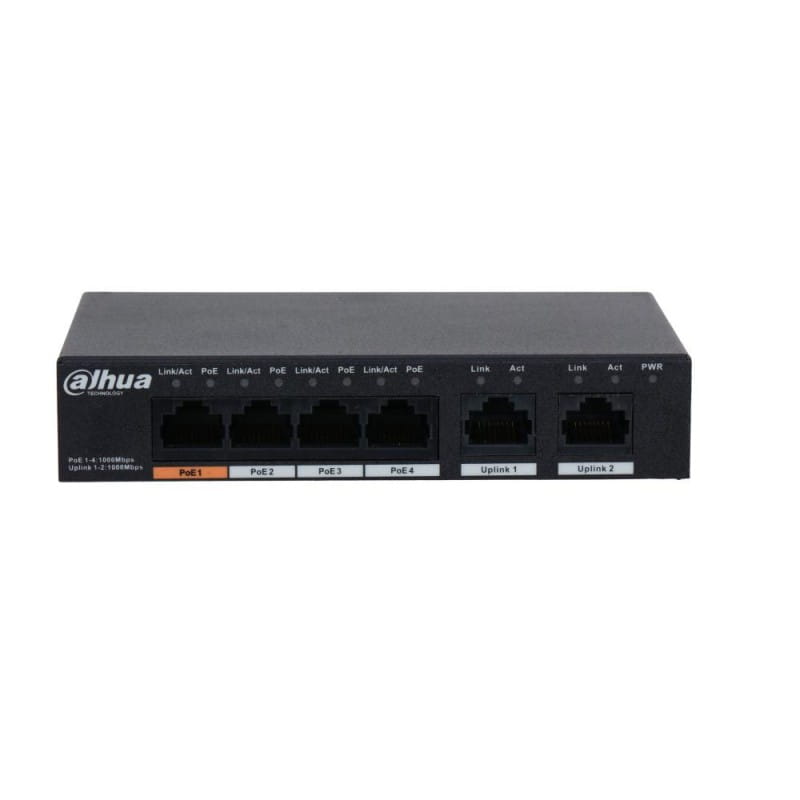

6-Port Unmanaged Desktop Gigabit Switch with 4-Port PoE

· Layer 2 commercial switch
· Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x
standards
· MAC auto study and aging, MAC table size is 2K
· MDI/MDIX self-adaption
· Adopts metal enclosure
· Port 1 supports Hi-PoE 60W power supply
· Wall-mount installation
· Anti-theft lock hole
DH-PFS3006-4GT-60
Functions
Intelligent PoE
Adopt PoE power consumption management strategy, and supply power
to important ports first. When total power consumption exceeds the set
threshold value of the system, power down the ports from large port
number to small port number. Adopt smart detection to prevent outage.
Supply power with ultra-wide power range, and adapt to IPC power
consumption fluctuations in severe environment.
Eight-PIN Assignment PoE Power Supply
The Eight-PIN Ethernet port supports power supply, to enhance front-
end and rear-end compatibility.
Reduce cable loss and promote loading capacity.
Easy Installation
Support desktop and wall mounting. The anti-theft lock hole supports
mechanical anti-theft function.
Wide Working Temperature
With operating temperature ranging from -10°C to +55°C (+14°F to
+131°F), the switch is designed for relatively severe temperature
environments.
System Overview
The 6-Port Unmanaged Desktop Switch with 4-Port PoE is a type of
layer 2 commercial switch, which supports full gigabit access. It provides
four 10/100/1000 Mbps Ethernet ports and two 10/100/1000 Mbps
uplink ports.The product is equipped with high performance switching
engine and large buffer, which features low transmission delay and high
reliability.
Advantages of solid and sealed all-metal case design, low power
consumption, fanless and efficient surface heat dissipation make it work
in the environment from -10°C to 55°C.
Application
The 6-Port Unmanaged Desktop Switch with 4-Port PoE is applicable to
small-scale monitoring network, such as office desktop, school, hotel,
supermarket and hospital.

Technical Speciﬁcation
Hardware
Ethernet Port
Port 1-4 ：4 x RJ45 10/100/1000 Mbps (PoE)
Port 5-6 ：2 x RJ45 10/100/1000 Mbps (uplink)
PoE BudgetPort 1≤ 60W (Hi-PoE), Port 2-4 ≤30W, Total≤60W
Power Consumption (static)
0.96W
Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x
PoE StandardIEEE802.3af, IEEE802.3at, Hi-PoE
PoE Pin AssignmentPoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE ManagementSupport
Switching Capacity14 Gbps
Packet Forwarding Rate8.928 Mpps
Packet Buffer Memory1 Mbit
MAC Table Size2K
Flow ControlEnable by default
Operating Humidity5%–95%
Power SupplyExternal power adpater: 53V DC
Thunderproof
Common mode: 2kV
Differential mode: 1kV
ESD
Air discharge: 8kV
Contact discharge: 6kV
MountingSupport desktop and wall mounting
Anti-theft Lock HoleSupport
Operating Temperature-10°C to 55°C (14°F to 131°F)
Weight
Net weight: 0.3 kg (0.66 lb)
Box weight (with accessory): 0.95 kg (2.09 lb)
Protective box weight (with accessory): 8.13 kg
(17.92 lb)
Dimensions (W x D x H)130 mm x 85 mm x 26 mm (5.12” x 3.35” x 1.02”)
Packaging Dimensions
(W x D x H)
Packing box: 267 mm x 239 mm x 77 mm (10.51” x
9.41” x 3.03”)
Protective box: 549 mm x 253 mm x 331 mm
(21.61”x 9.96” x 13.03”)

www.dahuasecurity.com
DH-PFS3006-4GT-60

Dimensions (mm[inch])

130.0 [5.12]

26.0
[1.02]

84.8
[3.34]

Rev 001.001
