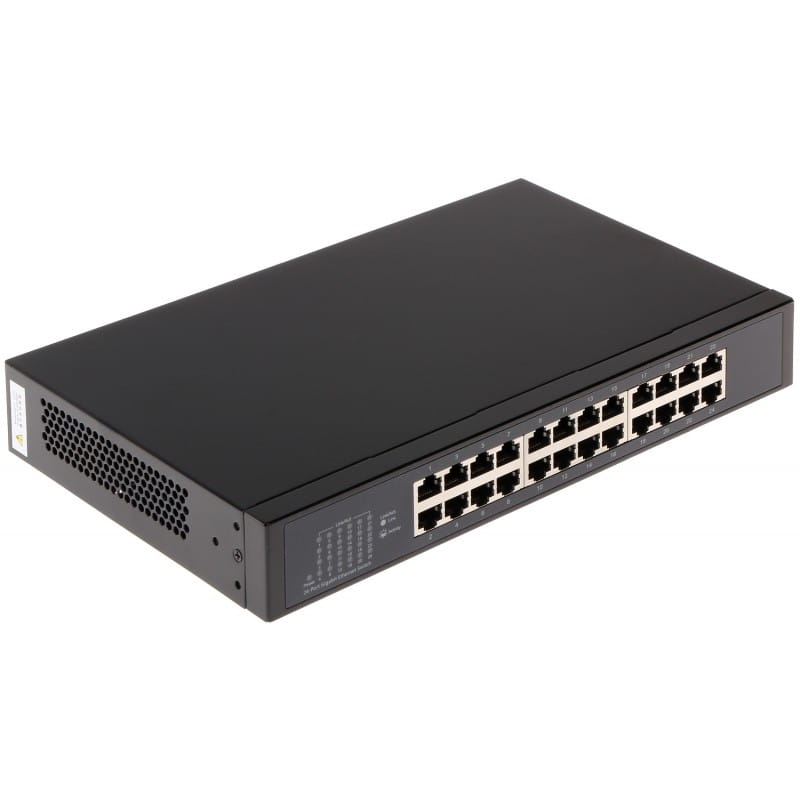

PFS3024-24GT
Description
DH-PFS3024-24GT www.dahuasecurity.com Features · Layer 2 unmanaged access switch · All gigabit Ethernet ports · Lightning protection · Plug and play · Adopts metal enclosure · Good heat dissipation DH-PFS3024-24GT 24-Port Gigabit Switch (Unmanaged) Technical Specification Model DH-PFS3024-24GT Ethernet Port 24*10/100/1000 Base-T Switching Capacity 48G Packet Forwarding Rate35.7Mpps Packet Buffer Memory2Mb MAC Table Size8K Exchange ModeStore & forward Application Humidity10%~90% PowerAC: 100-240V; 50/60Hz Lightning Protection Common Mode 6KV Differential Mode 0.5KV Working Temperature0°C~+40°C Weight1.43kg Dimension(WxDxH)294mm x 178mm x 44mm...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DH-PFS3024-24GT
www.dahuasecurity.com
Features
· Layer 2 unmanaged access switch
· All gigabit Ethernet ports
· Lightning protection
· Plug and play
· Adopts metal enclosure
· Good heat dissipation
DH-PFS3024-24GT
24-Port Gigabit Switch (Unmanaged)
Technical Specification
Model DH-PFS3024-24GT
Ethernet Port
24*10/100/1000 Base-T
Switching Capacity
48G
Packet Forwarding Rate35.7Mpps
Packet Buffer Memory2Mb
MAC Table Size8K
Exchange ModeStore & forward
Application Humidity10%~90%
PowerAC: 100-240V; 50/60Hz
Lightning Protection
Common Mode 6KV
Differential Mode 0.5KV
Working Temperature0°C~+40°C
Weight1.43kg
Dimension(WxDxH)294mm x 178mm x 44mm
