PFS3008-8ET-L

www.dahuasecurity.com  DH-PFS3008-8ET-L  8-Port Desktop Fast Ethernet Switch    DH-PFS3008-8ET-L   System Overview  8 x 10/100 Mbps adaptive ports, highly integrated design, compact,  portable, easy to operate, suitable for small and medium office and  home networks.    Application  The product is applicable to small and medium office and home  networks.      Technical Specification  Performance  LayerLayer 2  ManagedNo  Hardware  Standard Power SupplyYes  PoENo  Ethernet Port8  Ethernet Port Rate100 Mbps  Power Supply5V/500mA DC  Operating Temperature-10°C to 55°C (14°F to 131°F)  Operating Humidity10%–90%  Storage Temperature-40°C to 70°C (-40°F to 158°F)  Storage Humidity10%–90%  Power Consumption  Idling: 0.69W  Full load: 1.5W  Performance  Switching Capacity1.6 Gbps  Packet Forwarding Rate1.19 Mpps  Packet Buffer Memory448 Kbits  MAC Table Size1K  Standards Compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x    General  ESD  Air discharge: 8kV  Contact discharge: 4kV  ThunderproofCommon mode: 2kV  Net Weight0.09 kg (0....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.dahuasecurity.com
DH-PFS3008-8ET-L

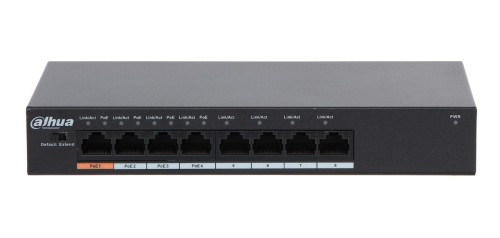

8-Port Desktop Fast Ethernet Switch

DH-PFS3008-8ET-L
System Overview
8 x 10/100 Mbps adaptive ports, highly integrated design, compact,
portable, easy to operate, suitable for small and medium office and
home networks.

Application
The product is applicable to small and medium office and home
networks.


Technical Specification
Performance
LayerLayer 2
ManagedNo
Hardware
Standard Power SupplyYes
PoENo
Ethernet Port8
Ethernet Port Rate100 Mbps
Power Supply5V/500mA DC
Operating Temperature-10°C to 55°C (14°F to 131°F)
Operating Humidity10%–90%
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Storage Humidity10%–90%
Power Consumption
Idling: 0.69W
Full load: 1.5W
Performance
Switching Capacity1.6 Gbps
Packet Forwarding Rate1.19 Mpps
Packet Buffer Memory448 Kbits
MAC Table Size1K
Standards Compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x

General
ESD
Air discharge: 8kV
Contact discharge: 4kV
ThunderproofCommon mode: 2kV
Net Weight0.09 kg (0.20 lb)
Gross Weight0.2 kg (0.44 lb)
Dimensions125 mm x 65 mm x 22 mm (4.92" x 2.56" x 0.87" )
Packaging Dimensions128 mm x 77 mm x 78 mm (5.04" x 3.03" x 3.07" )

Dimensions (mm[inch])

Rev 001.001
© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
· Compact design: Miniature size and light weight make it easy to deploy
· Plug and play: No configuration required
· Green technology: Adopts high quality environmentally friendly plastics
· 7x24H: Stable performance for long-term operation
