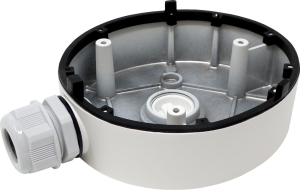

DS-1280ZJ-TR13
DS-1280ZJ-TR13 Junction Box Feature Adopts aluminum alloy die-casting formation Applied to both indoor and outdoor conditions Dimension Φ 110 mm (4.33")Φ 70 mm (2.76") 144 .3 mm (5 .68 ") 3-M4 48 mm (1.89") 43.5 mm (1.71") Available Model DS-1280ZJ-TR13 Parameter Model Parameters DS-1280ZJ-TR13 Junction Box Appearance Hikvision White Material Aluminum Alloy Dimension Φ110 mm x 144.3 mm x 48 mm (4.33" x 5.68" x 1.89") Weight Approx. 247 g (0.54 lb.) Notes The junction box should be installed on a flat surface. The waterproof rubber is necessary for the outdoor application. The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the junction box. The maximum load capacity of the junction box is 0.5 kg (1.10 lb.)....
Warranty: 36 mon.
Datasheet
Availability: 101-500

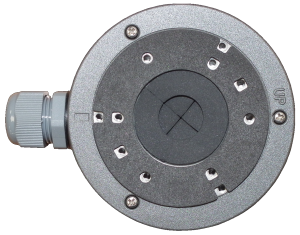

DS-1280ZJ-XS
Quality, Reliability, Price DynamicCCTVLtd DS-1280ZJ-XS SPEC Parameters Junction box Colour Hik White Feature Suitable for bullet cameras Material Aluminum Alloy Dimension Ø100 x 43.2 x 129mm Weight 320g unit: mm FEATURES: ŸAluminum alloy material with surface spray treatment ŸWaterproof design ŸCable hole on bracket makes the feature better Ø100129 4 3 .2 INFORMATION: ŸThe bracket should be installed on a flat wall ŸThe wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount ŸThe maximum load capacity of the bracket is 4.5kg ŸWaterproof ribber is necessary for outdoor application Dynamic CCTV 9B / 9C Bowes Road Riverside Park, Middlesbrough, TS2 1LU Tel: 01642 220166 Website: www.dynamic-cctv.com m²²...
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-1280ZJ-XS(Black)
DS-1280ZJ-XS Junction Box for Dome(Bullet) Camera Features: Aluminum alloy material with surface spray treatment Cable hole on bracket makes the feature better Dimension: Order Model: DS-1280ZJ-XS Parameter: Model Parameters DS-1280ZJ-XS Junction Box for Dome(Bullet) Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ100 x 43.2 x 129mm Weight 320g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual bracket may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-1281ZJ-DM23
DS-1281ZJ-DM23 Inclined Ceiling Mount Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Cable hole on bracket makes the feature better Dimension: Order Model: DS-1281ZJ-DM23 Parameter: Model Parameters DS-1281ZJ-DM23 Inclined Ceiling Mount Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ136x48mm Weight 245g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-1281ZJ-DM25
DS-1281ZJ-DM25 Inclined Ceiling Mount Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Cable hole on bracket makes the feature better Dimension: Order Model: DS-1281ZJ-DM25 Parameter: Model Parameters DS-1281ZJ-DM25 Inclined Ceiling Mount Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension 153x164x45mm Weight 300g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above. A D9...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1281ZJ-DM27
DS-1281ZJ-DM27 Inclined Ceiling Mount Bracket for Dome Camera Features: Enhanced plastic material Inclined ceiling mount bracket for dome camera. Cable hole on bracket makes the feature better Dimension: Order Model: DS-1281ZJ-DM27 Parameter: Model Parameters DS-1281ZJ-DM27 Inclined Ceiling Mount Bracket for Dome Camera Appearance Hikvision White Material Plastic Dimension 111.8x40.5x108.3mm Weight 45.8g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual bracket may vary from the picture above. *G3/ 4 underport ?24.5±0.001 15°±0° ?108.3±0.001 ?24.106±0.00156±0.001 *80.6±0.001 26.002±0.001 3-R39.5±0.001 *0.95±0.001 *1.75±0.001 （6.849±0.001） 1±0.001 1.7±0.001...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1281ZJ-DM45
DS-1281ZJ-DM45 Inclined Ceiling Mount Features Aluminum alloy with surface spray treatment Side inlet, and bottom inlet Applies to both indoor conditions, and outdoor conditions Dimension Ø 130 mm (5.12" ) 46 mm (1 .81 ) Ø 139 .67 mm (5 .50 ) Ø 48.26 mm (1.90 ) 3-M4 Depth: 8 mm (0.31") 83.6 mm (3.29 ) Available Model DS-1281ZJ-DM45 Parameter Model Parameters DS-1281ZJ-DM45 Inclined Ceiling Mount Appearance Hikvision White Material Aluminum Alloy Dimension Φ139.67 mm x 48.26 mm (5.50" x 1.90") Weight Approx.: 190 g (0.46 lb.) Notes The mount should be installed on the flat surface. The waterproof rubber is necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount. The maximum load capacity of the mount is 3 kg (6.6 lb.). 0100001080511...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1281ZJ-M
DS-1281ZJ-M Inclined Ceiling Mount Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Dimension: Order Model: DS-1281ZJ-M Parameter: Model Parameters DS-1281ZJ-M Inclined Ceiling Mount Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ157x165.5x60mm Weight 586g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-1281ZJ-M(Black)
DS-1281ZJ-M Inclined Ceiling Mount Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Dimension: Order Model: DS-1281ZJ-M Parameter: Model Parameters DS-1281ZJ-M Inclined Ceiling Mount Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ157x165.5x60mm Weight 586g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1281ZJ-S
DS-1281ZJ-S Inclined Ceiling Mount Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Cable hole on bracket makes the feature better Design with junction box Dimension: Order Model: DS-1281ZJ-S Parameter: Model Parameters DS-1281ZJ-S Junction Box for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ137 x 56.5x 147mm Weight 472g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual bracket may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1282ZJ-DM(mini)
DS-1282ZJ-DM(mini) Gang Box for Mini Dome Dimension: Order Model: DS-1282ZJ-DM(mini) Parameter: Model Parameters DS-1282ZJ-DM(mini) Gang Box for Mini Dome Appearance Hikvision White Material Plastic Dimension Φ120 mm Weight 33g Note: The actual dome camera may vary from the picture above....
Warranty: 36 mon.
Datasheet
Availability: 0

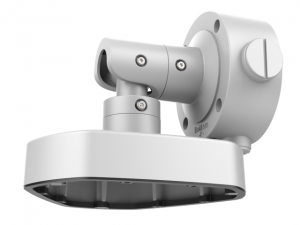

DS-1283ZJ
DS - 1283ZJ Wall Mounting Bracket for Fisheye Features Aluminum alloy material with surface spray treatmen t The camera can be fixed on the bracket directly Design of cap is for convenient wiring The bracket can be adjusted in the panning and tilting direction for the mounting angle adjustment Dimension Φ149.5 3-M4 198.2 152.6 164 Φ88.5 3 - Φ 5 . 5 Available Model DS - 1283ZJ Parameters Model Parameters DS-1283ZJ Wall Mounting Bracket for Fisheye Appearance Hikvision White Material Aluminum Alloy Dimension 164x152.6x198.2mm Weight 785g Adjustment Angle Panning: 360° Tilting: 100° Rotation: 360° Notes The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1291ZJ-BL
DS-1291ZJ-BL Desktop/Pendant Mount for Covert Camera Features: Adopt universal regulating mechanism, easy to adjust Support desktop mounting and pendant mounting Dimension: Order Model: DS-1291ZJ-BL Parameter: Model Parameters DS-1291ZJ-BL Desktop/Pendant Mount for Covert Camera Appearance Black Material Plastic Dimension 87x73x73mm Weight 70.5g Note: The actual dome camera may vary from the picture above. 1/4-20UNC 44 72.3 72.3 88.3...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1292ZJ
DS-1292ZJ Indoor/Outdoor Wall Mount Bracket Features: Aluminum alloy material with surface spray treatment The bracket has built-in outlet hole Camera soleplate has sponge mat Camera soleplate is rotatable Dimension: Order Model: DS-1292ZJ Parameter: Model Parameters DS-1292ZJ Wall Mount Bracket for Box Camera Appearance Hik White Application For box, bullet and zoom camera Material Aluminum alloy Angle adjustment Horizontal: 360°; Vertical: -45°〜45° Dimension 70x97.1x181.8mm Weight 201g Accessories DS-1275ZJ(Vertical Pole mount bracket) Notice: Notice the color of bracket. The bracket should be installed on flat wall. The diameter of outlet hole must be less than 6.5mm. The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 2KG. Installation Step: ① Choose the proper wall ② Complete bracket installation, threading, adjust direction of pedestal ③ Fix camera on the soleplate Note: A i...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1293ZJ
DS-1293ZJ Indoor/Outdoor Wall Mount Bracket Features: Aluminum alloy material with surface spray treatment The bracket has built-in outlet hole Camera soleplate has sponge mat Camera soleplate is rotatable Dimension: Order Model: DS-1293ZJ Parameter: Model Parameters DS-1293ZJ Wall Mount Bracket for Box Camera Appearance Hik White Application For box, bullet and zoom camera Material Aluminum alloy Angle adjustment Horizontal: 360°; Vertical: -45°〜45° Dimension 88x116.6x297.3mm Weight 473g Accessories DS-1275ZJ(Vertical Pole mount bracket) Notice: Notice the color of bracket. The bracket should be installed on flat wall. The diameter of outlet hole must be less than 6.5mm. The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 6KG. Installation Step: ① Choose the proper wall ② Complete bracket installation, threading, adjust direction of pedestal ③ Fix camera on the soleplate Note: A i...
Warranty: 36 mon.
Datasheet
Availability: 51-100
DS-1293ZJ-P
DS -1293ZJ- P Wall Mount Feature Aluminum alloy with surface spray treatment Cable hole design facilitates cable routing Applies to both indoor conditions and outdoor conditions Dimension 297 .3 mm (11 .7 " ) 53 mm (2 .09 " ) 13 mm (0 .51 " ) 34.4 mm (1.35" ) 80 mm (3 .15 " ) 122.9 mm (4.83" ) 88 mm (3 .46 " ) 71 mm (2 .80 " ) 3-Ø 7 mm (0.28" ) 99.7 mm (3.93" ) Available Model DS -12 93 ZJ-P Parameter Model Parameters DS -12 93 ZJ-P Wall Mount Appearance Platinum Gray Material Aluminum Alloy Dimension 122.9 mm x 88 mm x 297.3 mm (4.83" x 3.46 " x 11 .7") Weight Approx. 473 g (1.04 lb.) Note The mount should be installed on the flat surface. The waterproofing measures are necessary for the outdoor application. The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount. The maximum load capacity of the mount is 6 kg (13.2 lb.). 0100001080528...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-1294ZJ
DS-1294ZJ Wall Mount Bracket for PTZ Camera Features: Toughened plastic material with surface spray treatment Hikvision white Dimension: Order Model: DS-1294ZJ Parameter: Model Parameters DS-1294ZJ Wall Mount Bracket for PTZ Camera Appearance Hik White Material Toughened Plastic Dimension 230x80x130mm Weight 450g Notice: The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Note: The actual dome camera may vary from the picture above. 223.9 125.8 80 n83.5...
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-1294ZJ-PT
‘ DS-1294ZJ-PT Wall Mount Feature Plastic and steel with surface spray treatment Cable hole design facilitates the installation Applies to both indoor conditions, and outdoor conditions Dimension 4-Ø 6 mm (0.24" ) 60 mm (2 .36 " ) 30 mm (1.18" ) 25.4 mm (1" ) 223.5 mm (8.8" ) 32 mm (1.26" ) 125 .8 mm (4 .95 " ) Ø 83.6 mm (3.29" )5-M4 Ø 83.5 mm (3.29" ) 2-Ø 6 mm (0.24" ) 72 .4 mm (2 .85 " ) 60 mm (2 .36 " ) 10° 80 mm (3 .15 " ) Available Model DS-1294ZJ-PT Parameter Model Parameters DS-1294ZJ-PT Wall Mount Appearance Hikvision White Material Plastic and Steel Dimension 223.5 mm x 125.8 mm x 80 mm (8.8" x 4.95" x 3.15") Weight 480 g (1.06 lb.) Note The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount. The mount’s maximum load capacity is 3 kg (6.6 lb.). 0100001080426...
Warranty: 36 mon.
Datasheet
Availability: >1000
