DS-1293ZJ-P

DS -1293ZJ- P  Wall Mount      Feature   Aluminum alloy with surface spray treatment   Cable hole design facilitates cable routing   Applies to both indoor conditions and outdoor conditions  Dimension 297  .3  mm  (11  .7  " )  53  mm  (2  .09  " )  13  mm  (0  .51  " )  34.4 mm  (1.35" )  80  mm  (3  .15  " )  122.9 mm (4.83" )  88  mm  (3  .46  " )  71  mm  (2  .80  " )  3-Ø 7 mm (0.28" )  99.7 mm (3.93" )      Available Model  DS -12 93 ZJ-P  Parameter  Model    Parameters    DS -12 93 ZJ-P  Wall Mount  Appearance Platinum Gray  Material Aluminum Alloy  Dimension 122.9 mm x 88 mm x 297.3 mm (4.83" x 3.46 " x 11 .7")  Weight Approx. 473 g (1.04 lb.)  Note   The mount should be installed on the flat surface.   The waterproofing measures are necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the  mount.   The maximum load capacity of the mount is 6 kg (13.2 lb.).    0100001080528...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

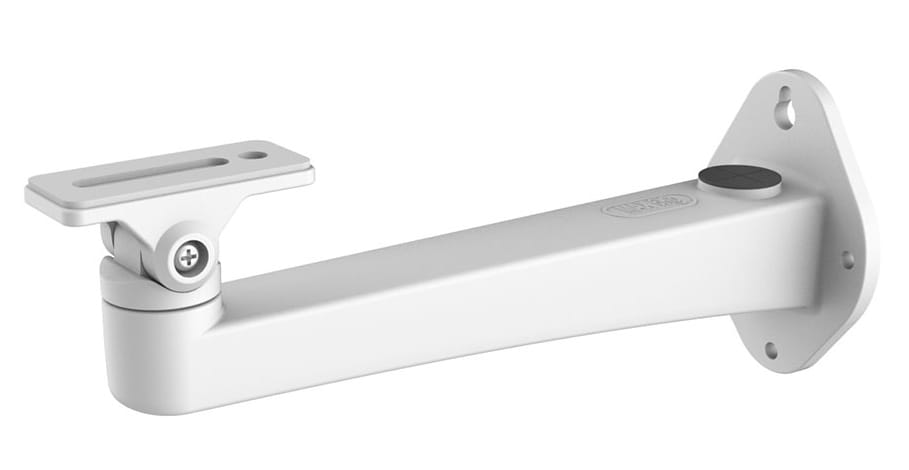

DS -1293ZJ- P
Wall Mount


Feature
 Aluminum alloy with surface spray treatment
 Cable hole design facilitates cable routing
 Applies to both indoor conditions and outdoor conditions
Dimension 297
.3
mm
(11
.7
" )
53
mm
(2
.09
" )
13
mm
(0
.51
" )
34.4 mm
(1.35" )
80
mm
(3
.15
" )
122.9 mm (4.83" )
88
mm
(3
.46
" )
71
mm
(2
.80
" )
3-Ø 7 mm (0.28" )
99.7 mm (3.93" )


Available Model
DS -12 93 ZJ-P
Parameter
Model

Parameters

DS -12 93 ZJ-P
Wall Mount
Appearance Platinum Gray
Material Aluminum Alloy
Dimension 122.9 mm x 88 mm x 297.3 mm (4.83" x 3.46 " x 11 .7")
Weight Approx. 473 g (1.04 lb.)
Note
 The mount should be installed on the flat surface.
 The waterproofing measures are necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the
mount.
 The maximum load capacity of the mount is 6 kg (13.2 lb.).

0100001080528
