DS-1281ZJ-DM27

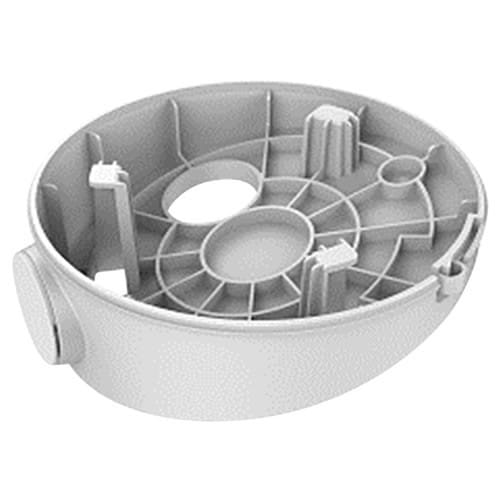

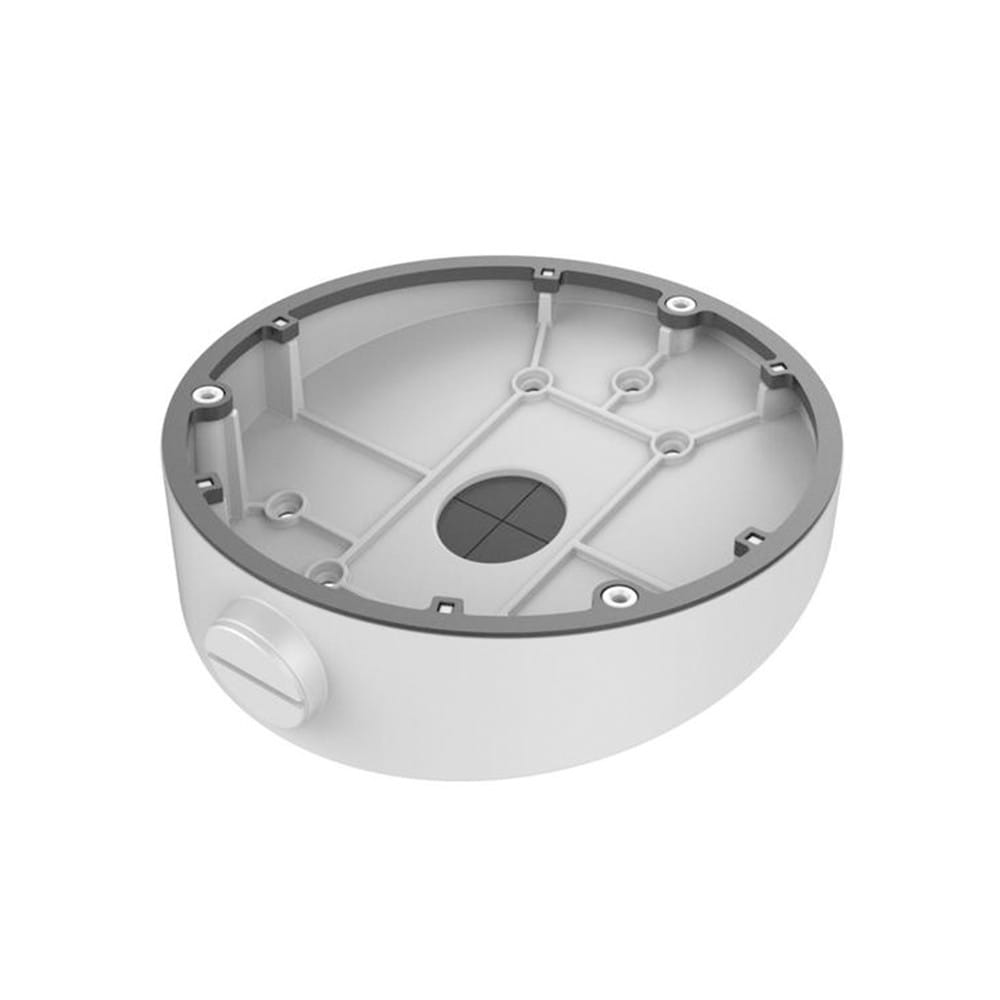

DS-1281ZJ-DM27  Inclined Ceiling Mount Bracket for  Dome Camera    Features:   Enhanced plastic material   Inclined ceiling mount bracket for dome  camera.   Cable hole on bracket makes the feature  better  Dimension:          Order Model:  DS-1281ZJ-DM27  Parameter:  Model    Parameters  DS-1281ZJ-DM27  Inclined Ceiling Mount Bracket for  Dome Camera  Appearance Hikvision White  Material Plastic  Dimension 111.8x40.5x108.3mm  Weight 45.8g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount.   The maximum load capacity of the bracket is 4.5KG      Note: The actual bracket may vary from the picture above.  *G3/ 4  underport  ?24.5±0.001  15°±0°  ?108.3±0.001  ?24.106±0.00156±0.001  *80.6±0.001  26.002±0.001  3-R39.5±0.001  *0.95±0.001  *1.75±0.001  （6.849±0.001）  1±0.001  1.7±0.001...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1281ZJ-DM27
Inclined Ceiling Mount Bracket for
Dome Camera

Features:
 Enhanced plastic material
 Inclined ceiling mount bracket for dome
camera.
 Cable hole on bracket makes the feature
better
Dimension:




Order Model:
DS-1281ZJ-DM27
Parameter:
Model

Parameters
DS-1281ZJ-DM27
Inclined Ceiling Mount Bracket for
Dome Camera
Appearance Hikvision White
Material Plastic
Dimension 111.8x40.5x108.3mm
Weight 45.8g
Notice:
 The bracket should be installed on flat wall
 Waterproof rubber is necessary for outdoor application
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG


Note: The actual bracket may vary from the picture above.
*G3/ 4
underport
?24.5±0.001
15°±0°
?108.3±0.001
?24.106±0.00156±0.001
*80.6±0.001
26.002±0.001
3-R39.5±0.001
*0.95±0.001
*1.75±0.001
（6.849±0.001）
1±0.001
1.7±0.001
