DS-1294ZJ-PT

‘    DS-1294ZJ-PT  Wall Mount    Feature   Plastic and steel with surface spray treatment   Cable hole design facilitates the installation   Applies to both indoor conditions, and outdoor conditions  Dimension  4-Ø 6 mm  (0.24" )   60  mm  (2  .36  " )   30 mm  (1.18" )   25.4 mm  (1" )   223.5 mm (8.8" )  32 mm (1.26" )  125  .8  mm  (4  .95  " )   Ø 83.6 mm (3.29" )5-M4 Ø 83.5 mm (3.29" )   2-Ø 6 mm (0.24" )  72  .4  mm  (2  .85  " )  60  mm  (2  .36  " )  10°  80  mm  (3  .15  " )      Available Model  DS-1294ZJ-PT  Parameter  Model    Parameters  DS-1294ZJ-PT  Wall Mount  Appearance Hikvision White  Material Plastic and Steel  Dimension 223.5 mm x 125.8 mm x 80 mm (8.8" x 4.95" x 3.15")  Weight 480 g (1.06 lb.)  Note   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The mount’s maximum load capacity is 3 kg (6.6 lb.).      0100001080426...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

‘

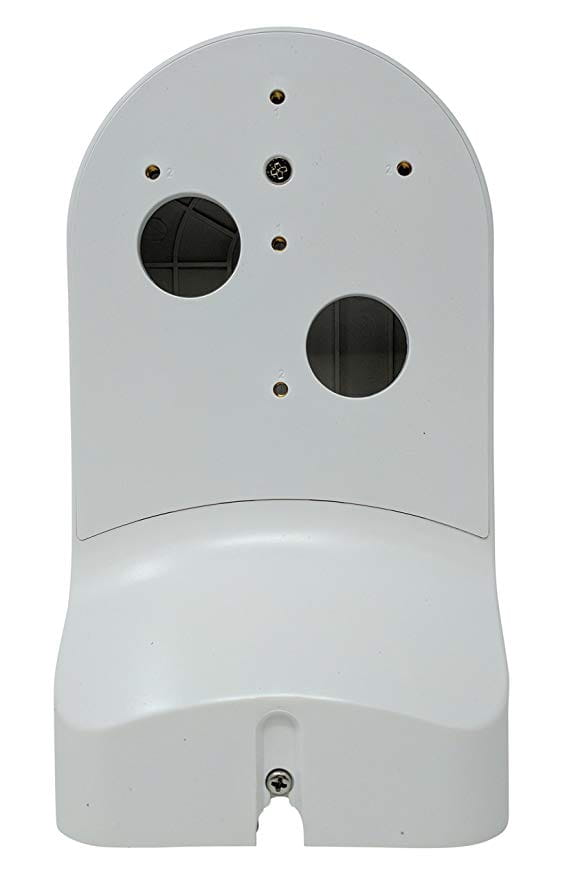

DS-1294ZJ-PT
Wall Mount

Feature
 Plastic and steel with surface spray treatment
 Cable hole design facilitates the installation
 Applies to both indoor conditions, and outdoor conditions
Dimension
4-Ø 6 mm
(0.24" )
60
mm
(2
.36
" )
30 mm
(1.18" )
25.4 mm
(1" )
223.5 mm (8.8" )
32 mm (1.26" )
125
.8
mm
(4
.95
" )
Ø 83.6 mm (3.29" )5-M4 Ø 83.5 mm (3.29" )
2-Ø 6 mm (0.24" )
72
.4
mm
(2
.85
" )
60
mm
(2
.36
" )
10°
80
mm
(3
.15
" )


Available Model
DS-1294ZJ-PT
Parameter
Model

Parameters
DS-1294ZJ-PT
Wall Mount
Appearance Hikvision White
Material Plastic and Steel
Dimension 223.5 mm x 125.8 mm x 80 mm (8.8" x 4.95" x 3.15")
Weight 480 g (1.06 lb.)
Note
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The mount’s maximum load capacity is 3 kg (6.6 lb.).


0100001080426
