DS-1280ZJ-TR13

DS-1280ZJ-TR13  Junction Box      Feature   Adopts aluminum alloy die-casting formation   Applied to both indoor and outdoor conditions  Dimension  Φ 110 mm  (4.33")Φ 70 mm  (2.76")  144  .3  mm  (5  .68  ")  3-M4  48 mm (1.89")  43.5 mm (1.71")      Available Model  DS-1280ZJ-TR13  Parameter  Model    Parameters  DS-1280ZJ-TR13  Junction Box  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ110 mm x 144.3 mm x 48 mm (4.33" x 5.68" x 1.89")  Weight Approx. 247 g (0.54 lb.)  Notes   The junction box should be installed on a flat surface.   The waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the  junction box.   The maximum load capacity of the junction box is 0.5 kg (1.10 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

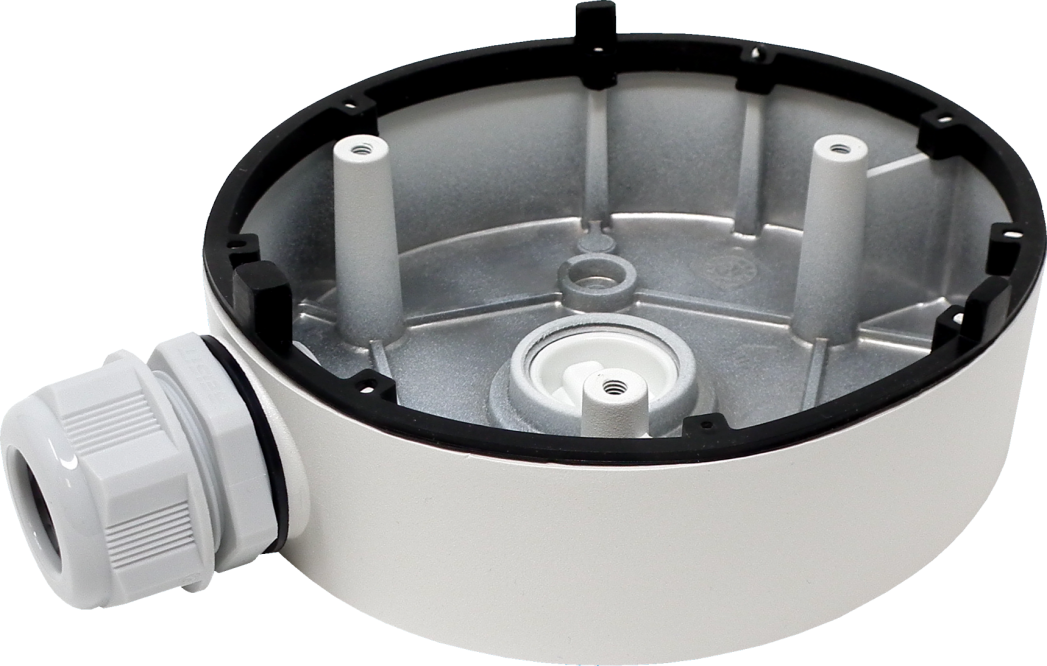

DS-1280ZJ-TR13
Junction Box


Feature
 Adopts aluminum alloy die-casting formation
 Applied to both indoor and outdoor conditions
Dimension
Φ 110 mm
(4.33")Φ 70 mm
(2.76")
144
.3
mm
(5
.68
")
3-M4
48 mm (1.89")
43.5 mm (1.71")


Available Model
DS-1280ZJ-TR13
Parameter
Model

Parameters
DS-1280ZJ-TR13
Junction Box
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ110 mm x 144.3 mm x 48 mm (4.33" x 5.68" x 1.89")
Weight Approx. 247 g (0.54 lb.)
Notes
 The junction box should be installed on a flat surface.
 The waterproof rubber is necessary for the outdoor application.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the
junction box.
 The maximum load capacity of the junction box is 0.5 kg (1.10 lb.).
