HIKVISION

DS-KV6113-WPE1  Single-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi          Specifications    Model DS-KV6113-WPE1  System parameters  Flash 32 M, 16 M  RAM 256M  Operation method Single-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate 64 Kbps  Audio ...

Warning! Product withdrawn from production!

Replacement product: DS-KV6113-WPE1(C)

Replacement product code: 305303879

Warranty: 24 mon.

Datasheet

DS-KV8x02-IM Series  Metal Villa Door Station      • SOC Processor  • Video Intercom and Access Control  • Issue Cards @ Door Station  • Built-In IC Card Reader; Supports  External Card Readers  • Self-Adaptive Supplemental IR  • One-Touch Calling  • Remote Reboot and Upgrade  • Time Synchronization via NTP  • Batch Configuration  • Remotely Unlock via Client or App  • Remotely Answer Call via Client or App    Hikvision’s DS-KV8x02-IM Series Door Stations are full  digital villa door machines, designed with single, two  resident, and four resident configurations in three different  styles, suitable for single-family villas. The small, light, and  thin host features easy installation.  Hikvision DS-KV8x02-IMs offer HD video surveillance with  high performance CMOS, 1.3 MP resolution camera (wide  dynamic, 120 degree angle of view), support for 7 x 24  full-time preview and video.  The Hikvision DS-KV8x02-IM Series supports local issuing  functions, and can store information on 256 access cards.  Auto uploads captured pictures to an FTP server or the  client while unlocking the door.  DS-KV8x02-IM Series Door Stations can integrate with an  NVR, send...

Warranty: 24 mon.

Datasheet

DS-KV8102-IP  DS-KV8102-VP         Video intercom function   HD video surveillance (Max. resolution: 1280x720@25fps, WDR, 120° wide angle)   Self-adaptive light supplement   Access control function   Activating card via local station function (This function will be invalid if the card has been  activated via iVMS-4200)   Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door   Door magnetic alarm and tamper-proof alarm function   Noise suppression and echo cancellation   Remote upgrade, batch setting functions      Plastic Villa Door Station    MAIN FEATURES    DS-KV8102-IP/VP    MODEL      Spec of DS-KV8102-IP/VP Villa Door Station www.hikvision.com  2                  Model  Parameters  DS-KV8102-IP DS-KV8102-VP  System  Parameters  Processor High-Performance Embedded SOC Processor  Operation System Embedded Linux OS  Video  Parameters  Camera CMOS Low Illumination 1.3 MP HD Colorful Camera  Video  Compression  Standards  H.264  Resolution 1280 x 720  Video Frame 25 fp...

Warning! Product withdrawn from production!

Replacement product: DS-KV6113-PE1

Replacement product code: 305301814

Warranty: 24 mon.

Datasheet

DS-KV8102-IP  DS-KV8102-VP         Video intercom function   HD video surveillance (Max. resolution: 1280x720@25fps, WDR, 120° wide angle)   Self-adaptive light supplement   Access control function   Activating card via local station function (This function will be invalid if the card has been  activated via iVMS-4200)   Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door   Door magnetic alarm and tamper-proof alarm function   Noise suppression and echo cancellation   Remote upgrade, batch setting functions      Plastic Villa Door Station    MAIN FEATURES    DS-KV8102-IP/VP    MODEL      Spec of DS-KV8102-IP/VP Villa Door Station www.hikvision.com  2                  Model  Parameters  DS-KV8102-IP DS-KV8102-VP  System  Parameters  Processor High-Performance Embedded SOC Processor  Operation System Embedded Linux OS  Video  Parameters  Camera CMOS Low Illumination 1.3 MP HD Colorful Camera  Video  Compression  Standards  H.264  Resolution 1280 x 720  Video Frame 25 fp...

Warning! Product withdrawn from production!

Replacement product: DS-KV6113-PE1

Replacement product code: 305301814

Warranty: 24 mon.

Datasheet

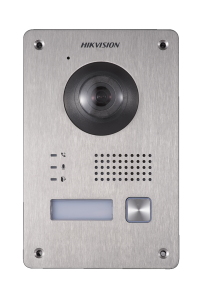

DS-KV8103-IME2  Two-Wire Door Station    Key Features  Typical Application  Basic Functions   Video intercom function   Two wire communication   Self-adaptive IR supplement   High-performance embedded SOC processor   One-touch calling function  Video/Audio Functions   HD video surveillance   Noise suppression and echo cancellation   H.264 video compression   170°°°°   Low illumination  Remote Control   Remote unlocking via the app   Remotely answering the call via the app  Additional Features   Tampering alarm and door magnetic alarm    Indoor Station 1  Indoor Station2  Indoor Station3  Indoor Station4Door Station  Controller      Draft                            Model DS-KV8103-IME2  System  parameters  Processor High-Performance Embedded SOC Processor  Operation system Embedded Linux Operation System  Camera  parameters  Image sensor 1080p  Light sensitivity Low Illumination  Lens 170° Fish Eye  Video  parameters  Video compression  standard  H.264  Video streaming  Dual Stream  Main Stream: 1080P@30fps, Sub-Stream: 480P@30fps  R...

Warranty: 24 mon.

Datasheet

DS-KV8113-WME1  Single-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8113-WME1  System parameters  Flash 32 M  RAM 256M  Operation method Single-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression ...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KV8113-WME1  Video Intercom Villa Door Station          Key Feature  * Standard PoE  * 2 MP HD camera  * Noise suppression and echo cancellation  * Low illumination  * Access control functions  * Tamper-proof  * Configuration remotely via Web  * 2.4 GHz Wi-Fi  * Protection level: IK08    Approval  CE-EMC  a. EN 55032:2015  b. EN 61000-3-2:2014  c. EN 61000-3-3:2013  d. EN 50130-4:2011 +A1:2014  CE-LVD  EN 60950-1:2006 + A11:2009 + A1:2010 +  A12:2011 + A2:2013  CB  IEC 60950-1:2005 (Second Edition) + Am 1:2009  + Am 2:2013  FCC-SDOC 47 CFR Part 15, Subpart B  C-  TICK(EMC)  AS/NZS CISPR 32:2015  UL  UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,  Information Technology Equipment – Safety –  Part 1: General Requirements  ROHS 2011/65/EU  REACH Regulation (EC) No 1907/2006  WEEE 2012/19/EU          Specification  System parameters  Operation  system  Embedded Linux operation system  Operation  method  Single-button  Flash 32 M  RAM 256 M  Video Parameters  Camera 2MP HD camera  Night vision Low illumination IR supplement mode:3 m  BLC Support  DNR Support ...

Warning! Product withdrawn from production!

Replacement product: DS-KV8113-WME1(C)/Flush

Replacement product code: 305303881

Warranty: 24 mon.

Datasheet

DS-KV8113-WME1  Single-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8113-WME1  System parameters  Flash 32 M  RAM 256M  Operation method Single-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression ...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KV8x02-IM Series  Metal Villa Door Station      • SOC Processor  • Video Intercom and Access Control  • Issue Cards @ Door Station  • Built-In IC Card Reader; Supports  External Card Readers  • Self-Adaptive Supplemental IR  • One-Touch Calling  • Remote Reboot and Upgrade  • Time Synchronization via NTP  • Batch Configuration  • Remotely Unlock via Client or App  • Remotely Answer Call via Client or App    Hikvision’s DS-KV8x02-IM Series Door Stations are full  digital villa door machines, designed with single, two  resident, and four resident configurations in three different  styles, suitable for single-family villas. The small, light, and  thin host features easy installation.  Hikvision DS-KV8x02-IMs offer HD video surveillance with  high performance CMOS, 1.3 MP resolution camera (wide  dynamic, 120 degree angle of view), support for 7 x 24  full-time preview and video.  The Hikvision DS-KV8x02-IM Series supports local issuing  functions, and can store information on 256 access cards.  Auto uploads captured pictures to an FTP server or the  client while unlocking the door.  DS-KV8x02-IM Series Door Stations can integrate with an  NVR, send...

Warning! Product withdrawn from production!

Replacement product: DS-KV8213-WME1

Replacement product code: 305301756

Warranty: 24 mon.

Datasheet

DS-KV8213-WME1  Dual-Buttion Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8213-WME1  System parameters  Flash 32 M  RAM 256M  Operation method Two-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KV8213-WME1  Dual-Buttion Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8213-WME1  System parameters  Flash 32 M  RAM 256M  Operation method Two-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate...

Warning! Product withdrawn from production!

Replacement product: DS-KV8213-WME1(C)/Flush

Replacement product code: 305303883

Warranty: 24 mon.

Datasheet

DS-KV8213-WME1  Dual-Buttion Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8213-WME1  System parameters  Flash 32 M  RAM 256M  Operation method Two-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate...

Warning! Product withdrawn from production!

Replacement product: DS-KV8213-WME1(C)

Replacement product code: 305303882

Warranty: 24 mon.

Datasheet

DS-KV8213-WME1  Dual-Buttion Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8213-WME1  System parameters  Flash 32 M  RAM 256M  Operation method Two-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KV8x02-IM Series  Metal Villa Door Station      • SOC Processor  • Video Intercom and Access Control  • Issue Cards @ Door Station  • Built-In IC Card Reader; Supports  External Card Readers  • Self-Adaptive Supplemental IR  • One-Touch Calling  • Remote Reboot and Upgrade  • Time Synchronization via NTP  • Batch Configuration  • Remotely Unlock via Client or App  • Remotely Answer Call via Client or App    Hikvision’s DS-KV8x02-IM Series Door Stations are full  digital villa door machines, designed with single, two  resident, and four resident configurations in three different  styles, suitable for single-family villas. The small, light, and  thin host features easy installation.  Hikvision DS-KV8x02-IMs offer HD video surveillance with  high performance CMOS, 1.3 MP resolution camera (wide  dynamic, 120 degree angle of view), support for 7 x 24  full-time preview and video.  The Hikvision DS-KV8x02-IM Series supports local issuing  functions, and can store information on 256 access cards.  Auto uploads captured pictures to an FTP server or the  client while unlocking the door.  DS-KV8x02-IM Series Door Stations can integrate with an  NVR, send...

Warning! Product withdrawn from production!

Replacement product: DS-KV8413-WME1

Replacement product code: 305301757

Warranty: 24 mon.

Datasheet

DS-KV8413-WME1  Four-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8413-WME1  System parameters  Flash 32 M  RAM 256M  Operation method 4 buttons  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate 6...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KV8413-WME1  Four-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8413-WME1  System parameters  Flash 32 M  RAM 256M  Operation method 4 buttons  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate 6...

Warning! Product withdrawn from production!

Replacement product: DS-KV8413-WME1(C)/Flush

Replacement product code: 305303885

Warranty: 24 mon.

Datasheet

DS-KV8413-WME1  Four-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8413-WME1  System parameters  Flash 32 M  RAM 256M  Operation method 4 buttons  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate 6...

Warning! Product withdrawn from production!

Replacement product: DS-KV8413-WME1(C)

Replacement product code: 305303884

Warranty: 24 mon.

Datasheet
