DS-KV8213-WME1(B)/Surface

DS-KV8213-WME1  Dual-Buttion Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi  ● Protection level: IK08          Specifications    Model DS-KV8213-WME1  System parameters  Flash 32 M  RAM 256M  Operation method Two-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate...

Warning! Product withdrawn from production!

Replacement product: DS-KV8213-WME1(C)

Replacement product code: 305303882

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

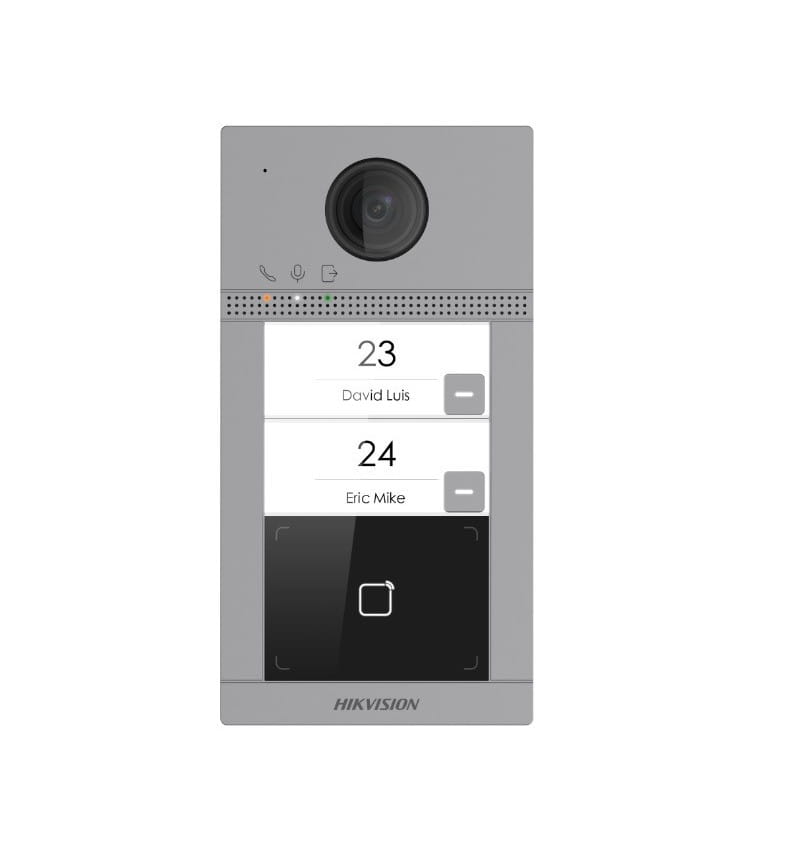

DS-KV8213-WME1
Dual-Buttion Villa Door Station




Key Feature
● Standard PoE
● 2 MP HD camera
● Noise suppression and echo cancellation
● Low illumination
● Access control functions
● Tamper-proof
● Configuration remotely via Web
● 2.4 GHz Wi-Fi
● Protection level: IK08




Specifications

Model DS-KV8213-WME1
System parameters
Flash 32 M
RAM 256M
Operation method Two-button
Operation system Embedded Linux operation system
Video parameters
Camera 2MP HD camera
Night vision
Low illumination
IR supplement mode: 3 m
BLC Support
DNR Support
WDR True WDR
Field of view Horizontal: 129 °, Vertical: 75 °
Video compression standard H.264
Stream
Main stream: 1080p@30fps,
720p@25fps
Sub stream: D1@25fps
Resolution
Main stream: 1920 x 1080p, 720p
Sub stream: 704 x 576
Motion detection Support
Anti-flicker frequency 50 Hz, 60 Hz
Audio parameters
Audio intercom Two-way audio communication
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio compression standard G.711 U
Audio compression rate 64 Kbps
Audio quarity
Noise suppression and echo
cancellation
Network parameters
Wired network 10/100 M Ethernet
Network protocol TCP/IP, RTSP
Access control parameters
Reading frequency 13.56 MHz
Card type Mifare card
Relay 2
Interfaces
RS-485 1
Wi-Fi 2.4G Wi-Fi
Debugging port 1
TF card Max to 128 G
Alarm input 4
Grounding 1
TAMPER switch 1
Physical button 2
General Protection level IP65, IK08



Indicator 3
Power supply
IEEE802.3af, standard PoE
12 VDC
Power consumption ＜ 10 W
Heating module Support
Working temperature -40 °C to +53 °C (-40 °F to +127.4 °F)
Working humidity 10% to 95%
Installation Surface mounting/ Flush mounting
The interface funcitons should be supported by the device.

Available Model
DS-KV8213-WME1
