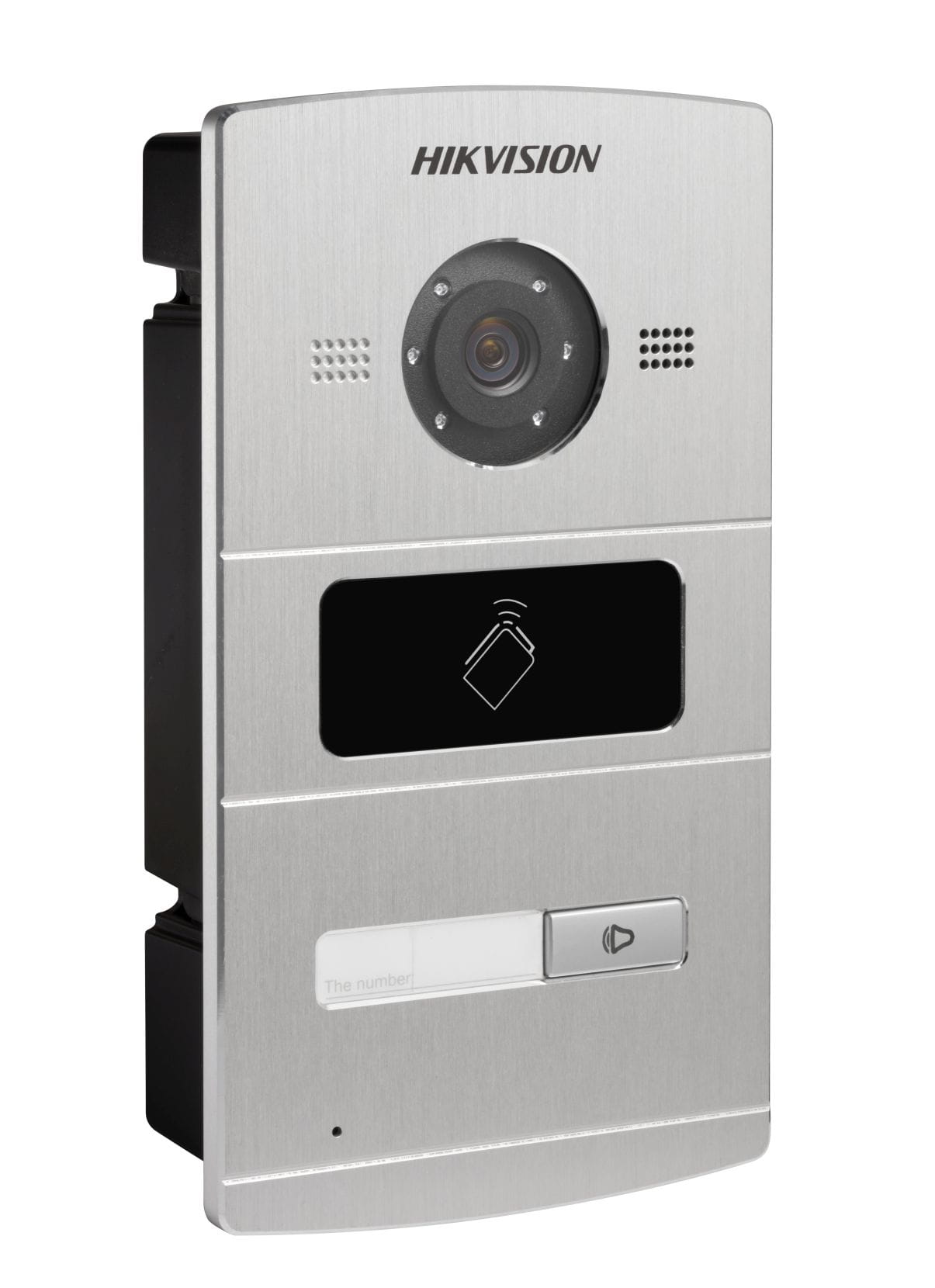

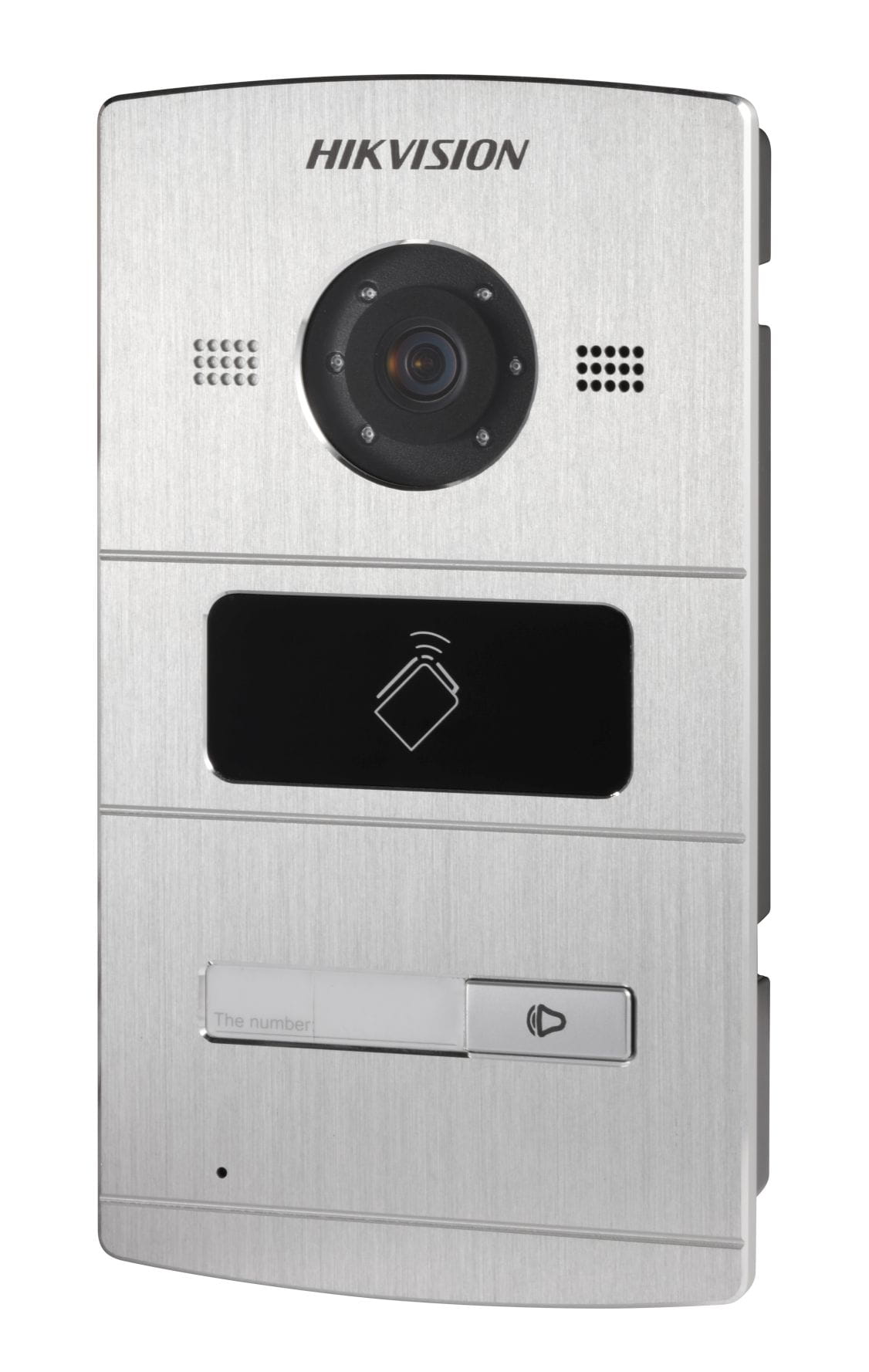

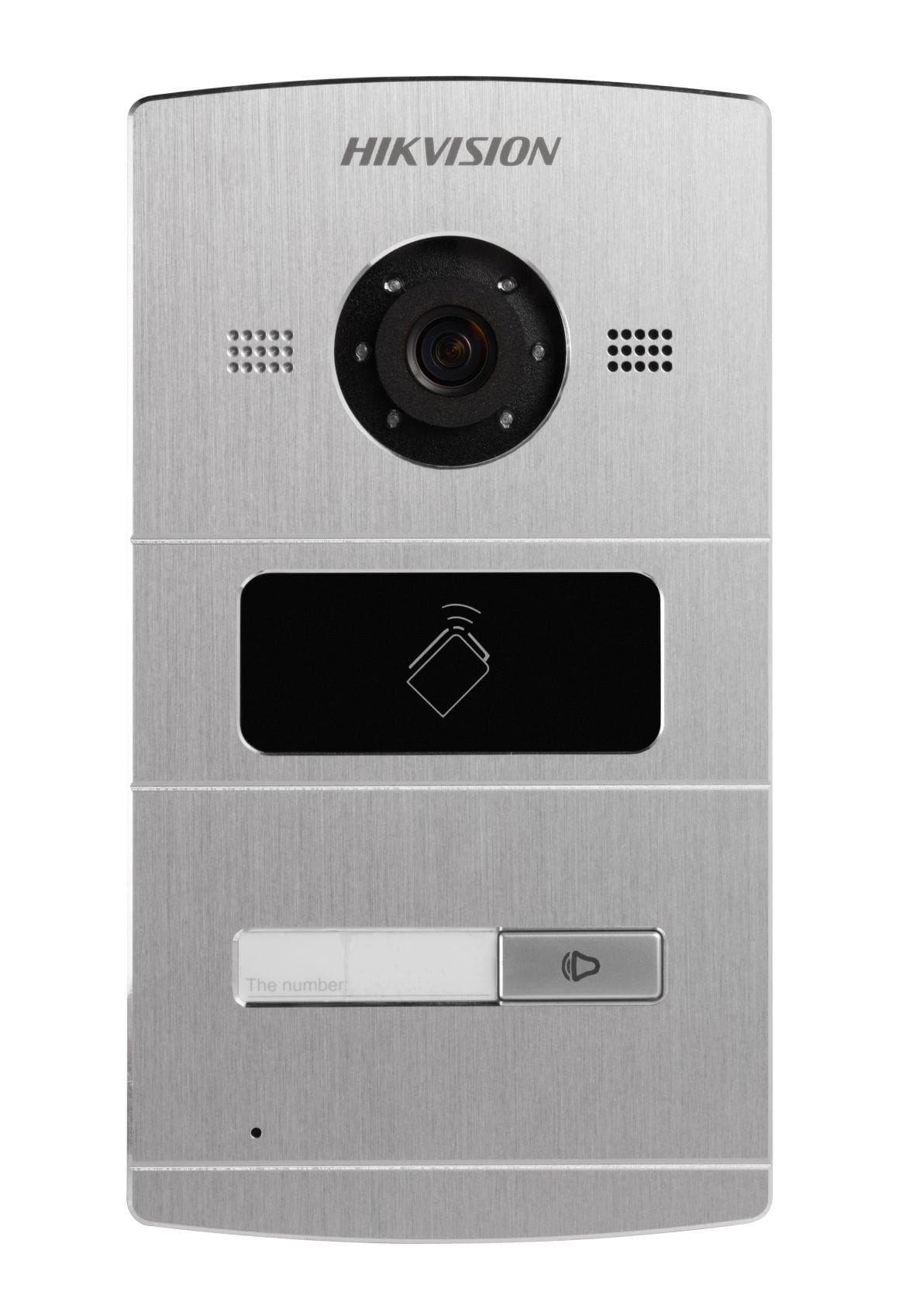

DS-KV8102-IM

DS-KV8x02-IM Series  Metal Villa Door Station      • SOC Processor  • Video Intercom and Access Control  • Issue Cards @ Door Station  • Built-In IC Card Reader; Supports  External Card Readers  • Self-Adaptive Supplemental IR  • One-Touch Calling  • Remote Reboot and Upgrade  • Time Synchronization via NTP  • Batch Configuration  • Remotely Unlock via Client or App  • Remotely Answer Call via Client or App    Hikvision’s DS-KV8x02-IM Series Door Stations are full  digital villa door machines, designed with single, two  resident, and four resident configurations in three different  styles, suitable for single-family villas. The small, light, and  thin host features easy installation.  Hikvision DS-KV8x02-IMs offer HD video surveillance with  high performance CMOS, 1.3 MP resolution camera (wide  dynamic, 120 degree angle of view), support for 7 x 24  full-time preview and video.  The Hikvision DS-KV8x02-IM Series supports local issuing  functions, and can store information on 256 access cards.  Auto uploads captured pictures to an FTP server or the  client while unlocking the door.  DS-KV8x02-IM Series Door Stations can integrate with an  NVR, send...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

DS-KV8x02-IM Series
Metal Villa Door Station


• SOC Processor
• Video Intercom and Access Control
• Issue Cards @ Door Station
• Built-In IC Card Reader; Supports
External Card Readers
• Self-Adaptive Supplemental IR
• One-Touch Calling
• Remote Reboot and Upgrade
• Time Synchronization via NTP
• Batch Configuration
• Remotely Unlock via Client or App
• Remotely Answer Call via Client or App

Hikvision’s DS-KV8x02-IM Series Door Stations are full
digital villa door machines, designed with single, two
resident, and four resident configurations in three different
styles, suitable for single-family villas. The small, light, and
thin host features easy installation.
Hikvision DS-KV8x02-IMs offer HD video surveillance with
high performance CMOS, 1.3 MP resolution camera (wide
dynamic, 120 degree angle of view), support for 7 x 24
full-time preview and video.
The Hikvision DS-KV8x02-IM Series supports local issuing
functions, and can store information on 256 access cards.
Auto uploads captured pictures to an FTP server or the
client while unlocking the door.
DS-KV8x02-IM Series Door Stations can integrate with an
NVR, sending alarm notifications to the NVR, and supports
recording and playback in the NVR.
Available Models:
DS-KV8102-IM: 1-channel
DS-KV8202-IM: 2-channel
DS-KV8402-IM: 4-channel










Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 05227NA
Typical Application Specifications
















































Dimensions Accessories


DS-KV8102-IM DS-KV8202-IM DS-KV8402-IM
System
Processor High-performance embedded SOC processor
Operating System Embedded Linux operating system
Video
Camera CMOS low illumination 1.3 MP HD color camera
Video Compression Standard H.264
Resolution 1280 x 720
Video Frame Rate 25 fps
Audio
Audio Input Built-in omnidirectional microphone
Audio Output Built-in loudspeaker
Audio Compression Standard G.711 U
Audio Compression Rate 64 Kbps
Audio Quality Noise suppression and echo cancellation
Access Control
Internal Card Reader Built-in IC card reader
Exit Button Exit button for opening the door
Door Magnetic Detection Detects door magnetic status
Light Supplement
Light Supplement Mode IR supplement
Network
Ethernet 10/100 Mbps self-adaptive Ethernet
Network Protocol TCP/IP, RTSP
Alarm
Alarm Input Door magnetic alarm, tampering alarm
Device Interfaces
Network Interface 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
RS-485 1 RS-485 half-duplex port
I/O Input 4
I/O Output 1
General
Indoor Station Access Amount 1 2 4
Material Aluminum alloy
Power Supply
24 VDC, power over network cable (KAD606-P)
12 VDC
Power Consumption ≤12 W
Working Temperature -40° to 158° F (-40° to +70° C)
Working Humidity 10% to 90%
IP Protection Level IP65
Dimensions (L x W x H) 7.17" x 3.94" x 1.30" (182 mm x 100 mm x 33 mm)
Certifications
CE, FCC, UL 60950-1, IC, C-TICK, ROHS, REACH,
WEEE

DS-KAB02
Protective Shield
