HIKVISION

DS-KIS203  Video Door Phone    Key Features  Door Station   Self-adaptive IR supplement   One-touch calling   Pinhole camera with 720 x 576 @ 25 fps   Unlock controlling  Indoor Station   Hands-free video intercom communication   Supports monitoring the door station and the external analog camera   Remote unlocking   Convenient installation and easy operation  Typical Application        Door Station  Indoor Station 2  Indoor Station 3  Indoor Station 1  Analog Camera 3  Analog Camera 2  Analog Camera 1  Electric Lock  Four-Core Cable    Block to BNC Cable  Electric Lock  Connection Cable                  Video Door Phone Model DS-KIS203  Door Station (DS-KB2421-IM)  Video Parameters  Camera 1/4" CMOS  Resolution 720 x 576  Video frame rate PAL: 25 fps  Audio parameters  Audio input Built-in Omnidirectional Microphone  Audio output Built-in Loudspeaker  Audio quality Noise Suppression  Light Supplement  Light supplement mode Photosensitive IR Supplement, IR Range: 2 Meters  Device interfaces  Four-wire interface  1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KIS203T  Four-Wire Analog Bundle        Key Feature  * Water Proof Analog Kit for villa or house, only one call  button  * Kit including DS-KB2421T-IM and DS-KH2220, 5-meter  4-wire cable, and other accessories  * European power supply adaptor included (please mark  for other standards when you order)    Specification  Door station  Resolution 1920 x 1080  Lens 1/2.7" CMOS  FOV Horizontal: 66.2°，Vertical: 37.2°  Door station  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Door station  I/O output 1 relay output  Four-wire  1-ch video input, 1-ch audio input/output,  1-ch power supply, 1-ch grounding  Door station  Power supply 12 VDC  Power  consumption  Max. 5W  Working  temperature  -10° C to + 55° C (14° F to 131° F)  Working  humidity  10% to 90%  Dimensions 128 mm x 42 mm x 24.8 mm  Indoor station  Operation  method  Physical button  Type 7-inch colorful TFT LCD  Resolution 800 x 480  Indoor station  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio quality Noise suppression and echo cancellation  Indoor sta...

Warranty: 24 mon.

Datasheet

DS-KIS204  Video Door Phone    Key Features  Door Station   Self-adaptive IR supplement   One-touch calling   Pinhole camera with 720 x 576 @ 25 fps   Unlock controlling  Indoor Station   Hands-free video intercom communication   Supports monitoring the door station and the external analog camera   Supports image capture (Max. 200) and overwrite when exceed 200   Supports captured image playback   Remote unlocking   Convenient installation and easy operation  Typical Application        Door Station  Indoor Station 2  Indoor Station 3  Indoor Station 1  Analog Camera 3  Analog Camera 2  Analog Camera 1    Lock  Four-Core Cable    Block to BNC Cable  Electric Lock  Connection Cable                        Video Door Phone Model DS-KIS204  Door Station (DS-KB2411-IM)  Video Parameters  Camera 1/4" CMOS  Resolution 720 x 576  Video frame rate PAL: 25 fps  Audio parameters  Audio input Built-in Omnidirectional Microphone  Audio output Built-in Loudspeaker  Audio quality Noise Suppression and Echo Cancellation  Light Supplement  Light supplement mode Photosensitive IR Supple...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS KIS  V I B    K F    Door S     V function   A function   I M   C  •S IR   HD   N R   H   L illumination   R R R    Indoor S     H with the door   R   S   R R   R FTF LCD R 800 x 480  •C R R buttons   N R   H      S    Indoor S  ModelDS KH WL    S  PHR P E SOC P  O Embedded Linux O S    D  D IR C TFT LCD  D 800 x 480  O RC TR S PR Button  O Flattened UI O I    A  A B O MR  Audio outputB L  A    G.711 U    A K  Audio qualityN S ER Cancellation    N  ER M SA ER  N TCP IP RTSP  A Alarm input2-ch Alarm Input Sensor    D  N RJ M SA ER I  RS RS H D P  I/O output1    G  M256 M    P   VDC P O N C DS KAD DS KAD  12 VDC  P ≤10 W  W C A C F F  W R A A  Dimensions(L x W x H)217 mm x 142 mm x 26 mm (8.5" x 5.6" x 1.0")  CFCC IC CE C TICK ROHS REACH WEEE  Door S  ModelDS KV IM    S  PHR P E SOC P  O Embedded Linux O S    V  CCMOS L Illumination MP HD C C

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

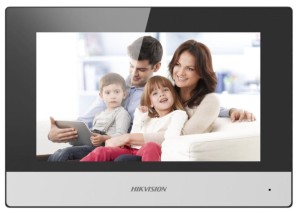

DS-KIS602  Video Intercom Bundle    Key Feature    Indoor Station    • UI V2.0: User friendly design  • 7-inch colorful touch screen with resolution 1024 x 600  • Standard PoE  • Stores messages and captured pictures in the TF card  • Remote unlocking via the client software or the mobile client  • Views live videos of door stations and linked cameras  • Supports wireless network    Door Station    • 2 MP HD video intercom function  • Access control function  • Noise suppression and echo cancellation  • H.264 video compression  • Low illumination  • Tampering alarm  • Fisheye camera with IR supplement light  • Supports sub-modules'access (max. 8)  • Nametag customization  • Easy to and extend      Specifications    Indoor Station  ModelDS-KH6320-WTE1    System  Memory128 MB  Flash32 MB  Operation systemEmbedded Linux operation system    Display  Display screen7-inch colorful TFT LCD  Display resloution1024 x 600  Operation methodCapacitive touch screen    Audio  Audio inputBuilt-in omnidirectional microphone  Audio outputBuilt-in loudspeaker  Audio compression standardG.711 U  Audio compression rate64 Kbps    Audio quality  Noise...

Warning! Product withdrawn from production!

Replacement product: DS-KIS602(B)

Replacement product code: 305303906

Warranty: 24 mon.

Datasheet

DS-KIS603-P  Video Intercom Villa Door Station Bundle      Key Feature  Villa Door Station  * Standard PoE  * 2 MP HD camera  * Noise suppression and echo cancellation  * Low illumination  * Access control functions  * Tamper-proof  * Configuration remotely via Web  Network Indoor Station  * 7-inch colorful touch screen with resolution 1024 x 600  * Standard PoE  * Stores messages and captured pictures in the TF card  * Remote unlocking via the client software or the mobile  client  * Views live videos of door stations and linked cameras  * Supports wireless network  Approval  Villa Door Station  CE-EMC  a. EN 55032:2015  b. EN 61000-3-2:2014  c. EN 61000-3-3:2013  d. EN 50130-4:2011 +A1:2014  CE-LVD  EN 60950-1:2006 + A11:2009 + A1:2010 +  A12:2011 + A2:2013  CB  IEC 60950-1:2005 (Second Edition) + Am 1:2009  + Am 2:2013  FCC-SDOC 47 CFR Part 15, Subpart B  C-  TICK(EMC)  AS/NZS CISPR 32:2015  UL  UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,  Information Technology Equipment – Safety –  Part 1: General Requirements  ROHS 2011/65/EU  REACH Regulation (EC) No 1907/2006  WEEE 2012/19/EU    Network Indoo...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KIS603-P  Video Intercom Villa Door Station Bundle      Key Feature  Villa Door Station  * Standard PoE  * 2 MP HD camera  * Noise suppression and echo cancellation  * Low illumination  * Access control functions  * Tamper-proof  * Configuration remotely via Web  Network Indoor Station  * 7-inch colorful touch screen with resolution 1024 x 600  * Standard PoE  * Stores messages and captured pictures in the TF card  * Remote unlocking via the client software or the mobile  client  * Views live videos of door stations and linked cameras  * Supports wireless network  Approval  Villa Door Station  CE-EMC  a. EN 55032:2015  b. EN 61000-3-2:2014  c. EN 61000-3-3:2013  d. EN 50130-4:2011 +A1:2014  CE-LVD  EN 60950-1:2006 + A11:2009 + A1:2010 +  A12:2011 + A2:2013  CB  IEC 60950-1:2005 (Second Edition) + Am 1:2009  + Am 2:2013  FCC-SDOC 47 CFR Part 15, Subpart B  C-  TICK(EMC)  AS/NZS CISPR 32:2015  UL  UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,  Information Technology Equipment – Safety –  Part 1: General Requirements  ROHS 2011/65/EU  REACH Regulation (EC) No 1907/2006  WEEE 2012/19/EU    Network Indoo...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KIS604-S  Video Intercom Villa Door Station Bundle      Key Feature  Villa Door Station  * Standard PoE  * 2 MP HD camera  * Noise suppression and echo cancellation  * Low illumination  * Tamper-proof  * Configuration remotely via Web  * 2.4 GHz Wi-Fi  * Protection level: IK08  Network Indoor Station  * 7-inch colorful touch screen with resolution 1024 x 600  * Standard PoE  * Stores messages and captured pictures in the TF card  * Remote unlocking via the client software or the mobile  client  * Views live videos of door stations and linked cameras  Approval  Villa Door Station  CE-EMC  a. EN 55032:2015  b. EN 61000-3-2:2014  c. EN 61000-3-3:2013  d. EN 50130-4:2011 +A1:2014  CE-LVD  EN 60950-1:2006 + A11:2009 + A1:2010 +  A12:2011 + A2:2013  CB  IEC 60950-1:2005 (Second Edition) + Am 1:2009  + Am 2:2013  FCC-SDOC 47 CFR Part 15, Subpart B  C-  TICK(EMC)  AS/NZS CISPR 32:2015  UL  UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,  Information Technology Equipment – Safety –  Part 1: General Requirements  ROHS 2011/65/EU  REACH Regulation (EC) No 1907/2006  WEEE 2012/19/EU    Network Indoor Station

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KIS604-S  Video Intercom Villa Door Station Bundle      Key Feature  Villa Door Station  * Standard PoE  * 2 MP HD camera  * Noise suppression and echo cancellation  * Low illumination  * Tamper-proof  * Configuration remotely via Web  * 2.4 GHz Wi-Fi  * Protection level: IK08  Network Indoor Station  * 7-inch colorful touch screen with resolution 1024 x 600  * Standard PoE  * Stores messages and captured pictures in the TF card  * Remote unlocking via the client software or the mobile  client  * Views live videos of door stations and linked cameras  Approval  Villa Door Station  CE-EMC  a. EN 55032:2015  b. EN 61000-3-2:2014  c. EN 61000-3-3:2013  d. EN 50130-4:2011 +A1:2014  CE-LVD  EN 60950-1:2006 + A11:2009 + A1:2010 +  A12:2011 + A2:2013  CB  IEC 60950-1:2005 (Second Edition) + Am 1:2009  + Am 2:2013  FCC-SDOC 47 CFR Part 15, Subpart B  C-  TICK(EMC)  AS/NZS CISPR 32:2015  UL  UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,  Information Technology Equipment – Safety –  Part 1: General Requirements  ROHS 2011/65/EU  REACH Regulation (EC) No 1907/2006  WEEE 2012/19/EU    Network Indoor Station

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

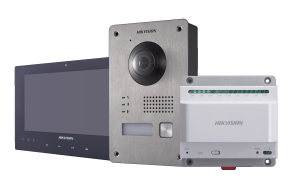

DS-KIS701  Two-Wire Video Intercom Bundle  Key Features  Door Station  • Video intercom function  • Access control function  • HD video surveillance with high performance CMOS  •Low illumination 2MP HD colorful 155° fish-eye camera  •Self-adaptive IR supplement  • Tampering alarm and door magnetic alarm supported  •Noise suppression and echo cancellation  • Remote upgrade via client and batch configuration function  • Supports surface mounting and flush mounting  Indoor Station  • Hands-free audiovisual communication with the door station and the master station in the intercom system  •Supports monitoring door stations and external cameras  •Supports auto-answering and no-disturbing mode  • Noise suppression and echo cancellation  • Supports 8-ch zone alarm input  •Supports panic call  • Remote unlocking via the client or the app  • Community notice supported  •Convenient installation and easy operation  Video/Audio Distributor    • Nine two-wire interface to support nine two-wire indoor stations  • One 10/100M self-adaptive network interface to support external switch  • 24 VDC power supply and communications between door stations and indoor station  • Industrial design an...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KIS703-P  Video Intercom Two-Wire Bundle      Key Feature  Two-Wire Indoor Station  * Easy, Cost-Efficient Installation  * 7 inch Touch-Screen, User Friendly Interface, Plug & Play  * Receives Video Call And Unlocks On Mobile App Anywhere,  Anytime  Villa Door Station  * High quality imaging with 2 MP resolution  * Easy, Cost-Efficient Installation  * User Friendly Design, Name tag, Communication status LED  indicator  * IP65 water resistant, preventing water ingress for outdoor  use        Specification  Two-Wire Villa Door Station  System parameters  Operation  system  Embedded Linux operation system  Operation  method  Single-button  Flash 32 MB  RAM 256 M  Video Parameters  Camera 2MP HD camera  Night vision Low illumination IR supplement mode:3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 144° Vertical: 95°  Video  compression  standard  H.264  Stream  Main stream: 1080p@30fps, 720p@30fps  Sub stream: 4CIF  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion  detection  Support  Anti-flicker  frequency  50 Hz, 60 Hz ...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KIS703-P  Video Intercom Two-Wire Bundle      Key Feature  Two-Wire Indoor Station  * Easy, Cost-Efficient Installation  * 7 inch Touch-Screen, User Friendly Interface, Plug & Play  * Receives Video Call And Unlocks On Mobile App Anywhere,  Anytime  Villa Door Station  * High quality imaging with 2 MP resolution  * Easy, Cost-Efficient Installation  * User Friendly Design, Name tag, Communication status LED  indicator  * IP65 water resistant, preventing water ingress for outdoor  use        Specification  Two-Wire Villa Door Station  System parameters  Operation  system  Embedded Linux operation system  Operation  method  Single-button  Flash 32 MB  RAM 256 M  Video Parameters  Camera 2MP HD camera  Night vision Low illumination IR supplement mode:3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 144° Vertical: 95°  Video  compression  standard  H.264  Stream  Main stream: 1080p@30fps, 720p@30fps  Sub stream: 4CIF  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion  detection  Support  Anti-flicker  frequency  50 Hz, 60 Hz ...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KM8301  Video Intercom Master Station    Key Features   Glass panel and aluminum-alloy bracket   Supports video intercom   Supports live view of door stations and IP camera   Noise suppression and echo cancellation   Alarm processing function   Supports remote unlocking door function   Supports hands-free mode   Supports video intercom between master stations   (Optional) Suitable for wall mounting      Typical Application  Switch  Client Software  Center Master Station  (Master Station)  Network Cable  Optical Fiber  Door Station  Resident 2       Building      IPC   Master Station  in Guard's Room  Outer Door Station  Switch  Resident 2    One Resident      RS-485    Resident 1  Indoor  Extension 1  Indoor  Extension 2  Resident 1  Video/Audio  Distributor  Video/Audio  Distributor      Card  Reader      Card  Reader    Wi-Fi  App   LAN    nF  1F  *  *  *                      Model DS-KM8301  System  parameters  Processor High-Performance Embedded SOC Processor  Operation system Embe...

Warning! Product withdrawn from production!

Replacement product: DS-KM9503

Replacement product code: 305302400

Warranty: 24 mon.

Datasheet

DS-KV6113-PE1  Single-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web          Specifications    Model DS-KV6113-PE1  System parameters  Flash 32 M, 16 M  RAM 256M  Operation method Single-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate 64 Kbps  Audio quarity  Noise supp...

Warning! Product withdrawn from production!

Replacement product: DS-KB6403-WIP/DS-KV8102-IP/DS-KV8102-VP

Warranty: 24 mon.

Datasheet

DS-KV6113-PE1  Single-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web          Specifications    Model DS-KV6113-PE1  System parameters  Flash 32 M, 16 M  RAM 256M  Operation method Single-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate 64 Kbps  Audio quarity  Noise supp...

Warning! Product withdrawn from production!

Replacement product: DS-KV6113-PE1(C)

Replacement product code: 305303878

Warranty: 24 mon.

Datasheet

DS-KV6113-WPE1  Single-Button Villa Door Station          Key Feature  ● Standard PoE  ● 2 MP HD camera  ● Noise suppression and echo cancellation  ● Low illumination  ● Access control functions  ● Tamper-proof  ● Configuration remotely via Web  ● 2.4 GHz Wi-Fi          Specifications    Model DS-KV6113-WPE1  System parameters  Flash 32 M, 16 M  RAM 256M  Operation method Single-button  Operation system Embedded Linux operation system  Video parameters  Camera 2MP HD camera  Night vision  Low illumination  IR supplement mode: 3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 129 °, Vertical: 75 °  Video compression standard H.264  Stream  Main stream: 1080p@30fps,  720p@25fps  Sub stream: D1@25fps  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion detection Support  Anti-flicker frequency 50 Hz, 60 Hz  Audio parameters  Audio intercom Two-way audio communication  Audio input Built-in omnidirectional microphone  Audio output Built-in loudspeaker  Audio compression standard G.711 U  Audio compression rate 64 Kbps  Audio ...

Warning! Product withdrawn from production!

Replacement product: DS-KV6113-WPE1(B)

Replacement product code: 305302342

Warranty: 24 mon.

Datasheet
