DS-KM8301
Video Intercom Master Station

Key Features
 Glass panel and aluminum-alloy bracket
 Supports video intercom
 Supports live view of door stations and IP camera
 Noise suppression and echo cancellation
 Alarm processing function
 Supports remote unlocking door function
 Supports hands-free mode
 Supports video intercom between master stations
 (Optional) Suitable for wall mounting


Typical Application
Switch
Client Software
Center Master Station
(Master Station)
Network Cable
Optical Fiber
Door Station
Resident 2


Building


IPC
Master Station
in Guard's Room
Outer Door Station
Switch
Resident 2

One Resident


RS-485

Resident 1
Indoor
Extension 1
Indoor
Extension 2
Resident 1
Video/Audio
Distributor
Video/Audio
Distributor


Card
Reader


Card
Reader

Wi-Fi
App
LAN

nF
1F
*
*
*










Model DS-KM8301
System
parameters
Processor High-Performance Embedded SOC Processor
Operation system Embedded Linux Operation System
Video
parameters
Camera CMOS 0.3 MP
Video compression
standard
H.264
Resolution 1280 x 720, 704 x 576
Video frame rate 25 fps, 12.5 fps
Display
parameters
Display screen 7-Inch Colorful TFT LCD
Display resolution 1024 x 600
Operation method Capacitive Touch Screen, Touch Key, Physical Button
Operation
interface
Flattened UI Operation Interface
Audio
parameters
Audio input Built-in Omnidirectional Microphone + External Handset
Audio output Built-in Loudspeaker + External Handset
Audio compression
standard
G.711 U
Audio compression
rate
64 Kbps
Audio quality Noise Suppression and Echo Cancellation
Network
parameters
Ethernet 10/100/1000 Mbps Self-Adaptive Ethernet
Network protocol TCP/IP, RTSP
Device
interfaces
Network interface 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
RS-485 2 RS-485 Half-Duplex Port
USB 1 USB Interface for Inserting U-Disk
I/O input 4 On-Off Input
I/O output 2 On-Off Output, 2 Relay Output
General
Material Plastic
Power supply 12 VDC
Power
consumption
≤10 W
Working
temperature
-10° C to + 55° C (14° F to 131° F)
Working humidity 10% to 90%
Dimensions
(L x W x H)
436 mm x 215 mm x 67 mm (17.2" x8.5" x 2.6")
Certification FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Specifications




Index Description Index Description
1 Phone 9 Accept/Decline Button
2 Built-in Camera 10 Unlock Button
3 LCD Display Screen 11 Speaker Button
4 Dial Keypad 12 12 VDC Power Supply
5 Information Indicator 13 Terminals
6 Alarm Indicator 14 USB Interface
7 Alarm Indicator 15 Network Interface
8 Microphone

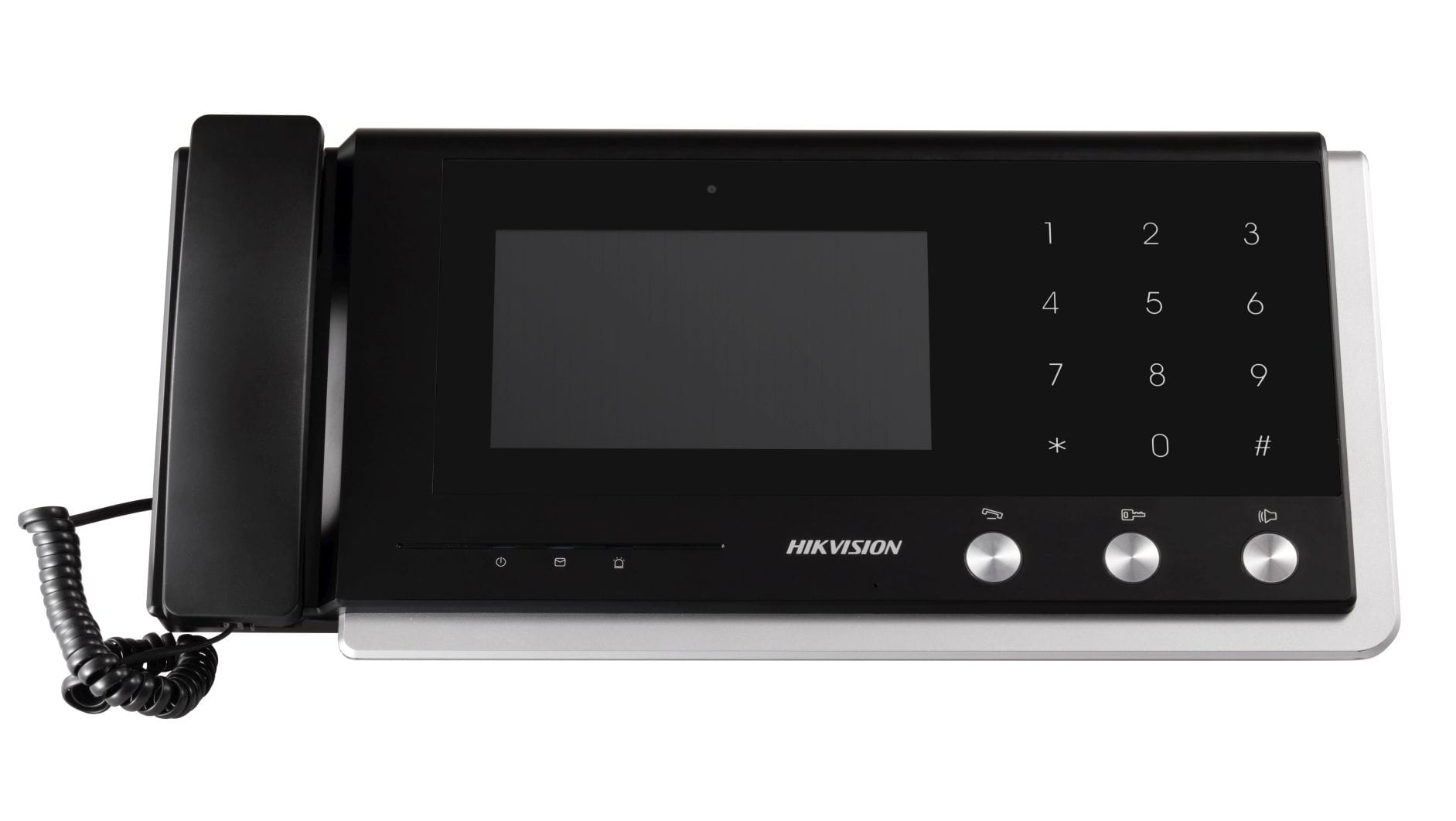

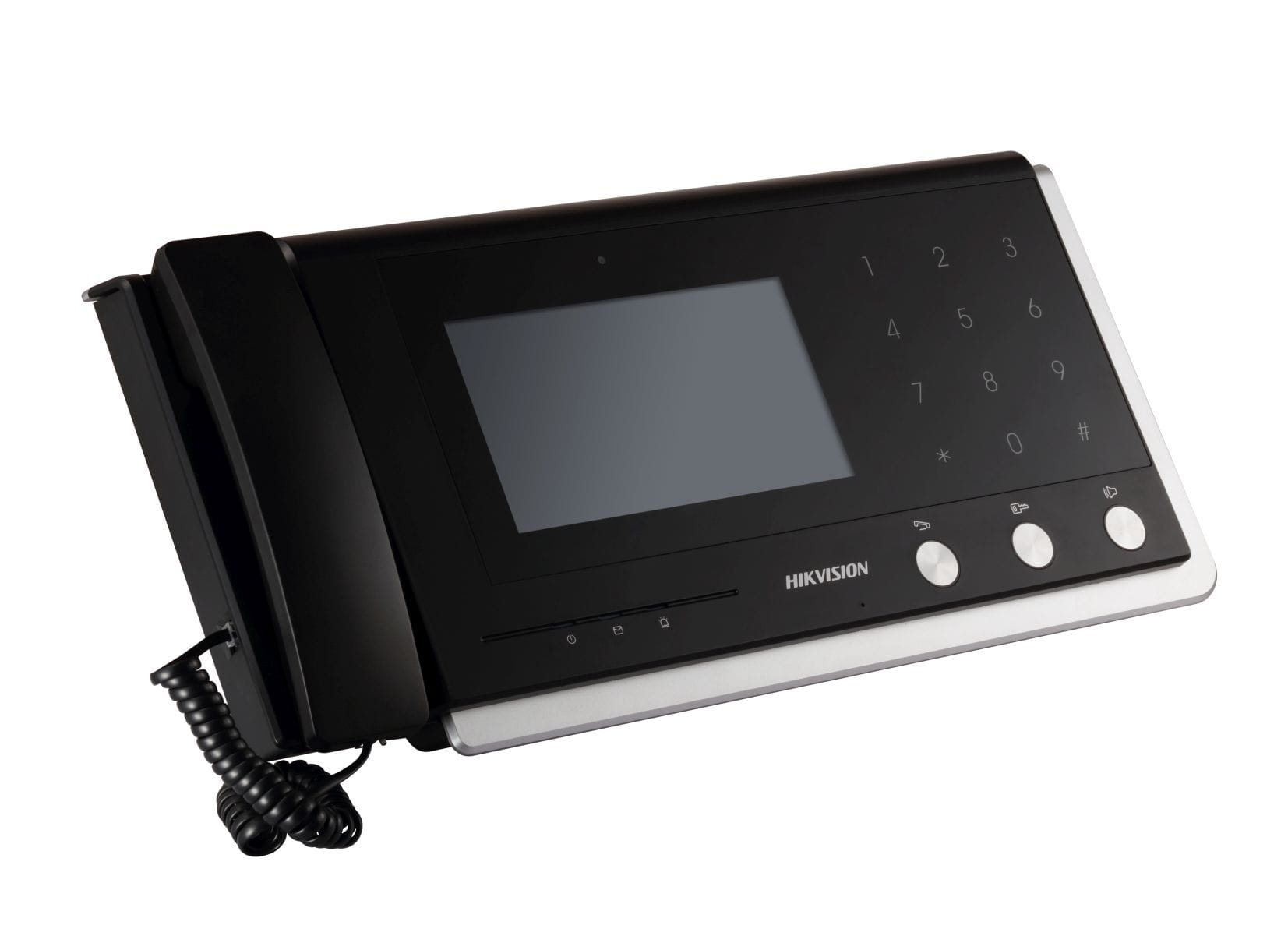

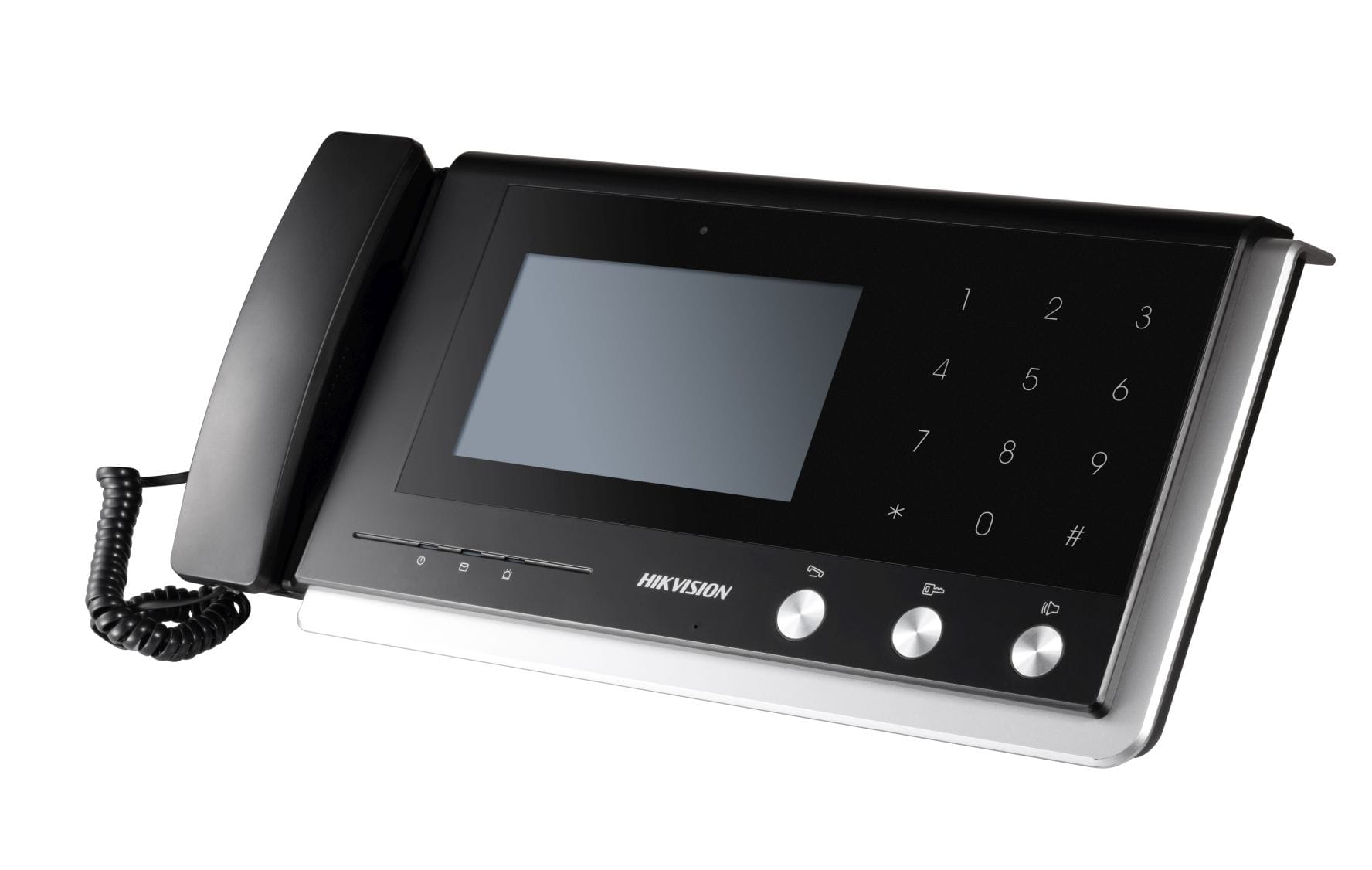

Appearance and Interfaces

0104001060815
Available Model
DS-KM8301
