HIKVISION

DS-KABD9613-G  Junction Box    Key Feature  * Contains installation accessories of DS-KD9613 series door  stations, including junction box, screws, etc.  * Material of the junction box: SECC  * Supports flush mounting with junction box  Specification  Parameters  Material SECC  Working  temperature  -40° C to +60° C(-40° F to 140° F)  Working  humidity  10% to 95%  Dimension  404.3 x 169.8 x 40 mm (15.92" x 6.69" x  1.57")  Available Model  DS-KABD9613-G            Dimension...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KAD606 is an integrated Video/Audio distributor  supporting network cable power supply. It has a  built-in voltage-stabilized power and eight 10/100M  LAN interfaces, six of which support powering  through network cables. It is suitable for internet  connection of all-digital video intercom in residence  communities.          DS-KAD606         Built-in 24V DC voltage-stabilized switching mode power supply   Eight RJ45 interfaces, including six adaptive 10/100M LAN interfaces supporting network cable  powering and two adaptive 10/100M cascading LAN interfaces   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwarding function   VLAN technique   Over 1000,000h mean time between failure   Operating temperature range: from -30° C to 70° C   Suitable for wall mounting    Video/Audio Distributor    MAIN FEATURES    DS-KAD606    AVAILABLE MODELS      Spec of DS-KAD606 Video/Audio Distributor www.hikvision.com  2                            Model  Parameters  DS-KAD606  Network  Parameters

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

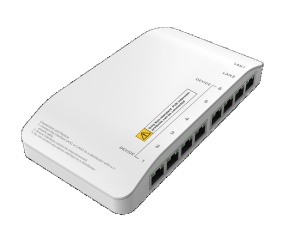

DS-KAD606-N  Video/Audio Distributor    Key Features   8 RJ-45 interfaces, including 6 adaptive 10/100 Mbps LAN interfaces  supporting network cable powering and 2 adaptive 10/100 Mbps cascading LAN  interfaces   Up to 8 distributors can be cascaded   6 adaptive 10/100 Mbps LAN interfaces supports providing 24 VDC for video  intercom devices (* The power adapter is not included in the package.)   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwarding function    Typical Application  Client Software  Center Master Station  (Master Station)  Network Cable  Door Station  Resident 2      IPC   Master Station  in Guard's Room  Outer Door Station  Resident 2      RS-485  Resident 1  Resident 1  Video/Audio  Distributor      Card  Reader    Card  Reader    1F      Resident 2  Resident 1    Resident 2  Resident 1    Building  2F  3F  4F  Video/Audio  Distributor   LAN                        Model DS-KAD606-N  Network  parameters  Interface number Eight 10/100 Mbps Interfaces  Interface type RJ-45, Full/Half-Duplex, MDI/MDI-X Self...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

DS-KAD606-P  Video/Audio Distributor    Key Features   8 RJ-45 interfaces, including 6 adaptive 10/100 Mbps LAN interfaces  supporting network cable powering and 2 adaptive 10/100 Mbps cascading LAN  interfaces   6 adaptive 10/100 Mbps LAN interfaces supports providing 24 VDC for video  intercom devices   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwarding function   Over 1000,000 h mean time between failure  Note:  24V DC power adapter is included in the package.  Typical Application  Client Software  Center Master Station  (Master Station)  Network Cable  Optical Fiber  Door Station  Resident 2      IPC   Master Station  in Guard's Room  Outer Door Station  Resident 2      RS-485  Resident 1  Resident 1  Video/Audio  Distributor      Card  Reader    Card  Reader    1F      Resident 2  Resident 1    Resident 2  Resident 1    Building  2F  3F  4F  Video/Audio  Distributor   LAN                          Model DS-KAD606-P  Network  parameters  Interface number Eight 10/100 Mbps Interfaces  Interface type RJ-45...

Warranty: 24 mon.

Datasheet

All IP Video Intercom Master Station  DS-KAD612 is an integratedvideo/audiodistributor  supportingnetworkcable power supply.It has a  built-in voltage-stabilized power and  sixteen10M/100M LAN interfaces, twelve of which  support powering through network cables. It is  suitable for internet connection ofall-digital  videointercom in residence communities.          DS-KAD612         Built-in 24V DC voltage-stabilized switching mode power supply   Sixteen RJ45 interfaces, including twelve adaptive 10M/100M LAN interfaces supporting  network cable powering and fouradaptive 10M/100M cascading LAN interfaces   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwardingfunction   VLAN technique   Over 1000,000 h mean time between failure   Operating temperature range: from-30°C to 70°C   Suitable for wall mounting    Video/Audio Distributor  MAIN FEATURES  DS-KAD612  AVAILABLE MODELS      Spec of DS-KAD612 Video/Audio Distributor www.hikvision.com  2                  Model  Parameters  DS-KAD612    Network  Parameters  Interface Number Sixteen 10M/100M Interfaces  Interface Type  RJ45...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

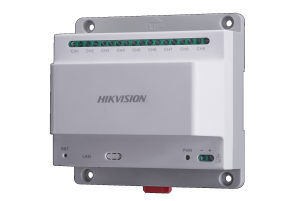

DS-KAD709  Two-Wire Controller  Key Features   Supports 100-meter transmission (18 AG/17 WAG)   Supports 30-meter transmission (20 WAG)   Supports providing power supply for 1 door station and 1 indoor stations  simultaneously      Typical Application    Indoor Station 1  Indoor Station2  Indoor Station3  Indoor Station4Door Station  Controller      Draft                Model DS-KAD609-E  General  Power supply 24 VDC  Power consumption 60 W  Interface  1 RJ-45 Interface  8 Two-Wire Interfaces  Working  temperature -10° C to +55° C (14° F to 131° F)  Working humidity 10% to 90%  Installation Wall Mounting  Dimensions 110.2*107.6*66（mm）                                                        Index Description Index Description  1 Reset Button 4 1 RJ-45 Interface  2 Power Indicator 5 Power Supply Interface  3 9 Two-Wire Interface  Specifications  Appearance          Draft              0100001070511      Draft...

Warning! Product withdrawn from production!

Replacement product: DS-KAD706

Replacement product code: 305301460

Warranty: 24 mon.

Datasheet

DS-KAW150-2N  Power Supply    Available Model  DS-KAW150-2N    Features   Short circuit protection, over load protection, and over power  voltage protection   Natural air cooling   LED power indicator   105 °C long life electrolytic capacitor   5 seconds 300VAC surge voltage input tolerance   Working Temperature: 70 °C   Passes 5G vibration test    Specifications  Parameter Model DS-KAW150-2N  Input voltage 100 VAC to 240 VAC  Output voltage 24 VDC  Output current 6.25 A  Output power 150 W  Noise and ripple < 150 mVpp @ 25 °C  Voltage adjustment  range 23 VDC to 25 VDC  Cooling system Convection  Working temperature  Operating: -10 °C to +70 °C (14 °F to 158 °F)  Storage: -25 °C to +85 °C (-13 °F to 185 °F)  Working humidity < 95% (No Condensation)  Dimension (L x W x D) 178 mm x 97 mm x 38 mm (7.01" x 3.82" x 1.50")  Weight 0.54 kg                Dimensions        20171120...

Warranty: 24 mon.

Datasheet

DS-KAW50-1         Short circuit protection, over load protection, and over power voltage protection   Mean Time Between Failure > 200,000 hrs   Natural air cooling   LED power indicator   100% full load aging   105℃ long life electrolytic capacitor   5 seconds 300VAC surge voltage input tolerance   Working Temperature: 70℃   Passes 5G vibration test            MAIN FEATURES    DS-KAW50-1    Power Supply for Door Station    Installation Dimension    MODEL  S      DS-KAW50-1 Power Supply for Door Station www.hikvision.com  2          Model DS-KAW50-1  Network Parameters  Input Voltage 100-240VAC  Output Voltage 12VDC  Output Current 4.17A  Output Power 50W  Noise and Ripple < 150mVpp  Voltage Adjustment Range 11-14Vdc  General Information  Work Temperature -10℃℃  ＜          SPECIFICATION...

Warranty: 24 mon.

Datasheet

DS-KAW50-1N  Power Supply for Door Station    Available Model  DS-KAW50-1N    Features   Short Circuit protection, over load protection, and over power  voltage protection   MTBF (Mean Time Between Failure) > 200,000 hrs   Natural air cooling   LED power indicator   105° C long life electrolytic capacitor   5 seconds 300VAC surge voltage input tolerance   Working Temperature: 70° C   Passes 5G vibration test    Specifications  Parameter Model DS-KAW50-1N  Input voltage 100 VAC to 240 VAC  Output voltage 12 VDC  Output current 4.17 A  Output power 50 W  Noise and ripple < 150 mVpp @ 25° C  Voltage adjustment  range 11 VDC to 14 VDC  Cooling system Convection  Working temperature  Operating: -10° C to +70° C (14° F to 158° F)  Storage: -25° C to +85° C (-13° F to 185° F)  Working humidity < 95% (Non-condensing)  Dimension (L x W x D) 98 mm x 97 mm x 38 mm (3.86" x 3.82" x 1.50")  Weight 0.23 kg              Dimensions        20170517  S  C  R  E  W    P  R  O  T  R  U  S  I  O  N    L  E  N  G  T  H      L   <...

Warranty: 24 mon.

Datasheet

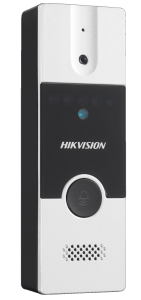

DS-KB2411-IM  Video Intercom Door Station    Key Features   Hands-free video intercom communication   Supports two door stations in the intercom system   Self-adaptive IR supplement (with photoresistor)   One-touch calling   Pinhole camera with 720 x 576 @ 25 fps   Unlock controlling   Anti-oxidant aluminium alloy   Wall mounting supported   Convenient installation with/without the junction box  Typical Application        Door Station  Indoor Station 2  Indoor Station 3  Indoor Station 1  Analog Camera 3  Analog Camera 2  Analog Camera 1    Electric Lock  Four-Core Cable    Block to BNC Cable  Electric Lock  Connection Cable                  Model DS-KB2411-IM  Video  parameters  Camera 1/4" CMOS  Resolution 720 x 576  Video frame rate PAL: 25 fps  Audio  parameters  Audio input Built-in Omnidirectional Microphone  Audio output Built-in Loudspeaker  Audio quality Noise Suppression and Echo Cancellation  Light  supplement  Light supplement  mode  Photosensitive IR Supplement, IR Range: 2 Meters  Device  interfaces  Four-wire interface  1 Four-Wire Interface...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet

 Hands-free video intercom communication   Supports two door stations in the intercom system   Self-adaptive IR supplement (with photoresistor)   One-touch calling   Pinhole camera with 720 x 576 @ 25 fps   Unlock controlling   Anti-oxidant zinc alloy   Vandal-resistant   Convenient installation   IP65       防爆等级      DS-KB2421-IM  Video Intercom Door Station    Key Features  Typical Application        Door Station  Indoor Station 2  Indoor Station 3  Indoor Station 1  Analog Camera 3  Analog Camera 2  Analog Camera 1  Electric Lock  Four-Core Cable    Block to BNC Cable  Electric Lock  Connection Cable                  Model DS-KB2421-IM  Video  parameters  Camera 1/4" CMOS  Resolution 720 x 576  Video frame rate PAL: 25 fps  Audio  parameters  Audio input Built-in Omnidirectional Microphone  Audio output Built-in Loudspeaker  Audio quality Noise Suppression  Light  supplement  Light supplement  mode  Photosensitive IR Supplement, IR Range: 2 Meters  Device  interfaces  Four-wire interface  1 Four-Wire Interface (1-ch Video Input,...

Warning! Product withdrawn from production!

Warranty: 24 mon.

Datasheet
