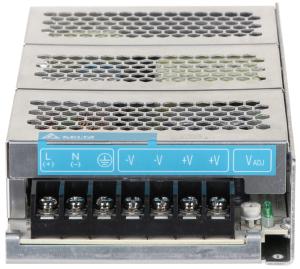

DS-KAW150-2N

DS-KAW150-2N  Power Supply    Available Model  DS-KAW150-2N    Features   Short circuit protection, over load protection, and over power  voltage protection   Natural air cooling   LED power indicator   105 °C long life electrolytic capacitor   5 seconds 300VAC surge voltage input tolerance   Working Temperature: 70 °C   Passes 5G vibration test    Specifications  Parameter Model DS-KAW150-2N  Input voltage 100 VAC to 240 VAC  Output voltage 24 VDC  Output current 6.25 A  Output power 150 W  Noise and ripple < 150 mVpp @ 25 °C  Voltage adjustment  range 23 VDC to 25 VDC  Cooling system Convection  Working temperature  Operating: -10 °C to +70 °C (14 °F to 158 °F)  Storage: -25 °C to +85 °C (-13 °F to 185 °F)  Working humidity < 95% (No Condensation)  Dimension (L x W x D) 178 mm x 97 mm x 38 mm (7.01" x 3.82" x 1.50")  Weight 0.54 kg                Dimensions        20171120...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

DS-KAW150-2N
Power Supply

Available Model
DS-KAW150-2N

Features
 Short circuit protection, over load protection, and over power
voltage protection
 Natural air cooling
 LED power indicator
 105 °C long life electrolytic capacitor
 5 seconds 300VAC surge voltage input tolerance
 Working Temperature: 70 °C
 Passes 5G vibration test

Specifications
Parameter Model DS-KAW150-2N
Input voltage 100 VAC to 240 VAC
Output voltage 24 VDC
Output current 6.25 A
Output power 150 W
Noise and ripple < 150 mVpp @ 25 °C
Voltage adjustment
range 23 VDC to 25 VDC
Cooling system Convection
Working temperature
Operating: -10 °C to +70 °C (14 °F to 158 °F)
Storage: -25 °C to +85 °C (-13 °F to 185 °F)
Working humidity < 95% (No Condensation)
Dimension (L x W x D) 178 mm x 97 mm x 38 mm (7.01" x 3.82" x 1.50")
Weight 0.54 kg







Dimensions



20171120
